Equipos y Productos: TurboRejillas: RetroFlow.

Características Generales

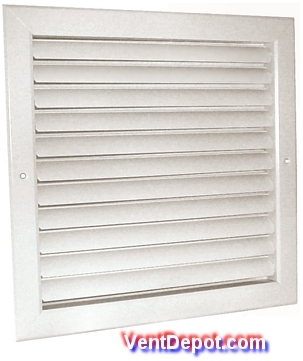

Esta TurboRejilla RetroFlow VentDepot, esta diseñada para montarse en pared o falso plafón.
Aletas fijas paralelas a la dimensión mayor .

La inclinación a 30° de las aletas reduce la vista al interior del ducto con excelente eficiencia.

Con un marco de 1" de ancho.

Acabado en pintura electrostática horneada o anodizado natural blanco dober.

Aplicaciones

Para uso en: Cualquier ramo industrial, comercial y residencial.
En sistemas de ventilación, aire acondicionado y aire lavado.

Garantía

1 (Un) año de Garantía, certificado por escrito, sujeto a las claúsulas.

Características Técnicas Especiíficas

Clave

Cuadrado

Rectangular

Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

RFW-001
--- --- 203x152 8x6 25 1 167 0.24 21x16x3

RFW-002
203x203 8x8 --- --- 25 1 222 0.32 21x21x3

RFW-003
--- --- 254x152 10x6 25 1 208 0.30 26x16x3

RFW-004
--- --- 254x203 10x8 25 1 278 0.40 26x21x3

RFW-005
254x254 10x10 --- --- 25 1 347 0.50 26x26x3

RFW-006
--- --- 304x152 12x6 25 1 250 0.36 31x16x3

RFW-007
--- --- 304x203 12x8 25 1 333 0.48 31x21x3

RFW-008
--- --- 304x254 12x10 25 1 416 0.60 31x26x3

RFW-009
304x304 12x12 --- --- 25 1 500 0.72 31x31x3

RFW-010
--- --- 355x152 14x6 25 1 291 0.42 36x16x3

RFW-011
--- --- 355x203 14x8 25 1 389 0.56 36x21x3

RFW-012
--- --- 355x254 14x10 25 1 486 0.70 36x26x3

RFW-013
--- --- 355x304 14x12 25 1 583 0.84 36x31x3

RFW-014
355x355 14x14 --- --- 25 1 680 0.98 36x36x3

RFW-015
--- --- 406x152 16x6 25 1 333 0.48 41x16x3

RFW-016
--- --- 406x203 16x8 25 1 444 0.64 41x21x3

RFW-017
--- --- 406x254 16x10 25 1 555 0.80 41x26x3

RFW-018
--- --- 406x304 16x12 25 1 666 0.96 41x31x3

RFW-019
--- --- 406x355 16x14 25 1 777 1.12 41x36x3

RFW-020
406x406 16x16 --- --- 25 1 888 1.15 41x41x3

RFW-021
--- --- 457x152 18x6 25 1 375 0.54 46x16x3

RFW-022
--- --- 457x203 18x8 25 1 500 0.72 46x21x3

RFW-023
--- --- 457x254 18x10 25 1 624 0.90 46x26x3

RFW-024
--- --- 457x304 18x12 25 1 749 1.08 46x31x3

RFW-025
--- --- 457x355 18x14 25 1 874 1.26 46x36x3

Clave

Cuadrado

Rectangular

Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

RFW-026
--- --- 457x406 18x16 25 1 999 1.28 46x41x3

RFW-027
457x457 18x18 --- --- 25 1 1124 1.44 46x46x3

RFW-028
--- --- 508x152 20x6 25 1 416 0.60 51x16x3

RFW-029
--- --- 508x203 20x8 25 1 555 0.80 51x21x3

RFW-030
--- --- 508x254 20x10 25 1 694 1.00 51x26x3

RFW-031
--- --- 508x304 20x12 25 1 833 2.00 51x31x3

RFW-032
--- --- 508x355 20x14 25 1 971 1.40 51x36x3

RFW-033
--- --- 508x406 20x16 25 1 1110 1.60 51x41x3

RFW-034
--- --- 508x457 20x18 25 1 1249 6.00 51x46x3

RFW-035
508x508 20x20 --- --- 25 1 1388 1.80 51x51x3

RFW-036
--- --- 558x152 22x6 25 1 458 0.66 56x16x3

RFW-037
--- --- 558x203 22x8 25 1 611 0.88 56x21x3

RFW-038
--- --- 558x254 22x10 25 1 763 1.10 56x26x3

RFW-039
--- --- 558x304 22x12 25 1 916 1.32 56x31x3

RFW-040
--- --- 558x355 22x14 25 1 1068 1.54 56x36x3

RFW-041
--- --- 558x406 22x16 25 1 1221 1.76 56x41x3

RFW-042
--- --- 558x457 22x18 25 1 1374 1.98 56x46x3

RFW-043
--- --- 558x508 22x20 25 1 1526 2.00 56x51x3

RFW-044
558x558 22x22 --- --- 25 1 1679 2.20 56x56x3

RFW-045
--- --- 609x152 24x6 25 1 500 0.72 61x16x3

RFW-046
--- --- 609x203 24x8 25 1 666 0.96 61x21x3

RFW-047
--- --- 609x254 24x10 25 1 833 1.30 61x26x3

RFW-048
--- --- 609x304 24x12 25 1 999 1.44 61x31x3

RFW-049
--- --- 609x355 24x14 25 1 1166 1.68 61x36x3

RFW-050
--- --- 609x406 24x16 25 1 1332 1.92 61x41x3

Clave

Cuadrado

Rectangular

Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

RFW-051
--- --- 609x457 24x18 25 1 1499 2.16 61x46x3

RFW-052
--- --- 609x508 24x20 25 1 1665 2.40 61x51x3

RFW-053
--- --- 609x558 24x22 25 1 1832 2.50 61x56x3

RFW-054
609x609 24x24 --- --- 25 1 1998 2.64 61x61x3

RFW-055
--- --- 660x152 26x6 25 1 541 0.78 67x16x3

RFW-056
--- --- 660x203 26x8 25 1 722 1.04 67x21x3

RFW-057
--- --- 660x254 26x10 25 1 902 1.30 67x26x3

RFW-058
--- --- 660x304 26x12 25 1 1082 1.56 67x31x3

RFW-059
--- --- 660x355 26x14 25 1 1263 1.82 67x36x3

RFW-060
--- --- 660x406 26x16 25 1 1443 2.08 67x41x3

RFW-061
--- --- 660x457 26x18 25 1 1623 2.34 67x46x3

RFW-062
--- --- 660x508 26x20 25 1 1804 2.60 67x51x3

RFW-063
--- --- 660x558 26x22 25 1 1984 2.86 67x56x3

RFW-064
--- --- 660x609 26x24 25 1 2165 2.89 67x61x3

RFW-065
660x660 26x26 --- --- 25 1 2345 3.12 67x67x3

RFW-066
--- --- 711x152 28x6 25 1 583 0.84 72x16x3

RFW-067
--- --- 711x203 28x8 25 1 777 1.12 72x21x3

RFW-068
--- --- 711x254 28x10 25 1 971 1.40 72x26x3

RFW-069
--- --- 711x304 28x12 25 1 1166 1.68 72x31x3

RFW-070
--- --- 711x355 28x14 25 1 1360 1.96 72x36x3

RFW-071
--- --- 711x406 28x16 25 1 1554 2.24 72x41x3

RFW-072
--- --- 711x457 28x18 25 1 1748 2.52 72x46x3

RFW-073

711x508 28x20 25 1 1943 2.80 72x51x3

RFW-074
--- --- 711x558 28x22 25 1 2137 3.08 72x56x3

RFW-075
--- --- 711x609 28x24 25 1 2331 3.36 72x61x3

Clave

Cuadrado

Rectangular

Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

RFW-076
--- --- 711x660 28x26 25 1 2525 6.39 72x67x3

RFW-077
711x711 28x28 --- --- 25 1 2720 3.64 72x72x3

RFW-078
--- --- 762x152 30x6 25 1 624 0.90 77x16x3

RFW-079
--- --- 762x203 30x8 25 1 833 1.20 77x21x3

RFW-080
--- --- 762x254 30x10 25 1 1041 1.50 77x26x3

RFW-081
--- --- 762x304 30x12 25 1 1249 1.80 77x31x3

RFW-082
--- --- 762x355 30x14 25 1 1457 2.10 77x36x3

RFW-083
--- --- 762x406 30x16 25 1 1665 2.40 77x41x3

RFW-084
--- --- 762x457 30x18 25 1 1873 2.70 77x46x3

RFW-085
--- --- 762x508 30x20 25 1 2081 3.00 77x51x3

RFW-086
--- --- 762x558 30x22 25 1 2289 3.30 77x56x3

RFW-087
--- --- 762x609 30x24 25 1 2498 3.60 77x61x3

RFW-088
--- --- 762x660 30x26 25 1 2706 3.90 77x67x3

RFW-089
--- --- 762x711 30x28 25 1 2914 4.00 77x72x3

RFW-090
762x762 30x30 --- --- 25 1 3227 4.30 77x77x3

RFW-091
--- --- 812x152 32x6 25 1 666 0.96 82x16x3

RFW-092
--- --- 812x203 32x8 25 1 888 1.28 82x21x3

RFW-093
--- --- 812x254 32x10 25 1 1110 1.60 82x26x3

RFW-094
--- --- 812x304 32x12 25 1 1332 1.92 82x31x3

RFW-095
--- --- 812x355 32x14 25 1 1554 2.24 82x36x3

RFW-096
--- --- 812x406 32x16 25 1 1776 2.56 82x41x3

RFW-097
--- --- 812x457 32x18 25 1 1998 2.88 82x46x3

RFW-098
--- --- 812x508 32x20 25 1 2220 3.20 82x51x3

RFW-099
--- --- 812x558 32x22 25 1 2442 3.40 82x56x3

RFW-100
--- --- 812x609 32x24 25 1 2664 3.84 82x61x3

Clave

Cuadrado

Rectangular

Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

RFW-101
--- --- 812x660 32x26 25 1 2886 4.16 82x67x3

RFW-102
--- --- 812x711 32x28 25 1 3108 4.48 82x72x3

RFW-103
--- --- 812x762 32x30 25 1 3320 4.92 82x77x3

RFW-104
--- --- 863x152 34x6 25 1 708 1.02 87x16x3

RFW-105
--- --- 863x203 34x8 25 1 944 1.36 87x21x3

RFW-106
--- --- 863x254 34x10 25 1 1179 1.70 87x26x3

RFW-107
--- --- 863x304 34x12 25 1 1415 2.04 87x31x3

RFW-108
--- --- 863x355 34x14 25 1 1651 2.38 87x36x3

RFW-109
--- --- 863x406 34x16 25 1 1887 2.76 87x41x3

RFW-110
--- --- 863x457 34x18 25 1 2123 3.06 87x46x3

RFW-111
--- --- 863x508 34x20 25 1 2359 3.40 87x51x3

RFW-112
--- --- 863x558 34x22 25 1 2595 3.74 87x56x3

RFW-113
--- --- 863x609 34x24 25 1 2831 4.08 87x61x3

RFW-114
--- --- 863x660 34x26 25 1 3066 4.42 87x67x3

RFW-115
--- --- 863x711 34x28 25 1 3302 4.76 87x72x3

RFW-116
--- --- 863x762 34x30 25 1 3657 5.01 87x77x3

RFW-117
--- --- 914x152 36x6 25 1 749 1.08 92x16x3

RFW-118
--- --- 914x203 36x8 25 1 999 1.44 92x21x3

RFW-119
--- --- 914x254 36x10 25 1 1249 1.80 92x26x3

RFW-120
--- --- 914x304 36x12 25 1 1499 2.16 92x31x3

RFW-121
--- --- 914x355 36x14 25 1 1748 2.52 92x36x3

RFW-122
--- --- 914x406 36x16 25 1 1998 2.88 92x41x3

RFW-123
--- --- 914x457 36x18 25 1 2248 3.24 92x46x3

RFW-124
--- --- 914x508 36x20 25 1 2498 3.50 92x51x3

RFW-125
--- --- 914x558 36x22 25 1 2747 3.96 92x56x3

Clave

Cuadrado

Rectangular

Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

RFW-126
--- --- 914x609 36x24 25 1 2997 4.32 92x61x3

RFW-127
--- --- 914x660 36x26 25 1 3247 4.68 92x67x3

RFW-128
--- --- 914x711 36x28 25 1 3497 5.04 92x72x3

RFW-129
--- --- 914x762 36x30 25 1 3784 5.31 92x77x3

RFW-130
--- --- 965x152 38x6 25 1 791 1.14 97x16x3

RFW-131
--- --- 965x203 38x8 25 1 1055 1.52 97x21x3

RFW-132
--- --- 965x254 38x10 25 1 1318 1.90 97x26x3

RFW-133
--- --- 965x304 38x12 25 1 1582 2.28 97x31x3

RFW-134
--- --- 965x355 38x14 25 1 1845 2.66 97x36x3

RFW-135
--- --- 965x406 38x16 25 1 2109 3.04 97x41x3

RFW-136
--- --- 965x457 38x18 25 1 2373 3.42 97x46x3

RFW-137
--- --- 965x508 38x20 25 1 2636 3.80 97x51x3

RFW-138
--- --- 965x558 38x22 25 1 2900 4.18 97x56x3

RFW-139
--- --- 965x609 38x24 25 1 3164 4.56 97x61x3

RFW-140
--- --- 965x660 38x26 25 1 3427 4.94 97x67x3

RFW-141
--- --- 962x711 38x28 25 1 3691 5.32 97x72x3

RFW-142
--- --- 962x762 38x30 25 1 3811 5.62 97x77x3

RFW-143
--- --- 1016x152 40x6 25 1 833 1.20 102x16x3

RFW-144
--- --- 1016x203 40x8 25 1 1110 1.60 102x21x3

RFW-145
--- --- 1016x254 40x10 25 1 1388 2.00 102x26x3

RFW-146
--- --- 1016x304 40x12 25 1 1665 2.40 102x31x3

RFW-147
--- --- 1016x355 40x14 25 1 1943 2.80 102x36x3

RFW-148
--- --- 1016x406 40x16 25 1 2220 3.20 102x41x3

RFW-149
--- --- 1016x457 40x18 25 1 2498 3.60 102x46x3

RFW-150
--- --- 1016x508 40x20 25 1 2775 4.00 102x51x3

Clave

Cuadrado

Rectangular

Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

RFW-151
--- --- 1016x558 40x22 25 1 3053 4.40 102x56x3

RFW-152
--- --- 1016x609 40x24 25 1 3330 4.80 102x61x3

RFW-153
--- --- 1016x660 40x26 25 1 3608 5.20 102x67x3

RFW-154
--- --- 1066x711 40x28 25 1 3885 5.60 107x72x3

RFW-155
--- --- 1066x762 40x30 25 1 4110 5.90 107x77x3

RFW-156
--- --- 1066x152 42x6 25 1 874 1.26 107x16x3

RFW-157
--- --- 1066x203 42x8 25 1 1166 1.68 107x21x3

RFW-158
--- --- 1066x254 42x10 25 1 1457 2.10 107x26x3

RFW-159
--- --- 1066x304 42x12 25 1 1748 2.52 107x31x3

RFW-160
--- --- 1066x355 42x14 25 1 2040 2.94 107x36x3

RFW-161
--- --- 1066x406 42x16 25 1 2331 3.36 107x41x3

RFW-162
--- --- 1066x457 42x18 25 1 2622 3.70 107x46x3

RFW-163
--- --- 1066x508 42x20 25 1 2914 4.20 107x51x3

RFW-164
--- --- 1066x558 42x22 25 1 3205 4.62 107x56x3

RFW-165
--- --- 1066x609 42x24 25 1 3497 5.04 107x61x3

RFW-166
--- --- 1066x660 42x26 25 1 3788 5.46 107x67x3

RFW-167
--- --- 1066x711 42x28 25 1 4079 5.88 107x72x3

RFW-168
--- --- 1066x762 42x30 25 1 4226 6.10 107x77x3

RFW-169
--- --- 1117x152 44x6 25 1 916 1.32 112x16x3

RFW-170
--- --- 1117x203 44x8 25 1 1221 1.79 112x21x3

RFW-171
--- --- 1117x254 44x10 25 1 1526 2.20 112x26x3

RFW-172
--- --- 1117x304 44x12 25 1 1832 2.64 112x31x3

RFW-173
--- --- 1117x355 44x14 25 1 2137 3.08 112x36x3

RFW-174
--- --- 1117x406 44x16 25 1 2442 3.52 112x41x3

RFW-175
--- --- 1117x457 44x18 25 1 2747 3.96 112x46x3

Clave

Cuadrado

Rectangular

Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

RFW-176
--- --- 1117x508 44x20 25 1 3053 4.40 112x51x3

RFW-177
--- --- 1117x558 44x22 25 1 3358 4.84 112x56x3

RFW-178
--- --- 1117x609 44x24 25 1 3663 5.28 112x61x3

RFW-179
--- --- 1117x660 44x26 25 1 3968 5.72 112x67x3

RFW-180
--- --- 1117x711 44x28 25 1 4274 6.16 112x72x3

RFW-181
--- --- 1117x762 44x30 25 1 4487 6.32 112x77x3

RFW-182
--- --- 1168x152 46x6 25 1 957 1.38 117x16x3

RFW-183
--- --- 1168x203
46x8
25 1 1277 1.84 117x21x3

RFW-184
--- --- 1168x254 46x10 25 1 1596 2.30 117x26x3

RFW-185
--- --- 1168x304 46x12 25 1 1915 2.76 117x31x3

RFW-186
--- --- 1168x355 46x14 25 1 2234 3.22 117x36x3

RFW-187
--- --- 1168x406 46x16 25 1 2553 3.68 117x41x3

RFW-188
--- --- 1168x457 46x18 25 1 2872 4.14 117x46x3

RFW-189
--- --- 1168x508 46x20 25 1 3191 4.60 117x51x3

RFW-190
--- --- 1168x558 46x22 25 1 3510 5.06 117x56x3

RFW-191
--- --- 1168x609 46x24 25 1 3830 5.52 117x61x3

RFW-192
--- --- 1168x660 46x26 25 1 4149 5.98 117x67x3

RFW-193
--- --- 1168x711 46x28 25 1 4668 6.44 117x72x3

RFW-194
--- --- 1168x762 46x30 25 1 5174 6.97 117x77x3

RFW-195
--- --- 1219x152 48x6 25 1 999 1.44 122x16x3

RFW-196
--- --- 1219x203 48x8 25 1 1332 1.92 122x21x3

RFW-197
--- --- 1219x254 48x10 25 1 1665 2.40 122x26x3

RFW-198
--- --- 1219x304 48x12 25 1 1998 2.88 122x31x3

RFW-199
--- --- 1219x355 48x14 25 1 2331 3.36 122x36x3

RFW-200
--- --- 1219x406 48x16 25 1 2664 3.84 122x41x3

RFW-201
--- --- 1219x457 48x18 25 1 2997 4.32 122x46x3

RFW-202
--- --- 1219x508 48x20 25 1 3330 4.80 122x51x3

RFW-203
--- --- 1219x558 48x22 25 1 3663 8.25 122x56x3

RFW-204
--- --- 1219x609 48x24 25 1 3996 5.76 122x61x3

RFW-205
--- --- 1219x660 48x26 25 1 4329 6.24 122x67x3

RFW-206
--- --- 1219x711 48x28 25 1 4662 6.72 122x72x3

RFW-207
--- --- 1219x762 48x30 25 1 4987 7.10 122x77x3

| Orden de Compra | Solicitar Precios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

Dimensiones

Montaje

Perforar pared al tamaño correspondiente de la rejilla y fijar.

Perforar panel o tabla roca, al tamaño correspondiente de la rejilla y fijar contra el ducto.

Cualidades

Marco rígido de aluminio.

Álabes fijos en color blanco dober.

Diseño altamente estético.

100% aluminio.

| Inicio | Registrate | Productos | Servicios | Materiales | Especiales | Precios | AutoCad | Orden de Compra | Obras | Ofertas | Seminarios | La Empresa | Chat ICQo Messenger | Correo | Información Técnica | Sitios de Interés | Otros | Lo Nuevo | Intranet | Imprimir |

Copyright © 1996-2001, Todo en Ventilación S.A. de C.V. tiene todos los derechos reservados.

VentDepot México: (52) (55) 5822-1516. TelFax: (52) (55) 5825-0752. mexico@ventdepot.com

VentDepot Perú: (051) 445-5693. TelFax: (051) 436-7042. peru@ventdepot.com

VentDepot USA: 4336 Gessener, Houston, Texas, USA. 77041, P.O. Box. usa@ventdepot.com

Características Generales
Esta TurboRejilla RetroFlow VentDepot, esta diseñada para montarse en pared o falso plafón. Aletas fijas paralelas a la dimensión mayor . La inclinación a 30° de las aletas reduce la vista al interior del ducto con excelente eficiencia. Con un marco de 1" de ancho. Acabado en pintura electrostática horneada o anodizado natural blanco dober.
Aplicaciones
Para uso en: Cualquier ramo industrial, comercial y residencial. En sistemas de ventilación, aire acondicionado y aire lavado.
Garantía
1 (Un) año de Garantía, certificado por escrito, sujeto a las claúsulas.

Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
RFW-001	---	---	203x152	8x6	25	1	167	0.24	21x16x3
RFW-002	203x203	8x8	---	---	25	1	222	0.32	21x21x3
RFW-003	---	---	254x152	10x6	25	1	208	0.30	26x16x3
RFW-004	---	---	254x203	10x8	25	1	278	0.40	26x21x3
RFW-005	254x254	10x10	---	---	25	1	347	0.50	26x26x3
RFW-006	---	---	304x152	12x6	25	1	250	0.36	31x16x3
RFW-007	---	---	304x203	12x8	25	1	333	0.48	31x21x3
RFW-008	---	---	304x254	12x10	25	1	416	0.60	31x26x3
RFW-009	304x304	12x12	---	---	25	1	500	0.72	31x31x3
RFW-010	---	---	355x152	14x6	25	1	291	0.42	36x16x3
RFW-011	---	---	355x203	14x8	25	1	389	0.56	36x21x3
RFW-012	---	---	355x254	14x10	25	1	486	0.70	36x26x3
RFW-013	---	---	355x304	14x12	25	1	583	0.84	36x31x3
RFW-014	355x355	14x14	---	---	25	1	680	0.98	36x36x3
RFW-015	---	---	406x152	16x6	25	1	333	0.48	41x16x3
RFW-016	---	---	406x203	16x8	25	1	444	0.64	41x21x3
RFW-017	---	---	406x254	16x10	25	1	555	0.80	41x26x3
RFW-018	---	---	406x304	16x12	25	1	666	0.96	41x31x3
RFW-019	---	---	406x355	16x14	25	1	777	1.12	41x36x3
RFW-020	406x406	16x16	---	---	25	1	888	1.15	41x41x3
RFW-021	---	---	457x152	18x6	25	1	375	0.54	46x16x3
RFW-022	---	---	457x203	18x8	25	1	500	0.72	46x21x3
RFW-023	---	---	457x254	18x10	25	1	624	0.90	46x26x3
RFW-024	---	---	457x304	18x12	25	1	749	1.08	46x31x3
RFW-025	---	---	457x355	18x14	25	1	874	1.26	46x36x3
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
RFW-026	---	---	457x406	18x16	25	1	999	1.28	46x41x3
RFW-027	457x457	18x18	---	---	25	1	1124	1.44	46x46x3
RFW-028	---	---	508x152	20x6	25	1	416	0.60	51x16x3
RFW-029	---	---	508x203	20x8	25	1	555	0.80	51x21x3
RFW-030	---	---	508x254	20x10	25	1	694	1.00	51x26x3
RFW-031	---	---	508x304	20x12	25	1	833	2.00	51x31x3
RFW-032	---	---	508x355	20x14	25	1	971	1.40	51x36x3
RFW-033	---	---	508x406	20x16	25	1	1110	1.60	51x41x3
RFW-034	---	---	508x457	20x18	25	1	1249	6.00	51x46x3
RFW-035	508x508	20x20	---	---	25	1	1388	1.80	51x51x3
RFW-036	---	---	558x152	22x6	25	1	458	0.66	56x16x3
RFW-037	---	---	558x203	22x8	25	1	611	0.88	56x21x3
RFW-038	---	---	558x254	22x10	25	1	763	1.10	56x26x3
RFW-039	---	---	558x304	22x12	25	1	916	1.32	56x31x3
RFW-040	---	---	558x355	22x14	25	1	1068	1.54	56x36x3
RFW-041	---	---	558x406	22x16	25	1	1221	1.76	56x41x3
RFW-042	---	---	558x457	22x18	25	1	1374	1.98	56x46x3
RFW-043	---	---	558x508	22x20	25	1	1526	2.00	56x51x3
RFW-044	558x558	22x22	---	---	25	1	1679	2.20	56x56x3
RFW-045	---	---	609x152	24x6	25	1	500	0.72	61x16x3
RFW-046	---	---	609x203	24x8	25	1	666	0.96	61x21x3
RFW-047	---	---	609x254	24x10	25	1	833	1.30	61x26x3
RFW-048	---	---	609x304	24x12	25	1	999	1.44	61x31x3
RFW-049	---	---	609x355	24x14	25	1	1166	1.68	61x36x3
RFW-050	---	---	609x406	24x16	25	1	1332	1.92	61x41x3
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
RFW-051	---	---	609x457	24x18	25	1	1499	2.16	61x46x3
RFW-052	---	---	609x508	24x20	25	1	1665	2.40	61x51x3
RFW-053	---	---	609x558	24x22	25	1	1832	2.50	61x56x3
RFW-054	609x609	24x24	---	---	25	1	1998	2.64	61x61x3
RFW-055	---	---	660x152	26x6	25	1	541	0.78	67x16x3
RFW-056	---	---	660x203	26x8	25	1	722	1.04	67x21x3
RFW-057	---	---	660x254	26x10	25	1	902	1.30	67x26x3
RFW-058	---	---	660x304	26x12	25	1	1082	1.56	67x31x3
RFW-059	---	---	660x355	26x14	25	1	1263	1.82	67x36x3
RFW-060	---	---	660x406	26x16	25	1	1443	2.08	67x41x3
RFW-061	---	---	660x457	26x18	25	1	1623	2.34	67x46x3
RFW-062	---	---	660x508	26x20	25	1	1804	2.60	67x51x3
RFW-063	---	---	660x558	26x22	25	1	1984	2.86	67x56x3
RFW-064	---	---	660x609	26x24	25	1	2165	2.89	67x61x3
RFW-065	660x660	26x26	---	---	25	1	2345	3.12	67x67x3
RFW-066	---	---	711x152	28x6	25	1	583	0.84	72x16x3
RFW-067	---	---	711x203	28x8	25	1	777	1.12	72x21x3
RFW-068	---	---	711x254	28x10	25	1	971	1.40	72x26x3
RFW-069	---	---	711x304	28x12	25	1	1166	1.68	72x31x3
RFW-070	---	---	711x355	28x14	25	1	1360	1.96	72x36x3
RFW-071	---	---	711x406	28x16	25	1	1554	2.24	72x41x3
RFW-072	---	---	711x457	28x18	25	1	1748	2.52	72x46x3
RFW-073			711x508	28x20	25	1	1943	2.80	72x51x3
RFW-074	---	---	711x558	28x22	25	1	2137	3.08	72x56x3
RFW-075	---	---	711x609	28x24	25	1	2331	3.36	72x61x3
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
RFW-076	---	---	711x660	28x26	25	1	2525	6.39	72x67x3
RFW-077	711x711	28x28	---	---	25	1	2720	3.64	72x72x3
RFW-078	---	---	762x152	30x6	25	1	624	0.90	77x16x3
RFW-079	---	---	762x203	30x8	25	1	833	1.20	77x21x3
RFW-080	---	---	762x254	30x10	25	1	1041	1.50	77x26x3
RFW-081	---	---	762x304	30x12	25	1	1249	1.80	77x31x3
RFW-082	---	---	762x355	30x14	25	1	1457	2.10	77x36x3
RFW-083	---	---	762x406	30x16	25	1	1665	2.40	77x41x3
RFW-084	---	---	762x457	30x18	25	1	1873	2.70	77x46x3
RFW-085	---	---	762x508	30x20	25	1	2081	3.00	77x51x3
RFW-086	---	---	762x558	30x22	25	1	2289	3.30	77x56x3
RFW-087	---	---	762x609	30x24	25	1	2498	3.60	77x61x3
RFW-088	---	---	762x660	30x26	25	1	2706	3.90	77x67x3
RFW-089	---	---	762x711	30x28	25	1	2914	4.00	77x72x3
RFW-090	762x762	30x30	---	---	25	1	3227	4.30	77x77x3
RFW-091	---	---	812x152	32x6	25	1	666	0.96	82x16x3
RFW-092	---	---	812x203	32x8	25	1	888	1.28	82x21x3
RFW-093	---	---	812x254	32x10	25	1	1110	1.60	82x26x3
RFW-094	---	---	812x304	32x12	25	1	1332	1.92	82x31x3
RFW-095	---	---	812x355	32x14	25	1	1554	2.24	82x36x3
RFW-096	---	---	812x406	32x16	25	1	1776	2.56	82x41x3
RFW-097	---	---	812x457	32x18	25	1	1998	2.88	82x46x3
RFW-098	---	---	812x508	32x20	25	1	2220	3.20	82x51x3
RFW-099	---	---	812x558	32x22	25	1	2442	3.40	82x56x3
RFW-100	---	---	812x609	32x24	25	1	2664	3.84	82x61x3
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
RFW-101	---	---	812x660	32x26	25	1	2886	4.16	82x67x3
RFW-102	---	---	812x711	32x28	25	1	3108	4.48	82x72x3
RFW-103	---	---	812x762	32x30	25	1	3320	4.92	82x77x3
RFW-104	---	---	863x152	34x6	25	1	708	1.02	87x16x3
RFW-105	---	---	863x203	34x8	25	1	944	1.36	87x21x3
RFW-106	---	---	863x254	34x10	25	1	1179	1.70	87x26x3
RFW-107	---	---	863x304	34x12	25	1	1415	2.04	87x31x3
RFW-108	---	---	863x355	34x14	25	1	1651	2.38	87x36x3
RFW-109	---	---	863x406	34x16	25	1	1887	2.76	87x41x3
RFW-110	---	---	863x457	34x18	25	1	2123	3.06	87x46x3
RFW-111	---	---	863x508	34x20	25	1	2359	3.40	87x51x3
RFW-112	---	---	863x558	34x22	25	1	2595	3.74	87x56x3
RFW-113	---	---	863x609	34x24	25	1	2831	4.08	87x61x3
RFW-114	---	---	863x660	34x26	25	1	3066	4.42	87x67x3
RFW-115	---	---	863x711	34x28	25	1	3302	4.76	87x72x3
RFW-116	---	---	863x762	34x30	25	1	3657	5.01	87x77x3
RFW-117	---	---	914x152	36x6	25	1	749	1.08	92x16x3
RFW-118	---	---	914x203	36x8	25	1	999	1.44	92x21x3
RFW-119	---	---	914x254	36x10	25	1	1249	1.80	92x26x3
RFW-120	---	---	914x304	36x12	25	1	1499	2.16	92x31x3
RFW-121	---	---	914x355	36x14	25	1	1748	2.52	92x36x3
RFW-122	---	---	914x406	36x16	25	1	1998	2.88	92x41x3
RFW-123	---	---	914x457	36x18	25	1	2248	3.24	92x46x3
RFW-124	---	---	914x508	36x20	25	1	2498	3.50	92x51x3
RFW-125	---	---	914x558	36x22	25	1	2747	3.96	92x56x3
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
RFW-126	---	---	914x609	36x24	25	1	2997	4.32	92x61x3
RFW-127	---	---	914x660	36x26	25	1	3247	4.68	92x67x3
RFW-128	---	---	914x711	36x28	25	1	3497	5.04	92x72x3
RFW-129	---	---	914x762	36x30	25	1	3784	5.31	92x77x3
RFW-130	---	---	965x152	38x6	25	1	791	1.14	97x16x3
RFW-131	---	---	965x203	38x8	25	1	1055	1.52	97x21x3
RFW-132	---	---	965x254	38x10	25	1	1318	1.90	97x26x3
RFW-133	---	---	965x304	38x12	25	1	1582	2.28	97x31x3
RFW-134	---	---	965x355	38x14	25	1	1845	2.66	97x36x3
RFW-135	---	---	965x406	38x16	25	1	2109	3.04	97x41x3
RFW-136	---	---	965x457	38x18	25	1	2373	3.42	97x46x3
RFW-137	---	---	965x508	38x20	25	1	2636	3.80	97x51x3
RFW-138	---	---	965x558	38x22	25	1	2900	4.18	97x56x3
RFW-139	---	---	965x609	38x24	25	1	3164	4.56	97x61x3
RFW-140	---	---	965x660	38x26	25	1	3427	4.94	97x67x3
RFW-141	---	---	962x711	38x28	25	1	3691	5.32	97x72x3
RFW-142	---	---	962x762	38x30	25	1	3811	5.62	97x77x3
RFW-143	---	---	1016x152	40x6	25	1	833	1.20	102x16x3
RFW-144	---	---	1016x203	40x8	25	1	1110	1.60	102x21x3
RFW-145	---	---	1016x254	40x10	25	1	1388	2.00	102x26x3
RFW-146	---	---	1016x304	40x12	25	1	1665	2.40	102x31x3
RFW-147	---	---	1016x355	40x14	25	1	1943	2.80	102x36x3
RFW-148	---	---	1016x406	40x16	25	1	2220	3.20	102x41x3
RFW-149	---	---	1016x457	40x18	25	1	2498	3.60	102x46x3
RFW-150	---	---	1016x508	40x20	25	1	2775	4.00	102x51x3
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
RFW-151	---	---	1016x558	40x22	25	1	3053	4.40	102x56x3
RFW-152	---	---	1016x609	40x24	25	1	3330	4.80	102x61x3
RFW-153	---	---	1016x660	40x26	25	1	3608	5.20	102x67x3
RFW-154	---	---	1066x711	40x28	25	1	3885	5.60	107x72x3
RFW-155	---	---	1066x762	40x30	25	1	4110	5.90	107x77x3
RFW-156	---	---	1066x152	42x6	25	1	874	1.26	107x16x3
RFW-157	---	---	1066x203	42x8	25	1	1166	1.68	107x21x3
RFW-158	---	---	1066x254	42x10	25	1	1457	2.10	107x26x3
RFW-159	---	---	1066x304	42x12	25	1	1748	2.52	107x31x3
RFW-160	---	---	1066x355	42x14	25	1	2040	2.94	107x36x3
RFW-161	---	---	1066x406	42x16	25	1	2331	3.36	107x41x3
RFW-162	---	---	1066x457	42x18	25	1	2622	3.70	107x46x3
RFW-163	---	---	1066x508	42x20	25	1	2914	4.20	107x51x3
RFW-164	---	---	1066x558	42x22	25	1	3205	4.62	107x56x3
RFW-165	---	---	1066x609	42x24	25	1	3497	5.04	107x61x3
RFW-166	---	---	1066x660	42x26	25	1	3788	5.46	107x67x3
RFW-167	---	---	1066x711	42x28	25	1	4079	5.88	107x72x3
RFW-168	---	---	1066x762	42x30	25	1	4226	6.10	107x77x3
RFW-169	---	---	1117x152	44x6	25	1	916	1.32	112x16x3
RFW-170	---	---	1117x203	44x8	25	1	1221	1.79	112x21x3
RFW-171	---	---	1117x254	44x10	25	1	1526	2.20	112x26x3
RFW-172	---	---	1117x304	44x12	25	1	1832	2.64	112x31x3
RFW-173	---	---	1117x355	44x14	25	1	2137	3.08	112x36x3
RFW-174	---	---	1117x406	44x16	25	1	2442	3.52	112x41x3
RFW-175	---	---	1117x457	44x18	25	1	2747	3.96	112x46x3
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
RFW-176	---	---	1117x508	44x20	25	1	3053	4.40	112x51x3
RFW-177	---	---	1117x558	44x22	25	1	3358	4.84	112x56x3
RFW-178	---	---	1117x609	44x24	25	1	3663	5.28	112x61x3
RFW-179	---	---	1117x660	44x26	25	1	3968	5.72	112x67x3
RFW-180	---	---	1117x711	44x28	25	1	4274	6.16	112x72x3
RFW-181	---	---	1117x762	44x30	25	1	4487	6.32	112x77x3
RFW-182	---	---	1168x152	46x6	25	1	957	1.38	117x16x3
RFW-183	---	---	1168x203	46x8	25	1	1277	1.84	117x21x3
RFW-184	---	---	1168x254	46x10	25	1	1596	2.30	117x26x3
RFW-185	---	---	1168x304	46x12	25	1	1915	2.76	117x31x3
RFW-186	---	---	1168x355	46x14	25	1	2234	3.22	117x36x3
RFW-187	---	---	1168x406	46x16	25	1	2553	3.68	117x41x3
RFW-188	---	---	1168x457	46x18	25	1	2872	4.14	117x46x3
RFW-189	---	---	1168x508	46x20	25	1	3191	4.60	117x51x3
RFW-190	---	---	1168x558	46x22	25	1	3510	5.06	117x56x3
RFW-191	---	---	1168x609	46x24	25	1	3830	5.52	117x61x3
RFW-192	---	---	1168x660	46x26	25	1	4149	5.98	117x67x3
RFW-193	---	---	1168x711	46x28	25	1	4668	6.44	117x72x3
RFW-194	---	---	1168x762	46x30	25	1	5174	6.97	117x77x3
RFW-195	---	---	1219x152	48x6	25	1	999	1.44	122x16x3
RFW-196	---	---	1219x203	48x8	25	1	1332	1.92	122x21x3
RFW-197	---	---	1219x254	48x10	25	1	1665	2.40	122x26x3
RFW-198	---	---	1219x304	48x12	25	1	1998	2.88	122x31x3
RFW-199	---	---	1219x355	48x14	25	1	2331	3.36	122x36x3
RFW-200	---	---	1219x406	48x16	25	1	2664	3.84	122x41x3
RFW-201	---	---	1219x457	48x18	25	1	2997	4.32	122x46x3
RFW-202	---	---	1219x508	48x20	25	1	3330	4.80	122x51x3
RFW-203	---	---	1219x558	48x22	25	1	3663	8.25	122x56x3
RFW-204	---	---	1219x609	48x24	25	1	3996	5.76	122x61x3
RFW-205	---	---	1219x660	48x26	25	1	4329	6.24	122x67x3
RFW-206	---	---	1219x711	48x28	25	1	4662	6.72	122x72x3
RFW-207	---	---	1219x762	48x30	25	1	4987	7.10	122x77x3

Montaje
Perforar pared al tamaño correspondiente de la rejilla y fijar.
Perforar panel o tabla roca, al tamaño correspondiente de la rejilla y fijar contra el ducto.

Cualidades
		Marco rígido de aluminio. Álabes fijos en color blanco dober.
		Diseño altamente estético. 100% aluminio.
