Equipos y Productos: TurboRejillas: RetroBlind.

Características Generales

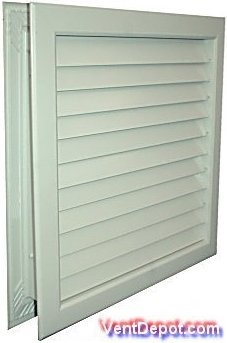

Esta TurboRejilla RetroBlind VentDepot, es una  rejilla de retorno que permite el flujo del aire.
Sin campo de visión.
Cuenta con contramarco fabricado en 100% aluminio para una excelente apariencia en ambos lados.
Ideal para aplicaciones en puertas donde se pretenda mantener oculto el interior.
Acabado en pintura electrostática horneada o anodizado natural blanco dober.

Aplicaciones

Para uso en: Cualquier ramo industrial, comercial y residencial.

Garantía

1 (Un) año de Garantía, certificado por escrito, sujeto a las claúsulas.

Características Técnicas Especiíficas

Clave

Cuadrado
Rectangular
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C
mm pulg mm pulg mm pulg m3/hr Kg cm

RBD-001

--- --- 203x152 8x6 38 1 1/2 167 0.24 21x16x4

RBD-002

203x203 8x8 --- --- 38 1 1/2 222 0.32 21x21x4

RBD-003

--- --- 254x152 10x6 38 1 1/2 208 0.30 26x16x4

RBD-004

--- --- 254x203 10x8 38 1 1/2 278 0.40 26x21x4

RBD-005

254x254 10x10 --- --- 38 1 1/2 347 0.50 26x26x4

RBD-006

--- --- 304x152 12x6 38 1 1/2 250 0.36 31x16x4

RBD-007

--- --- 304x203 12x8 38 1 1/2 333 0.48 31x21x4

RBD-008

--- --- 304x254 12x10 38 1 1/2 416 0.60 31x26x4

RBD-009

304x304 12x12 --- --- 38 1 1/2 500 0.72 31x31x4

RBD-010

--- --- 355x152 14x6 38 1 1/2 291 0.42 36x16x4

RBD-011

--- --- 355x203 14x8 38 1 1/2 389 0.56 36x21x4

RBD-012

--- --- 355x254 14x10 38 1 1/2 486 0.70 36x26x4

RBD-013

--- --- 355x304 14x12 38 1 1/2 583 0.84 36x31x4

RBD-014

355x355 14x14 --- --- 38 1 1/2 680 0.98 36x36x4

RBD-015

--- --- 406x152 16x6 38 1 1/2 333 0.48 41x16x4

RBD-016

--- --- 406x203 16x8 38 1 1/2 444 0.64 41x21x4

RBD-017

--- --- 406x254 16x10 38 1 1/2 555 0.80 41x26x4

RBD-018

--- --- 406x304 16x12 38 1 1/2 666 0.96 41x31x4

RBD-019

--- --- 406x355 16x14 38 1 1/2 777 1.12 41x36x4

RBD-020

406x406 16x16 --- --- 38 1 1/2 888 1.15 41x41x4

RBD-021

--- --- 457x152 18x6 38 1 1/2 375 0.54 46x16x4

RBD-022

--- --- 457x203 18x8 38 1 1/2 500 0.72 46x21x4

RBD-023

--- --- 457x254 18x10 38 1 1/2 624 0.90 46x26x4

RBD-024

--- --- 457x304 18x12 38 1 1/2 749 1.08 46x31x4

RBD-025

--- --- 457x355 18x14 38 1 1/2 874 1.26 46x36x4

Clave

Cuadrado
Rectangular
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C
mm pulg mm pulg mm pulg m3/hr Kg cm

RBD-026

--- --- 457x406 18x16 38 1 1/2 999 1.28 46x41x4

RBD-027

457x457 18x18 --- --- 38 1 1/2 1124 1.44 46x46x4

RBD-028

--- --- 508x152 20x6 38 1 1/2 416 0.60 51x16x4

RBD-029

--- --- 508x203 20x8 38 1 1/2 555 0.80 51x21x4

RBD-030

--- --- 508x254 20x10 38 1 1/2 694 1.00 51x26x4

RBD-031

--- --- 508x304 20x12 38 1 1/2 833 2.00 51x31x4

RBD-032

--- --- 508x355 20x14 38 1 1/2 971 1.40 51x36x4

RBD-033

--- --- 508x406 20x16 38 1 1/2 1110 1.60 51x41x4

RBD-034

--- --- 508x457 20x18 38 1 1/2 1249 6.00 51x46x4

RBD-035

508x508 20x20 --- --- 38 1 1/2 1388 1.80 51x51x4

RBD-036

--- --- 558x152 22x6 38 1 1/2 458 0.66 56x16x4

RBD-037

--- --- 558x203 22x8 38 1 1/2 611 0.88 56x21x4

RBD-038

--- --- 558x254 22x10 38 1 1/2 763 1.10 56x26x4

RBD-039

--- --- 558x304 22x12 38 1 1/2 916 1.32 56x31x4

RBD-040

--- --- 558x355 22x14 38 1 1/2 1068 1.54 56x36x4

RBD-041

--- --- 558x406 22x16 38 1 1/2 1221 1.76 56x41x4

RBD-042

--- --- 558x457 22x18 38 1 1/2 1374 1.98 56x46x4

RBD-043

--- --- 558x508 22x20 38 1 1/2 1526 2.00 56x51x4

RBD-044

558x558 22x22 --- --- 38 1 1/2 1679 2.20 56x56x4

RBD-045

--- --- 609x152 24x6 38 1 1/2 500 0.72 61x16x4

RBD-046

--- --- 609x203 24x8 38 1 1/2 666 0.96 61x21x4

RBD-047

--- --- 609x254 24x10 38 1 1/2 833 1.30 61x26x4

RBD-048

--- --- 609x304 24x12 38 1 1/2 999 1.44 61x31x4

RBD-049

--- --- 609x355 24x14 38 1 1/2 1166 1.68 61x36x4

RBD-050

--- --- 609x406 24x16 38 1 1/2 1332 1.92 61x41x4

Clave

Cuadrado
Rectangular
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C
mm pulg mm pulg mm pulg m3/hr Kg cm

RBD-051

--- --- 609x457 24x18 38 1 1/2 1499 2.16 61x46x4

RBD-052

--- --- 609x508 24x20 38 1 1/2 1665 2.40 61x51x4

RBD-053

--- --- 609x558 24x22 38 1 1/2 1832 2.50 61x56x4

RBD-054

609x609 24x24 --- --- 38 1 1/2 1998 2.64 61x61x4

RBD-055

--- --- 660x152 26x6 38 1 1/2 541 0.78 67x16x4

RBD-056

--- --- 660x203 26x8 38 1 1/2 722 1.04 67x21x4

RBD-057

--- --- 660x254 26x10 38 1 1/2 902 1.30 67x26x4

RBD-058

--- --- 660x304 26x12 38 1 1/2 1082 1.56 67x31x4

RBD-059

--- --- 660x355 26x14 38 1 1/2 1263 1.82 67x36x4

RBD-060

--- --- 660x406 26x16 38 1 1/2 1443 2.08 67x41x4

RBD-061

--- --- 660x457 26x18 38 1 1/2 1623 2.34 67x46x4

RBD-062

--- --- 660x508 26x20 38 1 1/2 1804 2.60 67x51x4

RBD-063

--- --- 660x558 26x22 38 1 1/2 1984 2.86 67x56x4

RBD-064

--- --- 660x609 26x24 38 1 1/2 2165 2.89 67x61x4

RBD-065

--- --- 711x152 28x6 38 1 1/2 583 0.84 72x16x4

RBD-066

--- --- 711x203 28x8 38 1 1/2 777 1.12 72x21x4

RBD-067

--- --- 711x254 28x10 38 1 1/2 971 1.40 72x26x4

RBD-068

--- --- 711x304 28x12 38 1 1/2 1166 1.68 72x31x4

RBD-069

--- --- 711x355 28x14 38 1 1/2 1360 1.96 72x36x4

RBD-070

--- --- 711x406 28x16 38 1 1/2 1554 2.24 72x41x4

RBD-071

--- --- 711x457 28x18 38 1 1/2 1748 2.52 72x46x4

RBD-072





711x508 28x20 38 1 1/2 1943 2.80 72x51x4

RBD-073

--- --- 711x558 28x22 38 1 1/2 2137 3.08 72x56x4

RBD-074

--- --- 711x609 28x24 38 1 1/2 2331 3.36 72x61x4

RBD-075

--- --- 762x152 30x6 38 1 1/2 624 0.90 77x16x4

Clave

Cuadrado
Rectangular
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C
mm pulg mm pulg mm pulg m3/hr Kg cm

RBD-076

--- --- 762x203 30x8 38 1 1/2 833 1.20 77x21x4

RBD-077

--- --- 762x254 30x10 38 1 1/2 1041 1.50 77x26x4

RBD-078

--- --- 762x304 30x12 38 1 1/2 1249 1.80 77x31x4

RBD-079

--- --- 762x355 30x14 38 1 1/2 1457 2.10 77x36x4

RBD-080

--- --- 762x406 30x16 38 1 1/2 1665 2.40 77x41x4

RBD-081

--- --- 762x457 30x18 38 1 1/2 1873 2.70 77x46x4

RBD-082

--- --- 762x508 30x20 38 1 1/2 2081 3.00 77x51x4

RBD-083

--- --- 762x558 30x22 38 1 1/2 2289 3.30 77x56x4

RBD-084

--- --- 762x609 30x24 38 1 1/2 2498 3.60 77x61x4

RBD-085

--- --- 812x152 32x6 38 1 1/2 666 0.96 82x16x4

RBD-086

--- --- 812x203 32x8 38 1 1/2 888 1.28 82x21x4

RBD-087

--- --- 812x254 32x10 38 1 1/2 1110 1.60 82x26x4

RBD-088

--- --- 812x304 32x12 38 1 1/2 1332 1.92 82x31x4

RBD-089

--- --- 812x355 32x14 38 1 1/2 1554 2.24 82x36x4

RBD-090

--- --- 812x406 32x16 38 1 1/2 1776 2.56 82x41x4

RBD-091

--- --- 812x457 32x18 38 1 1/2 1998 2.88 82x46x4

RBD-092

--- --- 812x508 32x20 38 1 1/2 2220 3.20 82x51x4

RBD-093

--- --- 812x558 32x22 38 1 1/2 2442 3.40 82x56x4

RBD-094

--- --- 812x609 32x24 38 1 1/2 2664 3.84 82x61x4

RBD-095

--- --- 863x152 34x6 38 1 1/2 708 1.02 87x16x4

RBD-096

--- --- 863x203 34x8 38 1 1/2 944 1.36 87x21x4

RBD-097

--- --- 863x254 34x10 38 1 1/2 1179 1.70 87x26x4

RBD-098

--- --- 863x304 34x12 38 1 1/2 1415 2.04 87x31x4

RBD-099

--- --- 863x355 34x14 38 1 1/2 1651 2.38 87x36x4

RBD-100

--- --- 863x406 34x16 38 1 1/2 1887 2.76 87x41x4

RBD-101

--- --- 863x457 34x18 38 1 1/2 2123 3.06 87x46x4

RBD-102

--- --- 863x508 34x20 38 1 1/2 2359 3.40 87x51x4

RBD-103

--- --- 863x558 34x22 38 1 1/2 2595 3.74 87x56x4

RBD-104

--- --- 863x609 34x24 38 1 1/2 2831 4.08 87x61x4

| Orden de Compra | Solicitar Precios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

Dimensiones

Montaje

Hacer perforación al tamaño AxB en la puerta.
Posteriormente fijar equipo RetroBlind con pijas.

Cualidades


Contramarco para interiores, dando mayor estética y rigidez.
Alta resistencia a portazos.




Diseño altamente estético.
100% aluminio.

Marco rígido de aluminio.
Álabes fijos en color blanco dober.
