Equipos y Productos: TurboRejillas: PerComp.

Características Generales

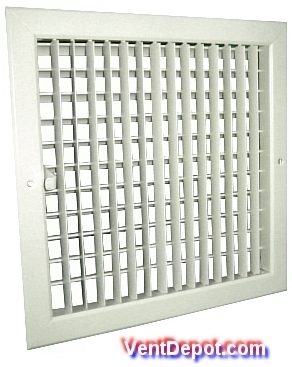

Este TurboDifusor PerComp VentDepot, es de rejilla de doble deflexión, lo que permite un control de la dirección y volumen del flujo de aire.
Cada una de las aletas frontales se ajusta individualmente.

Las aletas posteriores se ajustan moviendo una palanca instaladad en la rejilla.

Una separación entre aletas de 3/4".

Acabado en pintura electrostática horneada blanco dover.

Aplicaciones

Para uso en: Cualquier ramo industrial.

Garantía

1 (Un) año de Garantía certificado por escrito, sujeto a las claúsulas.

Características Técnicas Específicas

Clave

Cuadrado

Rectangular

Fondo
Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg Kg cm

PCP-001
--- --- 203x152 8x6 38 1 1/2 0.24 21x16x5

PCP-002
203x203 8x8 --- --- 38 1 1/2 0.32 21x21x5

PCP-003
--- --- 254x152 10x6 38 1 1/2 0.30 26x16x5

PCP-004
--- --- 254x203 10x8 38 1 1/2 0.40 26x21x5

PCP-005
254x254 10x10 --- --- 38 1 1/2 0.50 26x26x5

PCP-006
--- --- 304x152 12x6 38 1 1/2 0.36 31x16x5

PCP-007
--- --- 304x203 12x8 38 1 1/2 0.48 31x21x5

PCP-008
--- --- 304x254 12x10 38 1 1/2 0.60 31x26x5

PCP-009
304x304 12x12 --- --- 38 1 1/2 0.72 3131x5

PCP-010
--- --- 355x152 14x6 38 1 1/2 0.42 36x16x5

PCP-011
--- --- 355x203 14x8 38 1 1/2 0.56 36x21x5

PCP-012
--- --- 355x254 14x10 38 1 1/2 0.70 36x26x5

PCP-013
--- --- 355x304 14x12 38 1 1/2 0.84 36x31x5

PCP-014
355x355 14x14 --- --- 38 1 1/2 0.98 36x36x5

PCP-015
--- --- 406x152 16x6 38 1 1/2 0.48 41x16x5

PCP-016
--- --- 406x203 16x8 38 1 1/2 0.64 41x21x5

PCP-017
--- --- 406x254 16x10 38 1 1/2 0.80 41x26x5

PCP-018
--- --- 406x304 16x12 38 1 1/2 0.96 41x31x5

PCP-019
--- --- 406x355 16x14 38 1 1/2 1.12 41x36x5

PCP-020
406x406 16x16 --- --- 38 1 1/2 1.12 41x41x5

PCP-021
--- --- 457x152 18x6 38 1 1/2 0.54 46x16x5

PCP-022
--- --- 457x203 18x8 38 1 1/2 0.72 46x21x5

PCP-023
--- --- 457x254 18x10 38 1 1/2 0.90 46x26x5

PCP-024
--- --- 457x304 18x12 38 1 1/2 1.08 46x31x5

PCP-025
--- --- 457x355 18x14 38 1 1/2 1.26 46x36x5

Clave

Cuadrado

Rectangular

Fondo
Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg Kg cm

PCP-026
--- --- 457x406 18x16 38 1 1/2 1.26 46x41x5

PCP-027
457x457 18x18 --- --- 38 1 1/2 1.44 46x46x5

PCP-028
--- --- 508x152 20x6 38 1 1/2 0.60 51x16x5

PCP-029
--- --- 508x203 20x8 38 1 1/2 0.80 51x21x5

PCP-030
--- --- 508x254 20x10 38 1 1/2 1.00 51x26x5

PCP-031
--- --- 508x304 20x12 38 1 1/2 2.00 51x31x5

PCP-032
--- --- 508x355 20x14 38 1 1/2 1.40 51x36x5

PCP-033
--- --- 508x406 20x16 38 1 1/2 1.60 51x41x5

PCP-034
--- --- 508x457 20x18 38 1 1/2 1.80 51x46x5

PCP-035
508x508 20x20 --- --- 38 1 1/2 1.80 51x51x5

PCP-036
--- --- 558x152 22x6 38 1 1/2 0.66 56x16x5

PCP-037
--- --- 558x203 22x8 38 1 1/2 0.88 56x21x5

PCP-038
--- --- 558x254 22x10 38 1 1/2 1.10 56x26x5

PCP-039
--- --- 558x304 22x12 38 1 1/2 1.32 56x31x5

PCP-040
--- --- 558x355 22x14 38 1 1/2 1.54 56x36x5

PCP-041
--- --- 558x406 22x16 38 1 1/2 1.76 56x41x5

PCP-042
--- --- 558x457 22x18 38 1 1/2 1.98 56x46x5

PCP-043
--- --- 558x508 22x20 38 1 1/2 2.10 56x51x5

PCP-044
558x558 22x22 --- --- 38 1 1/2 2.20 56x56x5

PCP-045
--- --- 609x152 24x6 38 1 1/2 0.72 61x16x5

PCP-046
--- --- 609x203 24x8 38 1 1/2 0.96 61x21x5

PCP-047
--- --- 609x254 24x10 38 1 1/2 1.20 61x26x5

PCP-048
--- --- 609x304 24x12 38 1 1/2 1.44 61x31x5

PCP-049
--- --- 609x355 24x14 38 1 1/2 1.68 61x36x5

PCP-050
--- --- 609x406 24x16 38 1 1/2 1.92 61x41x5

Clave

Cuadrado

Rectangular

Fondo
Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg Kg cm

PCP-051
--- --- 609x457 24x18 38 1 1/2 2.16 61x46x5

PCP-052
--- --- 609x508 24x20 38 1 1/2 2.40 61x51x5

PCP-053
--- --- 609x558 24x22 38 1 1/2 2.40 61x56x5

PCP-054
609x609 24x24 --- --- 38 1 1/2 2.64 61x61x5

PCP-055
--- --- 660x152 26x6 38 1 1/2 0.78 67x16x5

PCP-056
--- --- 660x203 26x8 38 1 1/2 1.04 67x21x5

PCP-057
--- --- 660x254 26x10 38 1 1/2 1.30 67x26x5

PCP-058
--- --- 660x304 26x12 38 1 1/2 1.56 67x31x5

PCP-059
--- --- 660x355 26x14 38 1 1/2 1.82 67x36x5

PCP-060
--- --- 660x406 26x16 38 1 1/2 2.08 67x41x5

PCP-061
--- --- 660x457 26x18 38 1 1/2 2.34 67x46x5

PCP-062
--- --- 660x508 26x20 38 1 1/2 2.60 67x51x5

PCP-063
--- --- 660x558 26x22 38 1 1/2 2.86 67x56x5

PCP-064
--- --- 660x609 26x24 38 1 1/2 2.89 67x61x5

PCP-065
660x660 26x26 --- --- 38 1 1/2 3.12 67x67x5

PCP-066
--- --- 711x152 28x6 38 1 1/2 0.84 72x16x5

PCP-067
--- --- 711x203 28x8 38 1 1/2 1.12 72x21x5

PCP-068
--- --- 711x254 28x10 38 1 1/2 1.40 72x26x5

PCP-069
--- --- 711x304 28x12 38 1 1/2 1.68 72x31x5

PCP-070
--- --- 711x355 28x14 38 1 1/2 1.96 72x36x5

PCP-071
--- --- 711x406 28x16 38 1 1/2 2.24 72x41x5

PCP-072
--- --- 711x457 28x18 38 1 1/2 2.52 72x46x5

PCP-073
--- --- 711x508 28x20 38 1 1/2 2.80 72x51x5

PCP-074
--- --- 711x558 28x22 38 1 1/2 3.08 72x56x5

PCP-075
--- --- 711x609 28x24 38 1 1/2 3.36 72x61x5

Clave

Cuadrado

Rectangular

Fondo
Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg Kg cm

PCP-076
--- --- 711x660 28x26 38 1 1/2 3.54 72x67x5

PCP-077
711x711 28x28 --- --- 38 1 1/2 3.64 72x72x5

PCP-078
--- --- 762x152 30x6 38 1 1/2 0.90 77x16x5

PCP-079
--- --- 762x203 30x8 38 1 1/2 1.20 77x21x5

PCP-080
--- --- 762x254 30x10 38 1 1/2 1.50 77x26x5

PCP-081
--- --- 762x304 30x12 38 1 1/2 1.80 77x31x5

PCP-082
--- --- 762x355 30x14 38 1 1/2 2.10 77x36x5

PCP-083
--- --- 762x406 30x16 38 1 1/2 2.40 77x41x5

PCP-084
--- --- 762x457 30x18 38 1 1/2 2.70 77x46x5

PCP-085
--- --- 762x508 30x20 38 1 1/2 3.00 77x51x5

PCP-086
--- --- 762x558 30x22 38 1 1/2 3.32 77x56x5

PCP-087
--- --- 762x609 30x24 38 1 1/2 3.60 77x61x5

PCP-088
--- --- 762x660 30x26 38 1 1/2 3.90 77x67x5

PCP-089
--- --- 762x711 30x28 38 1 1/2 4.00 77x72x5

PCP-090
762x762 30x30 --- --- 38 1 1/2 4.50 77x77x5

PCP-091
--- --- 812x152 32x6 38 1 1/2 0.96 82x16x5

PCP-092
--- --- 812x203 32x8 38 1 1/2 1.28 82x21x5

PCP-093
--- --- 812x254 32x10 38 1 1/2 1.60 82x26x5

PCP-094
--- --- 812x304 32x12 38 1 1/2 1.92 82x31x5

PCP-095
--- --- 812x355 32x14 38 1 1/2 2.24 82x36x5

PCP-096
--- --- 812x406 32x16 38 1 1/2 2.56 82x41x5

PCP-097
--- --- 812x457 32x18 38 1 1/2 2.88 82x46x5

PCP-098
--- --- 812x508 32x20 38 1 1/2 3.20 82x51x5

PCP-099
--- --- 812x558 32x22 38 1 1/2 3.52 82x56x5

PCP-100
--- --- 812x609 32x24 38 1 1/2 3.84 82x61x5

Clave

Cuadrado

Rectangular

Fondo
Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg Kg cm

PCP-101
--- --- 812x660 32x26 38 1 1/2 4.16 82x67x5

PCP-102
--- --- 812x711 32x28 38 1 1/2 4.48 82x72x5

PCP-103
--- --- 812x762 32x30 38 1 1/2 4.80 82x77x5

PCP-104
--- --- 863x152 34x6 38 1 1/2 1.02 87x16x5

PCP-105
--- --- 863x203 34x8 38 1 1/2 1.36 87x21x5

PCP-106
--- --- 863x254 34x10 38 1 1/2 1.70 87x26x5

PCP-107
--- --- 863x304 34x12 38 1 1/2 2.04 87x31x5

PCP-108
--- --- 863x355 34x14 38 1 1/2 2.38 87x36x5

PCP-109
--- --- 863x406 34x16 38 1 1/2 2.76 87x41x5

PCP-110
--- --- 863x457 34x18 38 1 1/2 3.06 87x46x5

PCP-111
--- --- 863x508 34x20 38 1 1/2 3.40 87x51x5

PCP-112
--- --- 863x558 34x22 38 1 1/2 3.74 87x56x5

PCP-113
--- --- 863x609 34x24 38 1 1/2 4.08 87x61x5

PCP-114
--- --- 863x660 34x26 38 1 1/2 4.42 87x67x5

PCP-115
--- --- 863x711 34x28 38 1 1/2 4.76 87x72x5

PCP-116
--- --- 863x762 34x30 38 1 1/2 5.10 87x77x5

PCP-117
--- --- 914x152 36x6 38 1 1/2 1.08 92x16x5

PCP-118
--- --- 914x203 36x8 38 1 1/2 1.44 92x21x5

PCP-119
--- --- 914x254 36x10 38 1 1/2 1.80 92x26x5

PCP-120
--- --- 914x304 36x12 38 1 1/2 2.16 92x31x5

PCP-121
--- --- 914x355 36x14 38 1 1/2 2.52 92x36x5

PCP-122
--- --- 914x406 36x16 38 1 1/2 2.88 92x41x5

PCP-123
--- --- 914x457 36x18 38 1 1/2 3.24 92x46x5

PCP-124
--- --- 914x508 36x20 38 1 1/2 3.50 92x51x5

PCP-125
--- --- 914x558 36x22 38 1 1/2 3.96 92x56x5

Clave

Cuadrado

Rectangular

Fondo
Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg Kg cm

PCP-126
--- --- 914x609 36x24 38 1 1/2 4.32 92x61x5

PCP-127
--- --- 914x660 36x26 38 1 1/2 4.68 92x67x5

PCP-128
--- --- 914x711 36x28 38 1 1/2 5.04 92x72x5

PCP-129
--- --- 914x762 36x30 38 1 1/2 5.40 92x77x5

PCP-130
--- --- 965x152 38x6 38 1 1/2 1.14 97x16x5

PCP-131
--- --- 965x203 38x8 38 1 1/2 1.52 97x21x5

PCP-132
--- --- 965x254 38x10 38 1 1/2 1.90 97x26x5

PCP-133
--- --- 965x304 38x12 38 1 1/2 2.28 97x31x5

PCP-134
--- --- 965x355 38x14 38 1 1/2 2.66 97x36x5

PCP-135
--- --- 965x406 38x16 38 1 1/2 3.04 97x41x5

PCP-136
--- --- 965x457 38x18 38 1 1/2 3.42 97x46x5

PCP-137
--- --- 965x508 38x20 38 1 1/2 3.90 97x51x5

PCP-138
--- --- 965x558 38x22 38 1 1/2 4.18 97x56x5

PCP-139
--- --- 965x609 38x24 38 1 1/2 4.56 97x61x5

PCP-140
--- --- 965x660 38x26 38 1 1/2 4.94 97x67x5

PCP-141
--- --- 965x711 38x28 38 1 1/2 5.32 97x72x5

PCP-142
--- --- 965x762 38x30 38 1 1/2 5.70 97x77x5

| Orden de Compra | Solicitar Precios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

Dimensiones

Montaje

Perforar panel o tabla roca, al tamaño correspondiente de la rejilla (Dimensiones A y B), fijar rejilla contra el ducto.

Perforar pared al tamaño correspondiente de la rejilla (Dimensiones A y B), fijar rejilla contra el ducto.
VentDepot Team, monta instala y da mantenimiento a cualquiera de nuestros equipos, de forma rápida, segur y conforme a las normas industriales.

Suministro y servicio a toda la República mexicana.

Cualidades

Marco rígido de aluminio.

Álabes direccionables de forma manual en la parte frontral, dirigiendo el caudal a donde se requiera.

Álabes traseros direccionables por medio de una palanca permitiendo una forma fácil de dirigir el caudal a donde se requiera.

Diseño altamente estético.

100% aluminio.

| Inicio | Registrate | Productos | Servicios | Materiales | Especiales | Precios | AutoCad | Orden de Compra | Obras | Ofertas | Seminarios | La Empresa | Chat ICQo Messenger | Correo | Información Técnica | Sitios de Interés | Otros | Lo Nuevo | Intranet | Imprimir |

Copyright © 1996-2001, Todo en Ventilación S.A. de C.V. tiene todos los derechos reservados.

VentDepot México: (52) (55) 5822-1516. TelFax: (52) (55) 5825-0752. mexico@ventdepot.com

VentDepot Perú: (051) 445-5693. TelFax: (051) 436-7042. peru@ventdepot.com

VentDepot USA: 4336 Gessener, Houston, Texas, USA. 77041, P.O. Box. usa@ventdepot.com

Características Generales
Este TurboDifusor PerComp VentDepot, es de rejilla de doble deflexión, lo que permite un control de la dirección y volumen del flujo de aire. Cada una de las aletas frontales se ajusta individualmente. Las aletas posteriores se ajustan moviendo una palanca instaladad en la rejilla. Una separación entre aletas de 3/4". Acabado en pintura electrostática horneada blanco dover.
Aplicaciones
Para uso en: Cualquier ramo industrial.
Garantía
1 (Un) año de Garantía certificado por escrito, sujeto a las claúsulas.

Clave	Cuadrado		Rectangular		Fondo		Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	Kg	cm
PCP-001	---	---	203x152	8x6	38	1 1/2	0.24	21x16x5
PCP-002	203x203	8x8	---	---	38	1 1/2	0.32	21x21x5
PCP-003	---	---	254x152	10x6	38	1 1/2	0.30	26x16x5
PCP-004	---	---	254x203	10x8	38	1 1/2	0.40	26x21x5
PCP-005	254x254	10x10	---	---	38	1 1/2	0.50	26x26x5
PCP-006	---	---	304x152	12x6	38	1 1/2	0.36	31x16x5
PCP-007	---	---	304x203	12x8	38	1 1/2	0.48	31x21x5
PCP-008	---	---	304x254	12x10	38	1 1/2	0.60	31x26x5
PCP-009	304x304	12x12	---	---	38	1 1/2	0.72	3131x5
PCP-010	---	---	355x152	14x6	38	1 1/2	0.42	36x16x5
PCP-011	---	---	355x203	14x8	38	1 1/2	0.56	36x21x5
PCP-012	---	---	355x254	14x10	38	1 1/2	0.70	36x26x5
PCP-013	---	---	355x304	14x12	38	1 1/2	0.84	36x31x5
PCP-014	355x355	14x14	---	---	38	1 1/2	0.98	36x36x5
PCP-015	---	---	406x152	16x6	38	1 1/2	0.48	41x16x5
PCP-016	---	---	406x203	16x8	38	1 1/2	0.64	41x21x5
PCP-017	---	---	406x254	16x10	38	1 1/2	0.80	41x26x5
PCP-018	---	---	406x304	16x12	38	1 1/2	0.96	41x31x5
PCP-019	---	---	406x355	16x14	38	1 1/2	1.12	41x36x5
PCP-020	406x406	16x16	---	---	38	1 1/2	1.12	41x41x5
PCP-021	---	---	457x152	18x6	38	1 1/2	0.54	46x16x5
PCP-022	---	---	457x203	18x8	38	1 1/2	0.72	46x21x5
PCP-023	---	---	457x254	18x10	38	1 1/2	0.90	46x26x5
PCP-024	---	---	457x304	18x12	38	1 1/2	1.08	46x31x5
PCP-025	---	---	457x355	18x14	38	1 1/2	1.26	46x36x5
Clave	Cuadrado		Rectangular		Fondo		Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	Kg	cm
PCP-026	---	---	457x406	18x16	38	1 1/2	1.26	46x41x5
PCP-027	457x457	18x18	---	---	38	1 1/2	1.44	46x46x5
PCP-028	---	---	508x152	20x6	38	1 1/2	0.60	51x16x5
PCP-029	---	---	508x203	20x8	38	1 1/2	0.80	51x21x5
PCP-030	---	---	508x254	20x10	38	1 1/2	1.00	51x26x5
PCP-031	---	---	508x304	20x12	38	1 1/2	2.00	51x31x5
PCP-032	---	---	508x355	20x14	38	1 1/2	1.40	51x36x5
PCP-033	---	---	508x406	20x16	38	1 1/2	1.60	51x41x5
PCP-034	---	---	508x457	20x18	38	1 1/2	1.80	51x46x5
PCP-035	508x508	20x20	---	---	38	1 1/2	1.80	51x51x5
PCP-036	---	---	558x152	22x6	38	1 1/2	0.66	56x16x5
PCP-037	---	---	558x203	22x8	38	1 1/2	0.88	56x21x5
PCP-038	---	---	558x254	22x10	38	1 1/2	1.10	56x26x5
PCP-039	---	---	558x304	22x12	38	1 1/2	1.32	56x31x5
PCP-040	---	---	558x355	22x14	38	1 1/2	1.54	56x36x5
PCP-041	---	---	558x406	22x16	38	1 1/2	1.76	56x41x5
PCP-042	---	---	558x457	22x18	38	1 1/2	1.98	56x46x5
PCP-043	---	---	558x508	22x20	38	1 1/2	2.10	56x51x5
PCP-044	558x558	22x22	---	---	38	1 1/2	2.20	56x56x5
PCP-045	---	---	609x152	24x6	38	1 1/2	0.72	61x16x5
PCP-046	---	---	609x203	24x8	38	1 1/2	0.96	61x21x5
PCP-047	---	---	609x254	24x10	38	1 1/2	1.20	61x26x5
PCP-048	---	---	609x304	24x12	38	1 1/2	1.44	61x31x5
PCP-049	---	---	609x355	24x14	38	1 1/2	1.68	61x36x5
PCP-050	---	---	609x406	24x16	38	1 1/2	1.92	61x41x5
Clave	Cuadrado		Rectangular		Fondo		Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	Kg	cm
PCP-051	---	---	609x457	24x18	38	1 1/2	2.16	61x46x5
PCP-052	---	---	609x508	24x20	38	1 1/2	2.40	61x51x5
PCP-053	---	---	609x558	24x22	38	1 1/2	2.40	61x56x5
PCP-054	609x609	24x24	---	---	38	1 1/2	2.64	61x61x5
PCP-055	---	---	660x152	26x6	38	1 1/2	0.78	67x16x5
PCP-056	---	---	660x203	26x8	38	1 1/2	1.04	67x21x5
PCP-057	---	---	660x254	26x10	38	1 1/2	1.30	67x26x5
PCP-058	---	---	660x304	26x12	38	1 1/2	1.56	67x31x5
PCP-059	---	---	660x355	26x14	38	1 1/2	1.82	67x36x5
PCP-060	---	---	660x406	26x16	38	1 1/2	2.08	67x41x5
PCP-061	---	---	660x457	26x18	38	1 1/2	2.34	67x46x5
PCP-062	---	---	660x508	26x20	38	1 1/2	2.60	67x51x5
PCP-063	---	---	660x558	26x22	38	1 1/2	2.86	67x56x5
PCP-064	---	---	660x609	26x24	38	1 1/2	2.89	67x61x5
PCP-065	660x660	26x26	---	---	38	1 1/2	3.12	67x67x5
PCP-066	---	---	711x152	28x6	38	1 1/2	0.84	72x16x5
PCP-067	---	---	711x203	28x8	38	1 1/2	1.12	72x21x5
PCP-068	---	---	711x254	28x10	38	1 1/2	1.40	72x26x5
PCP-069	---	---	711x304	28x12	38	1 1/2	1.68	72x31x5
PCP-070	---	---	711x355	28x14	38	1 1/2	1.96	72x36x5
PCP-071	---	---	711x406	28x16	38	1 1/2	2.24	72x41x5
PCP-072	---	---	711x457	28x18	38	1 1/2	2.52	72x46x5
PCP-073	---	---	711x508	28x20	38	1 1/2	2.80	72x51x5
PCP-074	---	---	711x558	28x22	38	1 1/2	3.08	72x56x5
PCP-075	---	---	711x609	28x24	38	1 1/2	3.36	72x61x5
Clave	Cuadrado		Rectangular		Fondo		Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	Kg	cm
PCP-076	---	---	711x660	28x26	38	1 1/2	3.54	72x67x5
PCP-077	711x711	28x28	---	---	38	1 1/2	3.64	72x72x5
PCP-078	---	---	762x152	30x6	38	1 1/2	0.90	77x16x5
PCP-079	---	---	762x203	30x8	38	1 1/2	1.20	77x21x5
PCP-080	---	---	762x254	30x10	38	1 1/2	1.50	77x26x5
PCP-081	---	---	762x304	30x12	38	1 1/2	1.80	77x31x5
PCP-082	---	---	762x355	30x14	38	1 1/2	2.10	77x36x5
PCP-083	---	---	762x406	30x16	38	1 1/2	2.40	77x41x5
PCP-084	---	---	762x457	30x18	38	1 1/2	2.70	77x46x5
PCP-085	---	---	762x508	30x20	38	1 1/2	3.00	77x51x5
PCP-086	---	---	762x558	30x22	38	1 1/2	3.32	77x56x5
PCP-087	---	---	762x609	30x24	38	1 1/2	3.60	77x61x5
PCP-088	---	---	762x660	30x26	38	1 1/2	3.90	77x67x5
PCP-089	---	---	762x711	30x28	38	1 1/2	4.00	77x72x5
PCP-090	762x762	30x30	---	---	38	1 1/2	4.50	77x77x5
PCP-091	---	---	812x152	32x6	38	1 1/2	0.96	82x16x5
PCP-092	---	---	812x203	32x8	38	1 1/2	1.28	82x21x5
PCP-093	---	---	812x254	32x10	38	1 1/2	1.60	82x26x5
PCP-094	---	---	812x304	32x12	38	1 1/2	1.92	82x31x5
PCP-095	---	---	812x355	32x14	38	1 1/2	2.24	82x36x5
PCP-096	---	---	812x406	32x16	38	1 1/2	2.56	82x41x5
PCP-097	---	---	812x457	32x18	38	1 1/2	2.88	82x46x5
PCP-098	---	---	812x508	32x20	38	1 1/2	3.20	82x51x5
PCP-099	---	---	812x558	32x22	38	1 1/2	3.52	82x56x5
PCP-100	---	---	812x609	32x24	38	1 1/2	3.84	82x61x5
Clave	Cuadrado		Rectangular		Fondo		Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	Kg	cm
PCP-101	---	---	812x660	32x26	38	1 1/2	4.16	82x67x5
PCP-102	---	---	812x711	32x28	38	1 1/2	4.48	82x72x5
PCP-103	---	---	812x762	32x30	38	1 1/2	4.80	82x77x5
PCP-104	---	---	863x152	34x6	38	1 1/2	1.02	87x16x5
PCP-105	---	---	863x203	34x8	38	1 1/2	1.36	87x21x5
PCP-106	---	---	863x254	34x10	38	1 1/2	1.70	87x26x5
PCP-107	---	---	863x304	34x12	38	1 1/2	2.04	87x31x5
PCP-108	---	---	863x355	34x14	38	1 1/2	2.38	87x36x5
PCP-109	---	---	863x406	34x16	38	1 1/2	2.76	87x41x5
PCP-110	---	---	863x457	34x18	38	1 1/2	3.06	87x46x5
PCP-111	---	---	863x508	34x20	38	1 1/2	3.40	87x51x5
PCP-112	---	---	863x558	34x22	38	1 1/2	3.74	87x56x5
PCP-113	---	---	863x609	34x24	38	1 1/2	4.08	87x61x5
PCP-114	---	---	863x660	34x26	38	1 1/2	4.42	87x67x5
PCP-115	---	---	863x711	34x28	38	1 1/2	4.76	87x72x5
PCP-116	---	---	863x762	34x30	38	1 1/2	5.10	87x77x5
PCP-117	---	---	914x152	36x6	38	1 1/2	1.08	92x16x5
PCP-118	---	---	914x203	36x8	38	1 1/2	1.44	92x21x5
PCP-119	---	---	914x254	36x10	38	1 1/2	1.80	92x26x5
PCP-120	---	---	914x304	36x12	38	1 1/2	2.16	92x31x5
PCP-121	---	---	914x355	36x14	38	1 1/2	2.52	92x36x5
PCP-122	---	---	914x406	36x16	38	1 1/2	2.88	92x41x5
PCP-123	---	---	914x457	36x18	38	1 1/2	3.24	92x46x5
PCP-124	---	---	914x508	36x20	38	1 1/2	3.50	92x51x5
PCP-125	---	---	914x558	36x22	38	1 1/2	3.96	92x56x5
Clave	Cuadrado		Rectangular		Fondo		Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	Kg	cm
PCP-126	---	---	914x609	36x24	38	1 1/2	4.32	92x61x5
PCP-127	---	---	914x660	36x26	38	1 1/2	4.68	92x67x5
PCP-128	---	---	914x711	36x28	38	1 1/2	5.04	92x72x5
PCP-129	---	---	914x762	36x30	38	1 1/2	5.40	92x77x5
PCP-130	---	---	965x152	38x6	38	1 1/2	1.14	97x16x5
PCP-131	---	---	965x203	38x8	38	1 1/2	1.52	97x21x5
PCP-132	---	---	965x254	38x10	38	1 1/2	1.90	97x26x5
PCP-133	---	---	965x304	38x12	38	1 1/2	2.28	97x31x5
PCP-134	---	---	965x355	38x14	38	1 1/2	2.66	97x36x5
PCP-135	---	---	965x406	38x16	38	1 1/2	3.04	97x41x5
PCP-136	---	---	965x457	38x18	38	1 1/2	3.42	97x46x5
PCP-137	---	---	965x508	38x20	38	1 1/2	3.90	97x51x5
PCP-138	---	---	965x558	38x22	38	1 1/2	4.18	97x56x5
PCP-139	---	---	965x609	38x24	38	1 1/2	4.56	97x61x5
PCP-140	---	---	965x660	38x26	38	1 1/2	4.94	97x67x5
PCP-141	---	---	965x711	38x28	38	1 1/2	5.32	97x72x5
PCP-142	---	---	965x762	38x30	38	1 1/2	5.70	97x77x5

Montaje
Perforar panel o tabla roca, al tamaño correspondiente de la rejilla (Dimensiones A y B), fijar rejilla contra el ducto.
Perforar pared al tamaño correspondiente de la rejilla (Dimensiones A y B), fijar rejilla contra el ducto. VentDepot Team, monta instala y da mantenimiento a cualquiera de nuestros equipos, de forma rápida, segur y conforme a las normas industriales. Suministro y servicio a toda la República mexicana.

Cualidades
	Marco rígido de aluminio. Álabes direccionables de forma manual en la parte frontral, dirigiendo el caudal a donde se requiera.
	Álabes traseros direccionables por medio de una palanca permitiendo una forma fácil de dirigir el caudal a donde se requiera.
	Diseño altamente estético. 100% aluminio.
