Equipos y Productos: TurboRejillas: DobleAire.

Características Generales

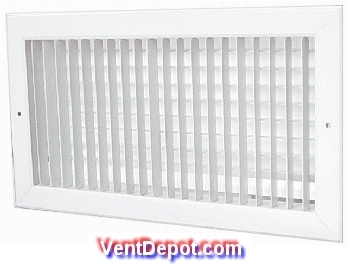

Esta TurboRejilla DobleAire VentDepot, es de doble deflexión, lo que permite un control de la dirección y volumen del flujo de aire.

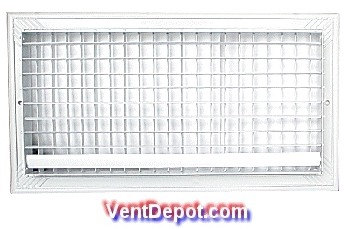

Cada una de las aletas se ajusta individualmente.

Una separación entre aletas de 3/4".

Acabado en pintura electrostática horneada blanco dover.

Aplicaciones

Para uso en: Cualquier ramo industrial.

Garantía

1 (Un) año de Garantía certificado por escrito, sujeto a las claúsulas.

Características Técnicas Específicas

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

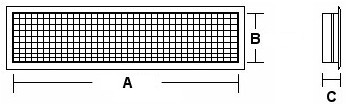

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-001
--- --- 203x101 8x4 38 1 1/2 111 0.16 21x11x5

DBA-002
--- --- 203x152 8x6 38 1 1/2 167 0.24 21x16x5

DBA-003
203x203 8x8 --- --- 38 1 1/2 222 0.32 21x21x5

DBA-004
--- --- 254x101 10x4 38 1 1/2 139 0.20 26x11x5

DBA-005
--- --- 254x152 10x6 38 1 1/2 208 0.30 26x16x5

DBA-006
--- --- 254x203 10x8 38 1 1/2 278 0.40 26x21x5

DBA-007
254x254 10x10 --- --- 38 1 1/2 347 0.50 26x26x5

DBA-008
--- --- 304x101 12x4 38 1 1/2 167 0.24 31x11x5

DBA-009
--- --- 304x152 12x6 38 1 1/2 250 0.36 31x16x5

DBA-010
--- --- 304x203 12x8 38 1 1/2 333 0.48 31x21x5

DBA-011
--- --- 304x254 12x10 38 1 1/2 416 0.60 31x26x5

DBA-012
304x304 12x12 --- --- 38 1 1/2 500 0.72 31x31x5

DBA-013
--- --- 355x101 14x4 38 1 1/2 194 0.28 36x11x5

DBA-014
--- --- 355x152 14x6 38 1 1/2 291 0.42 36x16x5

DBA-015
--- --- 355x203 14x8 38 1 1/2 389 0.56 36x21x5

DBA-016
--- --- 355x254 14x10 38 1 1/2 486 0.70 36x26x5

DBA-017
--- --- 355x304 14x12 38 1 1/2 583 0.84 36x31x5

DBA-018
355x355 14x14 --- --- 38 1 1/2 680 0.98 36x36x5

DBA-019
--- --- 406x101 16x4 38 1 1/2 222 0.32 41x11x5

DBA-020
--- --- 406x152 16x6 38 1 1/2 333 0.48 41x16x5

DBA-021
--- --- 406x203 16x8 38 1 1/2 444 0.64 41x21x5

DBA-022
--- --- 406x254 16x10 38 1 1/2 555 0.80 41x26x5

DBA-023
--- --- 406x304 16x12 38 1 1/2 666 0.96 41x31x5

DBA-024
--- --- 406x355 16x14 38 1 1/2 777 1.12 41x36x5

DBA-025
406x406 16x16 --- --- 38 1 1/2 888 1.15 41x41x5

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-026
--- --- 457x101 18x4 38 1 1/2 250 0.36 46x11x5

DBA-027
--- --- 457x152 18x6 38 1 1/2 375 0.54 46x16x5

DBA-028
--- --- 457x203 18x8 38 1 1/2 500 0.72 46x21x5

DBA-029
--- --- 457x254 18x10 38 1 1/2 624 0.90 46x26x5

DBA-030
--- --- 457x304 18x12 38 1 1/2 749 1.08 46x31x5

DBA-031
--- --- 457x355 18x14 38 1 1/2 874 1.26 46x36x5

DBA-032
--- --- 457x406 18x16 38 1 1/2 999 1.28 46x41x5

DBA-033
457x457 18x18 --- --- 38 1 1/2 1124 1.44 46x46x5

DBA-034
--- --- 508x101 20x4 38 1 1/2 278 0.40 51x11x5

DBA-035
--- --- 508x152 20x6 38 1 1/2 416 0.60 51x16x5

DBA-036
--- --- 508x203 20x8 38 1 1/2 555 0.80 51x21x5

DBA-037
--- --- 508x254 20x10 38 1 1/2 694 1.00 51x26x5

DBA-038
--- --- 508x304 20x12 38 1 1/2 833 2.00 51x31x5

DBA-039
--- --- 508x355 20x14 38 1 1/2 971 1.40 51x36x5

DBA-040
--- --- 508x406 20x16 38 1 1/2 1110 1.60 51x41x5

DBA-041
--- --- 508x457 20x18 38 1 1/2 1249 6.00 51x46x5

DBA-042
508x508 20x20 --- --- 38 1 1/2 1388 1.80 51x51x5

DBA-043
--- --- 558x101 22x4 38 1 1/2 305 0.44 56x11x5

DBA-044
--- --- 558x152 22x6 38 1 1/2 458 0.66 56x16x5

DBA-045
--- --- 558x203 22x8 38 1 1/2 611 0.88 56x21x5

DBA-046
--- --- 558x254 22x10 38 1 1/2 763 1.10 56x26x5

DBA-047
--- --- 558x304 22x12 38 1 1/2 916 1.32 56x31x5

DBA-048
--- --- 558x355 22x14 38 1 1/2 1068 1.54 56x36x5

DBA-049
--- --- 558x406 22x16 38 1 1/2 1221 1.76 56x41x5

DBA-050
--- --- 558x457 22x18 38 1 1/2 1374 1.98 56x46x5

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-051
--- --- 558x508 22x20 38 1 1/2 1526 2.00 56x51x5

DBA-052
558x558 22x22 --- --- 38 1 1/2 1679 2.20 56x56x5

DBA-053
--- --- 609x101 24x4 38 1 1/2 333 0.48 61x11x5

DBA-054
--- --- 609x152 24x6 38 1 1/2 500 0.72 61x16x5

DBA-055
--- --- 609x203 24x8 38 1 1/2 666 0.96 61x21x5

DBA-056
--- --- 609x254 24x10 38 1 1/2 833 1.30 61x26x5

DBA-057
--- --- 609x304 24x12 38 1 1/2 999 1.44 61x31x5

DBA-058
--- --- 609x355 24x14 38 1 1/2 1166 1.68 61x36x5

DBA-059
--- --- 609x406 24x16 38 1 1/2 1332 1.92 61x41x5

DBA-060
--- --- 609x457 24x18 38 1 1/2 1499 2.16 61x46x5

DBA-061
--- --- 609x508 24x20 38 1 1/2 1665 2.40 61x51x5

DBA-062
--- --- 609x558 24x22 38 1 1/2 1832 2.50 61x56x5

DBA-063
609x609 24x24 --- --- 38 1 1/2 1998 2.64 61x61x5

DBA-064
--- --- 660x101 26x4 38 1 1/2 361 0.52 61x11x5

DBA-065
--- --- 660x152 26x6 38 1 1/2 541 0.78 61x16x5

DBA-066
--- --- 660x203 26x8 38 1 1/2 722 1.04 67x21x5

DBA-067
--- --- 660x254 26x10 38 1 1/2 902 1.30 67x26x5

DBA-068
--- --- 660x304 26x12 38 1 1/2 1082 1.56 67x31x5

DBA-069
--- --- 660x355 26x14 38 1 1/2 1263 1.82 67x36x5

DBA-070
--- --- 660x406 26x16 38 1 1/2 1443 2.08 67x41x5

DBA-071
--- --- 660x457 26x18 38 1 1/2 1623 2.34 67x46x5

DBA-072
--- --- 660x508 26x20 38 1 1/2 1804 2.60 67x51x5

DBA-073
--- --- 660x558 26x22 38 1 1/2 1984 2.86 67x56x5

DBA-074
--- --- 660x609 26x24 38 1 1/2 2165 2.89 67x61x5

DBA-075
660x660 26x26 --- --- 38 1 1/2 2345 3.12 67x67x5

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-076
--- --- 711x101 28x4 38 1 1/2 389 0.56 72x11x5

DBA-077
--- --- 711x152 28x6 38 1 1/2 583 0.84 72x16x5

DBA-078
--- --- 711x203 28x8 38 1 1/2 777 1.12 72x21x5

DBA-079
--- --- 711x254 28x10 38 1 1/2 971 1.40 72x26x5

DBA-080
--- --- 711x304 28x12 38 1 1/2 1166 1.68 72x31x5

DBA-081
--- --- 711x355 28x14 38 1 1/2 1360 1.96 72x36x5

DBA-082
--- --- 711x406 28x16 38 1 1/2 1554 2.24 72x41x5

DBA-083
--- --- 711x457 28x18 38 1 1/2 1748 2.52 72x46x5

DBA-084

711x508 28x20 38 1 1/2 1943 2.80 72x55x5

DBA-085
--- --- 711x558 28x22 38 1 1/2 2137 3.08 72x56x5

DBA-086
--- --- 711x609 28x24 38 1 1/2 2331 3.36 72x61x5

DBA-087
--- --- 711x660 28x26 38 1 1/2 2525 6.39 72x67x5

DBA-088
711x711 28x28 --- --- 38 1 1/2 2720 3.64 72x72x5

DBA-089
--- --- 762x101 30x4 38 1 1/2 416 0.60 77x11x5

DBA-090
--- --- 762x152 30x6 38 1 1/2 624 0.90 77x16x5

DBA-091
--- --- 762x203 30x8 38 1 1/2 833 1.20 77x21x5

DBA-092
--- --- 762x254 30x10 38 1 1/2 1041 1.50 77x26x5

DBA-093
--- --- 762x304 30x12 38 1 1/2 1249 1.80 77x31x5

DBA-094
--- --- 762x355 30x14 38 1 1/2 1457 2.10 77x36x5

DBA-095
--- --- 762x406 30x16 38 1 1/2 1665 2.40 77x41x5

DBA-096
--- --- 762x457 30x18 38 1 1/2 1873 2.70 77x46x5

DBA-097
--- --- 762x508 30x20 38 1 1/2 2081 3.00 77x51x5

DBA-098
--- --- 762x558 30x22 38 1 1/2 2289 3.30 77x56x5

DBA-099
--- --- 762x609 30x24 38 1 1/2 2498 3.60 77x61x5

DBA-100
--- --- 762x660 30x26 38 1 1/2 2706 3.90 77x67x5

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-101
--- --- 762x711 30x28 38 1 1/2 2914 4.00 77x72x5

DBA-102
--- --- 812x101 32x4 38 1 1/2 444 0.64 82x11x5

DBA-103
--- --- 812x152 32x6 38 1 1/2 666 0.96 82x16x5

DBA-104
--- --- 812x203 32x8 38 1 1/2 888 1.28 82x21x5

DBA-105
--- --- 812x254 32x10 38 1 1/2 1110 1.60 82x26x5

DBA-106
--- --- 812x304 32x12 38 1 1/2 1332 1.92 82x31x5

DBA-107
--- --- 812x355 32x14 38 1 1/2 1554 2.24 82x36x5

DBA-108
--- --- 812x406 32x16 38 1 1/2 1776 2.56 82x41x5

DBA-109
--- --- 812x457 32x18 38 1 1/2 1998 2.88 82x46x5

DBA-110
--- --- 812x508 32x20 38 1 1/2 2220 3.20 82x51x5

DBA-111
--- --- 812x558 32x22 38 1 1/2 2442 3.40 82x56x5

DBA-112
--- --- 812x609 32x24 38 1 1/2 2664 3.84 82x61x5

DBA-113
--- --- 812x660 32x26 38 1 1/2 2886 4.16 82x67x5

DBA-114
--- --- 812x711 32x28 38 1 1/2 3108 4.48 82x72x5

DBA-115
--- --- 863x101 34x4 38 1 1/2 472 0.68 87x11x5

DBA-116
--- --- 863x152 34x6 38 1 1/2 708 1.02 87x16x5

DBA-117
--- --- 863x203 34x8 38 1 1/2 944 1.36 87x21x5

DBA-118
--- --- 863x254 34x10 38 1 1/2 1179 1.70 87x26x5

DBA-119
--- --- 863x304 34x12 38 1 1/2 1415 2.04 87x31x5

DBA-120
--- --- 863x355 34x14 38 1 1/2 1651 2.38 87x36x5

DBA-121
--- --- 863x406 34x16 38 1 1/2 1887 2.76 87x41x5

DBA-122
--- --- 863x457 34x18 38 1 1/2 2123 3.06 87x46x5

DBA-123
--- --- 863x508 34x20 38 1 1/2 2359 3.40 87x51x5

DBA-124
--- --- 863x558 34x22 38 1 1/2 2595 3.74 87x55x5

DBA-125
--- --- 863x609 34x24 38 1 1/2 2831 4.08 87x61x5

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-126
--- --- 863x660 34x26 38 1 1/2 3066 4.42 87x57x5

DBA-127
--- --- 863x711 34x28 38 1 1/2 3302 4.76 87x72x5

DBA-128
--- --- 914x101 36x4 38 1 1/2 500 0.72 92x11x5

DBA-129
--- --- 914x152 36x6 38 1 1/2 749 1.08 92x16x5

DBA-130
--- --- 914x203 36x8 38 1 1/2 999 1.44 92x21x5

DBA-131
--- --- 914x254 36x10 38 1 1/2 1249 1.80 92x26x5

DBA-132
--- --- 914x304 36x12 38 1 1/2 1499 2.16 92x31x5

DBA-133
--- --- 914x355 36x14 38 1 1/2 1748 2.52 92x36x5

DBA-134
--- --- 914x406 36x16 38 1 1/2 1998 2.88 92x41x5

DBA-135
--- --- 914x457 36x18 38 1 1/2 2248 3.24 92x46x5

DBA-136
--- --- 914x508 36x20 38 1 1/2 2498 3.50 92x51x5

DBA-137
--- --- 914x558 36x22 38 1 1/2 2747 3.96 92x56x5

DBA-138
914x609 36x24 38 1 1/2 2997 4.32 92x61x5

DBA-139
--- --- 914x660 36x26 38 1 1/2 3247 4.68 92x67x5

DBA-140
--- --- 914x711 36x28 38 1 1/2 3497 5.04 92x72x5

DBA-141
--- --- 965x101 38x4 38 1 1/2 527 0.76 97x11x5

DBA-142
--- --- 965x152 38x6 38 1 1/2 791 1.14 97x16x5

DBA-143
--- --- 965x203 38x8 38 1 1/2 1055 1.52 97x21x5

DBA-144
--- --- 965x254 38x10 38 1 1/2 1318 1.90 97x26x5

DBA-145
--- --- 965x304 38x12 38 1 1/2 1582 2.28 97x31x5

DBA-146
--- --- 965x355 38x14 38 1 1/2 1845 2.66 97x36x5

DBA-147
--- --- 965x406 38x16 38 1 1/2 2109 3.04 97x41x5

DBA-148
--- --- 965x457 38x18 38 1 1/2 2373 3.42 97x46x5

DBA-149
--- --- 965x508 38x20 38 1 1/2 2636 3.80 97x51x5

DBA-150
--- --- 965x558 38x22 38 1 1/2 2900 4.18 97x56x5

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-151
--- --- 965x609 38x24 38 1 1/2 3164 4.56 97x61x5

DBA-152
--- --- 965x660 38x26 38 1 1/2 3427 4.94 97x67x5

DBA-153
--- --- 962x711 38x28 38 1 1/2 3691 5.32 97x72x5

DBA-154
--- --- 1016x101 40x4 38 1 1/2 555 0.80 102x11x5

DBA-155
--- --- 1016x152 40x6 38 1 1/2 833 1.20 102x16x5

DBA-156
--- --- 1016x203 40x8 38 1 1/2 1110 1.60 102x21x5

DBA-157
--- --- 1016x254 40x10 38 1 1/2 1388 2.00 102x26x5

DBA-158
--- --- 1016x304 40x12 38 1 1/2 1665 2.40 102x31x5

DBA-159
--- --- 1016x355 40x14 38 1 1/2 1943 2.80 102x36x5

DBA-160
--- --- 1016x406 40x16 38 1 1/2 2220 3.20 102x41x5

DBA-161
--- --- 1016x457 40x18 38 1 1/2 2498 3.60 102x46x5

DBA-162
--- --- 1016x508 40x20 38 1 1/2 2775 4.00 102x51x5

DBA-163
--- --- 1016x558 40x22 38 1 1/2 3053 4.40 102x56x5

DBA-164
--- --- 1016x609 40x24 38 1 1/2 3330 4.80 102x61x5

DBA-165
--- --- 1016x660 40x26 38 1 1/2 3608 5.20 102x67x5

DBA-166
--- --- 1066x711 40x28 38 1 1/2 3885 5.60 107x72x5

DBA-167
--- --- 1066x101 42x4 38 1 1/2 583 0.84 107x11x5

DBA-168
--- --- 1066x152 42x6 38 1 1/2 874 1.26 107x16x5

DBA-169
--- --- 1066x203 42x8 38 1 1/2 1166 1.68 107x21x5

DBA-170
--- --- 1066x254 42x10 38 1 1/2 1457 2.10 107x26x5

DBA-171
--- --- 1066x304 42x12 38 1 1/2 1748 2.52 107x31x5

DBA-172
--- --- 1066x355 42x14 38 1 1/2 2040 2.94 107x36x5

DBA-173
--- --- 1066x406 42x16 38 1 1/2 2331 3.36 107x41x5

DBA-174
--- --- 1066x457 42x18 38 1 1/2 2622 3.70 107x46x5

DBA-175
--- --- 1066x508 42x20 38 1 1/2 2914 4.20 107x51x5

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-176
--- --- 1066x558 42x22 38 1 1/2 3205 4.62 107x56x5

DBA-177
--- --- 1066x609 42x24 38 1 1/2 3497 5.04 107x61x5

DBA-178
--- --- 1066x660 42x26 38 1 1/2 3788 5.46 107x67x5

DBA-179
--- --- 1066x711 42x28 38 1 1/2 4079 5.88 107x72x5

DBA-180
--- --- 1117x101 44x4 38 1 1/2 611 0.88 112x11x5

DBA-181
--- --- 1117x152 44x6 38 1 1/2 916 1.32 112x16x5

DBA-182
--- --- 1117x203 44x8 38 1 1/2 1221 1.79 112x21x5

DBA-183
--- --- 1117x254 44x10 38 1 1/2 1526 2.20 112x26x5

DBA-184
--- --- 1117x304 44x12 38 1 1/2 1832 2.64 112x31x5

DBA-185
--- --- 1111x355 44x14 38 1 1/2 2137 3.08 112x36x5

DBA-186
--- --- 1117x406 44x16 38 1 1/2 2442 3.52 112x41x5

DBA-187
--- --- 1117x457 44x18 38 1 1/2 2747 3.96 112x46x5

DBA-188
--- --- 1117x508 44x20 38 1 1/2 3053 4.40 112x51x5

DBA-189
--- --- 1117x558 44x22 38 1 1/2 3358 4.84 112x56x5

DBA-190
--- --- 1117x609 44x24 38 1 1/2 3663 5.28 112x61x5

DBA-191
--- --- 1117x660 44x26 38 1 1/2 3968 5.72 112x67x5

DBA-192
--- --- 1117x711 44x28 38 1 1/2 4274 6.16 112x72x5

DBA-193
--- --- 1168x101 46x4 38 1 1/2 638 0.92 117x11x5

DBA-194
--- --- 1168x152 46x6 38 1 1/2 957 1.38 117x16x5

DBA-195
--- --- 1168x203
46x8
38 1 1/2 1277 1.84 117x21x5

DBA-196
--- --- 1168x254 46x10 38 1 1/2 1596 2.30 117x26x5

DBA-197
--- --- 1168x304 46x12 38 1 1/2 1915 2.76 117x31x5

DBA-198
--- --- 1168x355 46x14 38 1 1/2 2234 3.22 117x36x5

DBA-199
--- --- 1168x406 46x16 38 1 1/2 2553 3.68 117x41x5

DBA-200
--- --- 1168x457 46x18 38 1 1/2 2872 4.14 117x46x5

Clave
Cuadrado Rectangular Fondo
Capacidad Máxima de Difusión

Peso y Dimensiones con Empaque Plástico

AxB AxB AxB AxB C C

mm pulg mm pulg mm pulg m3/hr Kg cm

DBA-201
--- --- 1168x508 46x20 38 1 1/2 3191 4.60 117x51x5

DBA-202
--- --- 1168x558 46x22 38 1 1/2 3510 5.06 117x56x5

DBA-203
--- --- 1168x609 46x24 38 1 1/2 3830 5.52 117x61x5

DBA-204
--- --- 1168x660 46x26 38 1 1/2 4149 5.98 117x67x5

DBA-205
--- --- 1168x711 46x28 38 1 1/2 4668 6.44 117x72x5

DBA-206
--- --- 1219x101 48x4 38 1 1/2 666 0.96 122x11x5

DBA-207
--- --- 1219x152 48x6 38 1 1/2 999 1.44 122x16x5

DBA-208
--- --- 1219x203 48x8 38 1 1/2 1332 1.92 122x21x5

DBA-209
--- --- 1219x254 48x10 38 1 1/2 1665 2.40 122x26x5

DBA-210
--- --- 1219x304 48x12 38 1 1/2 1998 2.88 122x61x5

DBA-211
--- --- 1219x355 48x14 38 1 1/2 2331 3.36 122x36x5

DBA-212
--- --- 1219x406 48x16 38 1 1/2 2664 3.84 122x41x5

DBA-213
--- --- 1219x457 48x18 38 1 1/2 2997 4.32 122x46x5

DBA-214
--- --- 1219x508 48x20 38 1 1/2 3330 4.80 122x51x5

DBA-215
--- --- 1219x558 48x22 38 1 1/2 3663 8.25 122x56x5

DBA-216
--- --- 1219x609 48x24 38 1 1/2 3996 5.76 122x61x5

DBA-217
--- --- 1219x660 48x26 38 1 1/2 4329 6.24 122x57x5

DBA-218
--- --- 1219x711 48x28 38 1 1/2 4662 6.72 122x72x5

| Orden de Compra | Solicitar Precios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

Dimensiones

Montaje

Perforar panel o tabla roca, al tamaño correspondiente de la rejilla (Dimensiones A y B), fijar rejilla contra el ducto.

Perforar pared al tamaño correspondiente de la rejilla (Dimensiones A y B), fijar rejilla contra el ducto.

VentDepot Team, monta instala y da mantenimiento a cualquiera de nuestros equipos, de forma rápida, segur y conforme a las normas industriales.

Suministro y servicio a toda la República mexicana.

Cualidades

Marco rígido de aluminio.

Álabes direccionables de forma manual, dirigiendo el caudal a donde se requiera.

Diseño altamente estético.

100% aluminio.

| Inicio | Registrate | Productos | Servicios | Materiales | Especiales | Precios | AutoCad | Orden de Compra | Obras | Ofertas | Seminarios | La Empresa | Chat ICQo Messenger | Correo | Información Técnica | Sitios de Interés | Otros | Lo Nuevo | Intranet | Imprimir |

Copyright © 1996-2001, Todo en Ventilación S.A. de C.V. tiene todos los derechos reservados.

VentDepot México: (52) (55) 5822-1516. TelFax: (52) (55) 5825-0752. mexico@ventdepot.com

VentDepot Perú: (051) 445-5693. TelFax: (051) 436-7042. peru@ventdepot.com

VentDepot USA: 4336 Gessener, Houston, Texas, USA. 77041, P.O. Box. usa@ventdepot.com

Características Generales
Esta TurboRejilla DobleAire VentDepot, es de doble deflexión, lo que permite un control de la dirección y volumen del flujo de aire. Cada una de las aletas se ajusta individualmente. Una separación entre aletas de 3/4". Acabado en pintura electrostática horneada blanco dover.
Aplicaciones
Para uso en: Cualquier ramo industrial.
Garantía
1 (Un) año de Garantía certificado por escrito, sujeto a las claúsulas.

Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-001	---	---	203x101	8x4	38	1 1/2	111	0.16	21x11x5
DBA-002	---	---	203x152	8x6	38	1 1/2	167	0.24	21x16x5
DBA-003	203x203	8x8	---	---	38	1 1/2	222	0.32	21x21x5
DBA-004	---	---	254x101	10x4	38	1 1/2	139	0.20	26x11x5
DBA-005	---	---	254x152	10x6	38	1 1/2	208	0.30	26x16x5
DBA-006	---	---	254x203	10x8	38	1 1/2	278	0.40	26x21x5
DBA-007	254x254	10x10	---	---	38	1 1/2	347	0.50	26x26x5
DBA-008	---	---	304x101	12x4	38	1 1/2	167	0.24	31x11x5
DBA-009	---	---	304x152	12x6	38	1 1/2	250	0.36	31x16x5
DBA-010	---	---	304x203	12x8	38	1 1/2	333	0.48	31x21x5
DBA-011	---	---	304x254	12x10	38	1 1/2	416	0.60	31x26x5
DBA-012	304x304	12x12	---	---	38	1 1/2	500	0.72	31x31x5
DBA-013	---	---	355x101	14x4	38	1 1/2	194	0.28	36x11x5
DBA-014	---	---	355x152	14x6	38	1 1/2	291	0.42	36x16x5
DBA-015	---	---	355x203	14x8	38	1 1/2	389	0.56	36x21x5
DBA-016	---	---	355x254	14x10	38	1 1/2	486	0.70	36x26x5
DBA-017	---	---	355x304	14x12	38	1 1/2	583	0.84	36x31x5
DBA-018	355x355	14x14	---	---	38	1 1/2	680	0.98	36x36x5
DBA-019	---	---	406x101	16x4	38	1 1/2	222	0.32	41x11x5
DBA-020	---	---	406x152	16x6	38	1 1/2	333	0.48	41x16x5
DBA-021	---	---	406x203	16x8	38	1 1/2	444	0.64	41x21x5
DBA-022	---	---	406x254	16x10	38	1 1/2	555	0.80	41x26x5
DBA-023	---	---	406x304	16x12	38	1 1/2	666	0.96	41x31x5
DBA-024	---	---	406x355	16x14	38	1 1/2	777	1.12	41x36x5
DBA-025	406x406	16x16	---	---	38	1 1/2	888	1.15	41x41x5
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-026	---	---	457x101	18x4	38	1 1/2	250	0.36	46x11x5
DBA-027	---	---	457x152	18x6	38	1 1/2	375	0.54	46x16x5
DBA-028	---	---	457x203	18x8	38	1 1/2	500	0.72	46x21x5
DBA-029	---	---	457x254	18x10	38	1 1/2	624	0.90	46x26x5
DBA-030	---	---	457x304	18x12	38	1 1/2	749	1.08	46x31x5
DBA-031	---	---	457x355	18x14	38	1 1/2	874	1.26	46x36x5
DBA-032	---	---	457x406	18x16	38	1 1/2	999	1.28	46x41x5
DBA-033	457x457	18x18	---	---	38	1 1/2	1124	1.44	46x46x5
DBA-034	---	---	508x101	20x4	38	1 1/2	278	0.40	51x11x5
DBA-035	---	---	508x152	20x6	38	1 1/2	416	0.60	51x16x5
DBA-036	---	---	508x203	20x8	38	1 1/2	555	0.80	51x21x5
DBA-037	---	---	508x254	20x10	38	1 1/2	694	1.00	51x26x5
DBA-038	---	---	508x304	20x12	38	1 1/2	833	2.00	51x31x5
DBA-039	---	---	508x355	20x14	38	1 1/2	971	1.40	51x36x5
DBA-040	---	---	508x406	20x16	38	1 1/2	1110	1.60	51x41x5
DBA-041	---	---	508x457	20x18	38	1 1/2	1249	6.00	51x46x5
DBA-042	508x508	20x20	---	---	38	1 1/2	1388	1.80	51x51x5
DBA-043	---	---	558x101	22x4	38	1 1/2	305	0.44	56x11x5
DBA-044	---	---	558x152	22x6	38	1 1/2	458	0.66	56x16x5
DBA-045	---	---	558x203	22x8	38	1 1/2	611	0.88	56x21x5
DBA-046	---	---	558x254	22x10	38	1 1/2	763	1.10	56x26x5
DBA-047	---	---	558x304	22x12	38	1 1/2	916	1.32	56x31x5
DBA-048	---	---	558x355	22x14	38	1 1/2	1068	1.54	56x36x5
DBA-049	---	---	558x406	22x16	38	1 1/2	1221	1.76	56x41x5
DBA-050	---	---	558x457	22x18	38	1 1/2	1374	1.98	56x46x5
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-051	---	---	558x508	22x20	38	1 1/2	1526	2.00	56x51x5
DBA-052	558x558	22x22	---	---	38	1 1/2	1679	2.20	56x56x5
DBA-053	---	---	609x101	24x4	38	1 1/2	333	0.48	61x11x5
DBA-054	---	---	609x152	24x6	38	1 1/2	500	0.72	61x16x5
DBA-055	---	---	609x203	24x8	38	1 1/2	666	0.96	61x21x5
DBA-056	---	---	609x254	24x10	38	1 1/2	833	1.30	61x26x5
DBA-057	---	---	609x304	24x12	38	1 1/2	999	1.44	61x31x5
DBA-058	---	---	609x355	24x14	38	1 1/2	1166	1.68	61x36x5
DBA-059	---	---	609x406	24x16	38	1 1/2	1332	1.92	61x41x5
DBA-060	---	---	609x457	24x18	38	1 1/2	1499	2.16	61x46x5
DBA-061	---	---	609x508	24x20	38	1 1/2	1665	2.40	61x51x5
DBA-062	---	---	609x558	24x22	38	1 1/2	1832	2.50	61x56x5
DBA-063	609x609	24x24	---	---	38	1 1/2	1998	2.64	61x61x5
DBA-064	---	---	660x101	26x4	38	1 1/2	361	0.52	61x11x5
DBA-065	---	---	660x152	26x6	38	1 1/2	541	0.78	61x16x5
DBA-066	---	---	660x203	26x8	38	1 1/2	722	1.04	67x21x5
DBA-067	---	---	660x254	26x10	38	1 1/2	902	1.30	67x26x5
DBA-068	---	---	660x304	26x12	38	1 1/2	1082	1.56	67x31x5
DBA-069	---	---	660x355	26x14	38	1 1/2	1263	1.82	67x36x5
DBA-070	---	---	660x406	26x16	38	1 1/2	1443	2.08	67x41x5
DBA-071	---	---	660x457	26x18	38	1 1/2	1623	2.34	67x46x5
DBA-072	---	---	660x508	26x20	38	1 1/2	1804	2.60	67x51x5
DBA-073	---	---	660x558	26x22	38	1 1/2	1984	2.86	67x56x5
DBA-074	---	---	660x609	26x24	38	1 1/2	2165	2.89	67x61x5
DBA-075	660x660	26x26	---	---	38	1 1/2	2345	3.12	67x67x5
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-076	---	---	711x101	28x4	38	1 1/2	389	0.56	72x11x5
DBA-077	---	---	711x152	28x6	38	1 1/2	583	0.84	72x16x5
DBA-078	---	---	711x203	28x8	38	1 1/2	777	1.12	72x21x5
DBA-079	---	---	711x254	28x10	38	1 1/2	971	1.40	72x26x5
DBA-080	---	---	711x304	28x12	38	1 1/2	1166	1.68	72x31x5
DBA-081	---	---	711x355	28x14	38	1 1/2	1360	1.96	72x36x5
DBA-082	---	---	711x406	28x16	38	1 1/2	1554	2.24	72x41x5
DBA-083	---	---	711x457	28x18	38	1 1/2	1748	2.52	72x46x5
DBA-084			711x508	28x20	38	1 1/2	1943	2.80	72x55x5
DBA-085	---	---	711x558	28x22	38	1 1/2	2137	3.08	72x56x5
DBA-086	---	---	711x609	28x24	38	1 1/2	2331	3.36	72x61x5
DBA-087	---	---	711x660	28x26	38	1 1/2	2525	6.39	72x67x5
DBA-088	711x711	28x28	---	---	38	1 1/2	2720	3.64	72x72x5
DBA-089	---	---	762x101	30x4	38	1 1/2	416	0.60	77x11x5
DBA-090	---	---	762x152	30x6	38	1 1/2	624	0.90	77x16x5
DBA-091	---	---	762x203	30x8	38	1 1/2	833	1.20	77x21x5
DBA-092	---	---	762x254	30x10	38	1 1/2	1041	1.50	77x26x5
DBA-093	---	---	762x304	30x12	38	1 1/2	1249	1.80	77x31x5
DBA-094	---	---	762x355	30x14	38	1 1/2	1457	2.10	77x36x5
DBA-095	---	---	762x406	30x16	38	1 1/2	1665	2.40	77x41x5
DBA-096	---	---	762x457	30x18	38	1 1/2	1873	2.70	77x46x5
DBA-097	---	---	762x508	30x20	38	1 1/2	2081	3.00	77x51x5
DBA-098	---	---	762x558	30x22	38	1 1/2	2289	3.30	77x56x5
DBA-099	---	---	762x609	30x24	38	1 1/2	2498	3.60	77x61x5
DBA-100	---	---	762x660	30x26	38	1 1/2	2706	3.90	77x67x5
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-101	---	---	762x711	30x28	38	1 1/2	2914	4.00	77x72x5
DBA-102	---	---	812x101	32x4	38	1 1/2	444	0.64	82x11x5
DBA-103	---	---	812x152	32x6	38	1 1/2	666	0.96	82x16x5
DBA-104	---	---	812x203	32x8	38	1 1/2	888	1.28	82x21x5
DBA-105	---	---	812x254	32x10	38	1 1/2	1110	1.60	82x26x5
DBA-106	---	---	812x304	32x12	38	1 1/2	1332	1.92	82x31x5
DBA-107	---	---	812x355	32x14	38	1 1/2	1554	2.24	82x36x5
DBA-108	---	---	812x406	32x16	38	1 1/2	1776	2.56	82x41x5
DBA-109	---	---	812x457	32x18	38	1 1/2	1998	2.88	82x46x5
DBA-110	---	---	812x508	32x20	38	1 1/2	2220	3.20	82x51x5
DBA-111	---	---	812x558	32x22	38	1 1/2	2442	3.40	82x56x5
DBA-112	---	---	812x609	32x24	38	1 1/2	2664	3.84	82x61x5
DBA-113	---	---	812x660	32x26	38	1 1/2	2886	4.16	82x67x5
DBA-114	---	---	812x711	32x28	38	1 1/2	3108	4.48	82x72x5
DBA-115	---	---	863x101	34x4	38	1 1/2	472	0.68	87x11x5
DBA-116	---	---	863x152	34x6	38	1 1/2	708	1.02	87x16x5
DBA-117	---	---	863x203	34x8	38	1 1/2	944	1.36	87x21x5
DBA-118	---	---	863x254	34x10	38	1 1/2	1179	1.70	87x26x5
DBA-119	---	---	863x304	34x12	38	1 1/2	1415	2.04	87x31x5
DBA-120	---	---	863x355	34x14	38	1 1/2	1651	2.38	87x36x5
DBA-121	---	---	863x406	34x16	38	1 1/2	1887	2.76	87x41x5
DBA-122	---	---	863x457	34x18	38	1 1/2	2123	3.06	87x46x5
DBA-123	---	---	863x508	34x20	38	1 1/2	2359	3.40	87x51x5
DBA-124	---	---	863x558	34x22	38	1 1/2	2595	3.74	87x55x5
DBA-125	---	---	863x609	34x24	38	1 1/2	2831	4.08	87x61x5
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-126	---	---	863x660	34x26	38	1 1/2	3066	4.42	87x57x5
DBA-127	---	---	863x711	34x28	38	1 1/2	3302	4.76	87x72x5
DBA-128	---	---	914x101	36x4	38	1 1/2	500	0.72	92x11x5
DBA-129	---	---	914x152	36x6	38	1 1/2	749	1.08	92x16x5
DBA-130	---	---	914x203	36x8	38	1 1/2	999	1.44	92x21x5
DBA-131	---	---	914x254	36x10	38	1 1/2	1249	1.80	92x26x5
DBA-132	---	---	914x304	36x12	38	1 1/2	1499	2.16	92x31x5
DBA-133	---	---	914x355	36x14	38	1 1/2	1748	2.52	92x36x5
DBA-134	---	---	914x406	36x16	38	1 1/2	1998	2.88	92x41x5
DBA-135	---	---	914x457	36x18	38	1 1/2	2248	3.24	92x46x5
DBA-136	---	---	914x508	36x20	38	1 1/2	2498	3.50	92x51x5
DBA-137	---	---	914x558	36x22	38	1 1/2	2747	3.96	92x56x5
DBA-138			914x609	36x24	38	1 1/2	2997	4.32	92x61x5
DBA-139	---	---	914x660	36x26	38	1 1/2	3247	4.68	92x67x5
DBA-140	---	---	914x711	36x28	38	1 1/2	3497	5.04	92x72x5
DBA-141	---	---	965x101	38x4	38	1 1/2	527	0.76	97x11x5
DBA-142	---	---	965x152	38x6	38	1 1/2	791	1.14	97x16x5
DBA-143	---	---	965x203	38x8	38	1 1/2	1055	1.52	97x21x5
DBA-144	---	---	965x254	38x10	38	1 1/2	1318	1.90	97x26x5
DBA-145	---	---	965x304	38x12	38	1 1/2	1582	2.28	97x31x5
DBA-146	---	---	965x355	38x14	38	1 1/2	1845	2.66	97x36x5
DBA-147	---	---	965x406	38x16	38	1 1/2	2109	3.04	97x41x5
DBA-148	---	---	965x457	38x18	38	1 1/2	2373	3.42	97x46x5
DBA-149	---	---	965x508	38x20	38	1 1/2	2636	3.80	97x51x5
DBA-150	---	---	965x558	38x22	38	1 1/2	2900	4.18	97x56x5
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-151	---	---	965x609	38x24	38	1 1/2	3164	4.56	97x61x5
DBA-152	---	---	965x660	38x26	38	1 1/2	3427	4.94	97x67x5
DBA-153	---	---	962x711	38x28	38	1 1/2	3691	5.32	97x72x5
DBA-154	---	---	1016x101	40x4	38	1 1/2	555	0.80	102x11x5
DBA-155	---	---	1016x152	40x6	38	1 1/2	833	1.20	102x16x5
DBA-156	---	---	1016x203	40x8	38	1 1/2	1110	1.60	102x21x5
DBA-157	---	---	1016x254	40x10	38	1 1/2	1388	2.00	102x26x5
DBA-158	---	---	1016x304	40x12	38	1 1/2	1665	2.40	102x31x5
DBA-159	---	---	1016x355	40x14	38	1 1/2	1943	2.80	102x36x5
DBA-160	---	---	1016x406	40x16	38	1 1/2	2220	3.20	102x41x5
DBA-161	---	---	1016x457	40x18	38	1 1/2	2498	3.60	102x46x5
DBA-162	---	---	1016x508	40x20	38	1 1/2	2775	4.00	102x51x5
DBA-163	---	---	1016x558	40x22	38	1 1/2	3053	4.40	102x56x5
DBA-164	---	---	1016x609	40x24	38	1 1/2	3330	4.80	102x61x5
DBA-165	---	---	1016x660	40x26	38	1 1/2	3608	5.20	102x67x5
DBA-166	---	---	1066x711	40x28	38	1 1/2	3885	5.60	107x72x5
DBA-167	---	---	1066x101	42x4	38	1 1/2	583	0.84	107x11x5
DBA-168	---	---	1066x152	42x6	38	1 1/2	874	1.26	107x16x5
DBA-169	---	---	1066x203	42x8	38	1 1/2	1166	1.68	107x21x5
DBA-170	---	---	1066x254	42x10	38	1 1/2	1457	2.10	107x26x5
DBA-171	---	---	1066x304	42x12	38	1 1/2	1748	2.52	107x31x5
DBA-172	---	---	1066x355	42x14	38	1 1/2	2040	2.94	107x36x5
DBA-173	---	---	1066x406	42x16	38	1 1/2	2331	3.36	107x41x5
DBA-174	---	---	1066x457	42x18	38	1 1/2	2622	3.70	107x46x5
DBA-175	---	---	1066x508	42x20	38	1 1/2	2914	4.20	107x51x5
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-176	---	---	1066x558	42x22	38	1 1/2	3205	4.62	107x56x5
DBA-177	---	---	1066x609	42x24	38	1 1/2	3497	5.04	107x61x5
DBA-178	---	---	1066x660	42x26	38	1 1/2	3788	5.46	107x67x5
DBA-179	---	---	1066x711	42x28	38	1 1/2	4079	5.88	107x72x5
DBA-180	---	---	1117x101	44x4	38	1 1/2	611	0.88	112x11x5
DBA-181	---	---	1117x152	44x6	38	1 1/2	916	1.32	112x16x5
DBA-182	---	---	1117x203	44x8	38	1 1/2	1221	1.79	112x21x5
DBA-183	---	---	1117x254	44x10	38	1 1/2	1526	2.20	112x26x5
DBA-184	---	---	1117x304	44x12	38	1 1/2	1832	2.64	112x31x5
DBA-185	---	---	1111x355	44x14	38	1 1/2	2137	3.08	112x36x5
DBA-186	---	---	1117x406	44x16	38	1 1/2	2442	3.52	112x41x5
DBA-187	---	---	1117x457	44x18	38	1 1/2	2747	3.96	112x46x5
DBA-188	---	---	1117x508	44x20	38	1 1/2	3053	4.40	112x51x5
DBA-189	---	---	1117x558	44x22	38	1 1/2	3358	4.84	112x56x5
DBA-190	---	---	1117x609	44x24	38	1 1/2	3663	5.28	112x61x5
DBA-191	---	---	1117x660	44x26	38	1 1/2	3968	5.72	112x67x5
DBA-192	---	---	1117x711	44x28	38	1 1/2	4274	6.16	112x72x5
DBA-193	---	---	1168x101	46x4	38	1 1/2	638	0.92	117x11x5
DBA-194	---	---	1168x152	46x6	38	1 1/2	957	1.38	117x16x5
DBA-195	---	---	1168x203	46x8	38	1 1/2	1277	1.84	117x21x5
DBA-196	---	---	1168x254	46x10	38	1 1/2	1596	2.30	117x26x5
DBA-197	---	---	1168x304	46x12	38	1 1/2	1915	2.76	117x31x5
DBA-198	---	---	1168x355	46x14	38	1 1/2	2234	3.22	117x36x5
DBA-199	---	---	1168x406	46x16	38	1 1/2	2553	3.68	117x41x5
DBA-200	---	---	1168x457	46x18	38	1 1/2	2872	4.14	117x46x5
Clave	Cuadrado		Rectangular		Fondo		Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	AxB	AxB	AxB	AxB	C	C	Capacidad Máxima de Difusión	Peso y Dimensiones con Empaque Plástico
	mm	pulg	mm	pulg	mm	pulg	m3/hr	Kg	cm
DBA-201	---	---	1168x508	46x20	38	1 1/2	3191	4.60	117x51x5
DBA-202	---	---	1168x558	46x22	38	1 1/2	3510	5.06	117x56x5
DBA-203	---	---	1168x609	46x24	38	1 1/2	3830	5.52	117x61x5
DBA-204	---	---	1168x660	46x26	38	1 1/2	4149	5.98	117x67x5
DBA-205	---	---	1168x711	46x28	38	1 1/2	4668	6.44	117x72x5
DBA-206	---	---	1219x101	48x4	38	1 1/2	666	0.96	122x11x5
DBA-207	---	---	1219x152	48x6	38	1 1/2	999	1.44	122x16x5
DBA-208	---	---	1219x203	48x8	38	1 1/2	1332	1.92	122x21x5
DBA-209	---	---	1219x254	48x10	38	1 1/2	1665	2.40	122x26x5
DBA-210	---	---	1219x304	48x12	38	1 1/2	1998	2.88	122x61x5
DBA-211	---	---	1219x355	48x14	38	1 1/2	2331	3.36	122x36x5
DBA-212	---	---	1219x406	48x16	38	1 1/2	2664	3.84	122x41x5
DBA-213	---	---	1219x457	48x18	38	1 1/2	2997	4.32	122x46x5
DBA-214	---	---	1219x508	48x20	38	1 1/2	3330	4.80	122x51x5
DBA-215	---	---	1219x558	48x22	38	1 1/2	3663	8.25	122x56x5
DBA-216	---	---	1219x609	48x24	38	1 1/2	3996	5.76	122x61x5
DBA-217	---	---	1219x660	48x26	38	1 1/2	4329	6.24	122x57x5
DBA-218	---	---	1219x711	48x28	38	1 1/2	4662	6.72	122x72x5

Montaje
Perforar panel o tabla roca, al tamaño correspondiente de la rejilla (Dimensiones A y B), fijar rejilla contra el ducto.
Perforar pared al tamaño correspondiente de la rejilla (Dimensiones A y B), fijar rejilla contra el ducto.
VentDepot Team, monta instala y da mantenimiento a cualquiera de nuestros equipos, de forma rápida, segur y conforme a las normas industriales. Suministro y servicio a toda la República mexicana.
