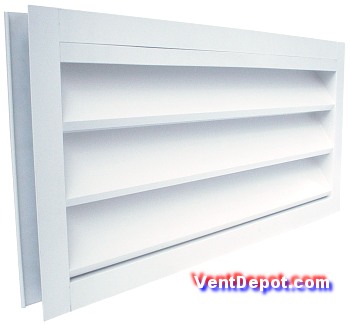

Equipos y Productos: TurboLouvers: ComboLouv 2".

Características Generales
Nuestro TurboLouver ComboLouv 2" VentDepot, ha sido fabricado con perfil extruido de aluminio. Cuenta con aletas fijas y marco perimetral de 2" de ancho, altura en múltiplos de 3" con anchos variables. Acabado con pintura electrostática horneada blanco dover. Incluyendo tela mosquitera por el lado exterior. Estos equipos ahorran energía eléctrica.
Aplicaciones
Sistema de ingestión estático, ideal como complemento a cualquier sistema de extracción de aire. Para uso en: Industria.
Garantía
1 (Un) año de Garantía certificado por escrito, sujeto a las claúsulas.

Características Técnicas Específicas
Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-001	305x305	12x12	---	---	---	---	50	2	0.58	31x31x6
CL2-002	---	---	---	---	305x381	12x15	50	2	0.72	31x39x6
CL2-003	---	---	---	---	305x457	12x18	50	2	0.86	31x46x6
CL2-004	---	---	---	---	305x533	12x21	50	2	1.01	31x54x6
CL2-005	---	---	---	---	305x609	12x24	50	2	1.15	31x61x6
CL2-006	---	---	---	---	305x685	12x27	50	2	1.30	31x69x6
CL2-007	---	---	---	---	305x762	12x30	50	2	1.44	31x77x6
CL2-008	---	---	---	---	305x838	12x33	50	2	1.58	31x84x6
CL2-009	---	---	---	---	305x914	12x36	50	2	1.73	31x92x6
CL2-010	---	---	---	---	305x990	12x39	50	2	1.87	31x100x6
CL2-011	---	---	---	---	305x1066	12x42	50	2	2.02	31x107x6
CL2-012	---	---	---	---	305x1143	12x45	50	2	2.16	31x115x6
CL2-013	---	---	---	---	305x1219	12x48	50	2	2.30	31x122x6
CL2-014	---	---	---	---	305x1295	12x51	50	2	2.45	31x130x6
CL2-015	---	---	---	---	305x1371	12x54	50	2	2.59	31x128x6
CL2-016	---	---	381x305	15x12	---	---	50	2	0.72	39x31x6
CL2-017	381x381	15x15	---	---	---	---	50	2	0.90	39x39x6
CL2-018	---	---	---	---	381x457	15x18	50	2	1.08	39x46x6
CL2-019	---	---	---	---	381x533	15x24	50	2	1.26	39x54x6
CL2-020	---	---	---	---	381x609	15x24	50	2	1.44	39x61x6
CL2-021	---	---	---	---	381x685	15x27	50	2	1.62	39x69x6
CL2-022	---	---	---	---	381x762	15x30	50	2	1.80	39x77x6
CL2-023	---	---	---	---	381x838	15x33	50	2	1.98	39x84x6
CL2-024	---	---	---	---	381x914	15x36	50	2	2.16	39x92x6
CL2-025	---	---	---	---	381x990	15x39	50	2	2.34	39x100x6
Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-026	---	---	---	---	381x1066	15x42	50	2	2.52	39x107x6
CL2-027	---	---	---	---	381x1143	15x45	50	2	2.70	39x115x6
CL2-028	---	---	---	---	381x1219	15x48	50	2	2.88	39x122x6
CL2-029	---	---	---	---	381x1295	15x51	50	2	3.06	39x130x6
CL2-030	---	---	---	---	381x1371	15x54	50	2	3.24	39x138x6
CL2-031	---	---	457x305	18x12	---	---	50	2	0.86	46x31x6
CL2-032	---	---	457x381	18x15	---	---	50	2	1.08	46x39x6
CL2-033	457x457	18x18	---	---	---	---	50	2	1.30	46x46x6
CL2-034	---	---	---	---	457x533	18x21	50	2	1.51	46x54x6
CL2-035	---	---	---	---	457x609	18x24	50	2	1.73	46x61x6
CL2-036	---	---	---	---	457x685	18x27	50	2	1.94	46x69x6
CL2-037	---	---	---	---	457x762	18x30	50	2	2.16	46x77x6
CL2-038	---	---	---	---	457x838	18x33	50	2	2.38	46x84x6
CL2-039	---	---	---	---	457x914	18x36	50	2	2.59	46x92x6
CL2-040	---	---	---	---	457x990	18x39	50	2	2.81	46x100x6
CL2-041	---	---	---	---	457x1066	18x42	50	2	3.02	46x107x6
CL2-042	---	---	---	---	457x1143	18x45	50	2	3.24	46x115x6
CL2-043	---	---	---	---	457x1219	18x48	50	2	3.46	46x122x6
CL2-044	---	---	---	---	457x1295	18x51	50	2	3.67	46x130x6
CL2-045	---	---	---	---	457x1371	18x54	50	2	3.89	46x138x6
CL2-046	---	---	533x305	21x12	---	---	50	2	1.01	54x31x6
CL2-047	---	---	533x381	21x15	---	---	50	2	1.26	54x39x6
CL2-048	---	---	533x457	21x18	---	---	50	2	1.51	54x46x6
CL2-049	533x533	21x21	---	---	---	---	50	2	1.76	54x54x6
CL2-050	---	---	---	---	533x509	21x24	50	2	2.02	54x61x6

Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-051	---	---	---	---	533x685	21x27	50	2	2.27	54x69x6
CL2-052	---	---	---	---	533x762	21x30	50	2	2.52	54x77x6
CL2-053	---	---	---	---	533x838	21x33	50	2	2.77	54x84x6
CL2-054	---	---	---	---	533x914	21x36	50	2	3.02	54x92x6
CL2-055	---	---	---	---	833x990	21x39	50	2	3.28	54x100x6
CL2-056	---	---	---	---	533x1066	21x42	50	2	3.53	54x107x6
CL2-057	---	---	---	---	533x1143	21x42	50	2	3.78	54x115x6
CL2-058	---	---	---	---	533x1219	21x48	50	2	4.03	54x122x6
CL2-059	---	---	---	---	533x1295	21x51	50	2	4.28	54x130x6
CL2-060	---	---	---	---	533x1371	21x54	50	2	4.54	54x138x6
CL2-061	---	---	609x305	24x12	---	---	50	2	1.15	61x31x6
CL2-062	---	---	609x381	24x15	---	---	50	2	1.44	61x39x6
CL2-063	---	---	609x457	24x18	---	---	50	2	1.73	61x46x6
CL2-064	---	---	609x533	24x21	---	---	50	2	2.02	61x57x6
CL2-065	609x609	24x24	---	---	---	---	50	2	2.30	61x62x6
CL2-066	---	---	---	---	609x685	24x27	50	2	2.59	61x69x6
CL2-067	---	---	---	---	609x762	24x30	50	2	2.88	61x77x6
CL2-068	---	---	---	---	609x838	24x33	50	2	3.17	61x84x6
CL2-069	---	---	---	---	609x914	24x36	50	2	3.46	61x92x6
CL2-070	---	---	---	---	609x990	24x39	50	2	3.74	61x100x6
CL2-071	---	---	---	---	609x1066	24x42	50	2	4.03	61x107x6
CL2-072	---	---	---	---	609x1143	24x45	50	2	4.32	61x115x6
CL2-073	---	---	---	---	609x1219	24x48	50	2	4.61	61x122x6
CL2-074	---	---	---	---	609x1295	24x51	50	2	4.90	61x130x6
CL2-075	---	---	---	---	609x1371	24x54	50	2	5.18	61x138x6
Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-076	---	---	685x305	27x12	---	---	50	2	1.30	69x31x6
CL2-077	---	---	685x381	27x15	---	---	50	2	1.62	69x39x6
CL2-078	---	---	685x457	27x18	---	---	50	2	1.94	69x46x6
CL2-079	---	---	685x533	27x21	---	---	50	2	2.27	69x54x6
CL2-080	---	---	685x609	27x24	---	---	50	2	2.59	69x61x6
CL2-081	685x685	27x27	---	---	---	---	50	2	2.92	69x69x6
CL2-082	---	---	---	---	685x762	27x30	50	2	3.24	69x77x6
CL2-083	---	---	---	---	685x838	27x33	50	2	3.56	69x84x6
CL2-084	---	---	---	---	574x814	27x36	50	2	3.89	69x92x6
CL2-085	---	---	---	---	685x990	27x39	50	2	4.21	69x100x6
CL2-086	---	---	---	---	685x1066	27x42	50	2	4.54	69x107x6
CL2-087	---	---	---	---	685x1143	27x45	50	2	4.86	69x115x6
CL2-088	---	---	---	---	685x1219	27x48	50	2	5.18	69x122x6
CL2-089	---	---	---	---	685x1295	27x51	50	2	5.51	69x130x6
CL2-090	---	---	---	---	685x1371	27x54	50	2	5.83	69x138x6
CL2-091	---	---	762x305	30x12	---	---	50	2	1.44	77x31x6
CL2-092	---	---	762x381	30x15	---	---	50	2	1.80	77x38x6
CL2-093	---	---	762x457	30x18	---	---	50	2	2.16	77x46x6
CL2-094	---	---	762x533	30x21	---	---	50	2	2.52	77x54x6
CL2-095	---	---	762x609	30x24	---	---	50	2	2.88	77x61x6
CL2-096	---	---	762x685	30x27	---	---	50	2	3.24	77x69x6
CL2-097	762x762	30x30	---	---	---	---	50	2	3.60	77x77x6
CL2-098	---	---	---	---	762x838	30x33	50	2	3.96	77x84x6
CL2-099	---	---	---	---	762x914	30x36	50	2	4.32	77x92x6
CL2-100	---	---	---	---	762x990	30x39	50	2	4.68	77x100x6

Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-101	---	---	---	---	762x1066	30x42	50	2	5.04	77x107x6
CL2-102	---	---	---	---	762x1143	30x45	50	2	5.40	77x115x6
CL2-103	---	---	---	---	762x1219	30x48	50	2	5.76	77x122x6
CL2-104	---	---	---	---	762x1295	30x51	50	2	6.12	77x130x6
CL2-105	---	---	---	---	762x1371	30x54	50	2	6.48	77x138x6
CL2-106	---	---	838x305	33x12	---	---	50	2	1.58	84x31x6
CL2-107	---	---	838x381	33x15	---	---	50	2	1.98	84x39x6
CL2-108	---	---	838x457	33x18	---	---	50	2	2.38	84x46x6
CL2-109	---	---	838x533	33x21	---	---	50	2	2.77	84x54x6
CL2-110	---	---	838x609	33x24	---	---	50	2	3.17	84x61x6
CL2-111	---	---	838x685	33x27	---	---	50	2	3.56	84x69x6
CL2-112	---	---	838x762	22x30	---	---	50	2	3.96	84x77x6
CL2-113	838x838	33x33	---	---	---	---	50	2	4.36	84x84x6
CL2-114	---	---	---	---	838x914	33x36	50	2	4.75	84x92x6
CL2-115	---	---	---	---	838x990	33x39	50	2	5.15	84x100x6
CL2-116	---	---	---	---	838x1066	33x42	50	2	5.54	84x107x6
CL2-117	---	---	---	---	838x1143	33x45	50	2	5.94	84x115x6
CL2-118	---	---	---	---	838x1219	33x48	50	2	6.34	84x122x6
CL2-119	---	---	---	---	838x1295	33x51	50	2	6.73	84x130x6
CL2-120	---	---	---	---	838x1371	33x54	50	2	7.13	84x138x6
CL2-121	---	---	914x305	36x12	---	---	50	2	1.73	92x31x6
CL2-122	---	---	914x381	36x15	---	---	50	2	2.16	92x39x6
CL2-123	---	---	914x457	36x18	---	---	50	2	2.59	92x46x6
CL2-124	---	---	914x533	36x21	---	---	50	2	3.02	92x54x6
CL2-125	---	---	914x609	36x24	---	---	50	2	3.46	92x69x6
Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-126	---	---	914x685	36x27	---	---	50	2	3.89	92x68x6
CL2-127	---	---	914x762	36x30	---	---	50	2	4.32	92x77x6
CL2-128	---	---	914x838	36x33	---	---	50	2	4.75	92x84x6
CL2-129	914x914	36x36	---	---	---	---	50	2	5.18	92x92x6
CL2-130	---	---	---	---	914x990	36x39	50	2	5 .62	92x100x6
CL2-131	---	---	---	---	914x1066	36x42	50	2	6.05	92x107x6
CL2-132	---	---	---	---	914x1143	36x45	50	2	6.48	92x115x6
CL2-133	---	---	---	---	914x1219	36x48	50	2	6.91	92x122x6
CL2-134	---	---	---	---	914x1295	36x51	50	2	7.34	92x130x6
CL2-135	---	---	---	---	914x1371	36x54	50	2	7.78	92x168x6
CL2-136	---	---	990x305	39x12	---	---	50	2	1.87	100x31x6
CL2-137	---	---	990x381	39x15	---	---	50	2	2.34	100x39x6
CL2-138	---	---	990x457	39x18	---	---	50	2	2.81	100x46x6
CL2-139	---	---	990x533	39x21	---	---	50	2	3.28	100x54x6
CL2-140	---	---	990x609	39x24	---	---	50	2	3.74	100x69x6
CL2-141	---	---	990x685	39x27	---	---	50	2	4.21	100x77x6
CL2-142	---	---	990x762	39x30	---	---	50	2	4.68	100x77x6
CL2-143	---	---	990x838	39x33	---	---	50	2	5.15	100x84x6
CL2-144	---	---	990x914	39x36	---	---	50	2	5.65	100x92x6
CL2-145	990x990	39x39	---	---	---	---	50	2	6.08	100x100x6
CL2-146	---	---	---	---	990x1066	39x42	50	2	6.55	100x107x6
CL2-147	---	---	---	---	990x1143	39x45	50	2	7.02	100x115x6
CL2-148	---	---	---	---	990x1219	39x48	50	2	7.49	100x122x6
CL2-149	---	---	---	---	990x1295	39x51	50	2	7.96	100x130x6
CL2-150	---	---	---	---	990x1371	39x54	50	2	8.42	100x138x6

Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-151	---	---	1066x305	42x12	---	---	50	2	2.02	107x31x6
CL2-152	---	---	1066x381	42x15	---	---	50	2	2.52	107x39x6
CL2-153	---	---	1066x457	42x18	---	---	50	2	3.02	107x46x6
CL2-154	---	---	1066x533	42x21	---	---	50	2	3.53	107x54x6
CL2-155	---	---	1066x609	42x24	---	---	50	2	4.03	107x61x6
CL2-156	---	---	1066x685	42x27	---	---	50	2	4.54	107x69x6
CL2-157	---	---	1066x762	42x30	---	---	50	2	5.04	107x77x6
CL2-158	---	---	1066x838	42x33	---	---	50	2	5.54	107x84x6
CL2-159	---	---	1066x914	42x36	---	---	50	2	6.05	107x92x6
CL2-160	---	---	1066x990	42x39	---	---	50	2	6.55	107x100x6
CL2-161	1066x1066	42x42	---	---	---	---	50	2	7.06	107x107x6
CL2-162	---	---	---	---	1066x1143	42x45	50	2	7.56	107x115x6
CL2-163	---	---	---	---	1066x1219	42x48	50	2	8.06	107x122x6
CL2-164	---	---	---	---	1066x1295	42x51	50	2	8.57	107x130x6
CL2-165	---	---	---	---	1066x1371	42x54	50	2	9.07	107x138x6
CL2-166	---	---	1143x305	45x12	---	---	50	2	2.16	115x31x6
CL2-167	---	---	1143x381	45x15	---	---	50	2	2.70	115x39x6
CL2-168	---	---	1143x457	45x18	---	---	50	2	3.24	115x46x6
CL2-169	---	---	1143x533	45x21	---	---	50	2	3.78	115x54x6
CL2-170	---	---	1143x609	45x24	---	---	50	2	4.32	115x69x6
CL2-171	---	---	1143x685	45x27	---	---	50	2	4.86	115x69x6
CL2-172	---	---	1143x762	45x30	---	---	50	2	5.40	115x77x6
CL2-173	---	---	1143x838	45x33	---	---	50	2	5.94	115x84x6
CL2-174	---	---	1143x914	45x36	---	---	50	2	6.48	115x92x6
CL2-175	---	---	1143x990	45x39	---	---	50	2	7.02	115x100x6
Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-176	---	---	1143x1066	45x42	---	---	50	2	7.56	115x107x6
CL2-177	1143x1143	45x45	---	---	---	---	50	2	8.10	115x115x6
CL2-178	---	---	---	---	1143x1219	45x48	50	2	8.64	115x122x6
CL2-179	---	---	---	---	1143x1295	45x51	50	2	9.18	115x130x6
CL2-180	---	---	---	---	1143x1371	45x54	50	2	9.72	115x138x6
CL2-181	---	---	1219x305	48x12	---	---	50	2	2.30	122x31x6
CL2-182	---	---	1219x381	48x15	---	---	50	2	2.88	122x39x6
CL2-183	---	---	1219x457	48x18	---	---	50	2	3.46	122x46x6
CL2-184	---	---	1219x533	48x21	---	---	50	2	4.03	122x54x6
CL2-185	---	---	1219x609	48x24	---	---	50	2	4.61	122x61x6
CL2-186	---	---	1219x685	48x27	---	---	50	2	5.18	122x69x6
CL2-187	---	---	1219x762	48x30	---	---	50	2	5.76	122x77x6
CL2-188	---	---	1219x838	48x33	---	---	50	2	6.34	122x84x6
CL2-189	---	---	1219x914	48x36	---	---	50	2	6.91	122x92x6
CL2-190	---	---	1219x990	48x39	---	---	50	2	7.49	122x100x6
CL2-191	---	---	1219x1066	48x42	---	---	50	2	8.06	122x107x6
CL2-192	---	---	1219x1143	48x45	---	---	50	2	8.64	122x115x6
CL2-193	1219	48x48	---	---	---	---	50	2	9.22	122x122x6
CL2-194	---	---	---	---	1219x1295	48x51	50	2	9.79	122x130x6
CL2-195	---	---	---	---	1219x1371	48x54	50	2	10.37	122x138x6
CL2-196	---	---	1295x305	51x12	---	---	50	2	2.45	130x31x6
CL2-197	---	---	1295x381	51x15	---	---	50	2	3.06	130x39x6
CL2-198	---	---	1295x457	51x18	---	---	50	2	3.67	130x46x6
CL2-199	---	---	1295x533	51x21	---	---	50	2	4.28	130x54x6
CL2-200	---	---	1295x609	51x24	---	---	50	2	4.90	130x61x6

Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-201	---	---	1295x685	51x27	---	---	50	2	5.51	130x69x6
CL2-202	---	---	1295x762	51x30	---	---	50	2	6.12	130x77x6
CL2-203	---	---	1295x838	51x33	---	---	50	2	6.73	130x84x6
CL2-204	---	---	1295x914	51x36	---	---	50	2	7.34	130x92x6
CL2-205	---	---	1295x990	51x39	---	---	50	2	7.96	130x100x6
CL2-206	---	---	1295x1066	51x42	---	---	50	2	8.57	130x107x6
CL2-207	---	---	1295x1143	51x45	---	---	50	2	9.18	130x115x6
CL2-208	---	---	1295x1219	51x48	---	---	50	2	9.79	130x122x6
CL2-209	1295x1295	51x51	---	---	---	---	50	2	10.40	130x130x6
CL2-210	---	---	---	---	1295x1371	51x54	50	2	11.02	130x138x6
CL2-211	---	---	1371x305	54x12	---	---	50	2	2.59	138x31x6
CL2-212	---	---	1371x381	54x15	---	---	50	2	3.24	168x39x6
CL2-213	---	---	1371x457	54x18	---	---	50	2	3.89	138x46x6
CL2-214	---	---	1371x533	54x21	---	---	50	2	4.54	138x54x6
CL2-215	---	---	1371x609	54x24	---	---	50	2	5.18	138x61x6
CL2-216	---	---	1371x685	54x27	---	---	50	2	5.83	138x69x6
CL2-217	---	---	1371x762	54x30	---	---	50	2	6.48	138x77x6
CL2-218	---	---	1371x838	54x33	---	---	50	2	7.13	138x84x6
CL2-219	---	---	1371x914	54x36	---	---	50	2	7.78	138x92x6
CL2-220	---	---	1371x990	54x39	---	---	50	2	8.42	138x100x6
CL2-221	---	---	1371x1066	54x42	---	---	50	2	9.07	138x107x6
CL2-222	---	---	1371x1143	54x45	---	---	50	2	9.72	138x115x6
CL2-223	---	---	1371x1219	54x48	---	---	50	2	10.37	138x122x6
CL2-224	---	---	1371x1295	54x51	---	---	50	2	11.02	138x130x6
CL2-225	1371x1371	54x54	---	---	---	---	50	2	11.66	138x138x6
Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-226	---	---	1447x305	57x12	---	---	50	2	2.74	145x31x6
CL2-227	---	---	1447x381	57x15	---	---	50	2	3.42	145x39x6
CL2-228	---	---	1447x457	57x18	---	---	50	2	4.10	145x46x6
CL2-229	---	---	1447x533	57x21	---	---	50	2	4.79	145x54x6
CL2-230	---	---	1447x609	57x24	---	---	50	2	5.47	145x61x6
CL2-231	---	---	1447x685	57x27	---	---	50	2	6.16	145x69x6
CL2-232	---	---	1447x762	57x30	---	---	50	2	6.84	145x77x6
CL2-233	---	---	1447x838	57x33	---	---	50	2	7.52	145x84x6
CL2-234	---	---	1447x914	57x36	---	---	50	2	8.21	145x92x6
CL2-235	---	---	1447x990	57x39	---	---	50	2	8.89	145x100x6
CL2-236	---	---	1447x1066	57x42	---	---	50	2	9.58	145x107x6
CL2-237	---	---	1447x1143	57x45	---	---	50	2	10.26	145x115x6
CL2-238	---	---	1447x1219	57x48	---	---	50	2	10.94	145x122x6
CL2-239	---	---	1447x1295	57x51	---	---	50	2	11.63	145x131x6
CL2-240	---	---	1447x1371	57x54	---	---	50	2	12.31	145x138x6
CL2-241	---	---	1524x305	60x12	---	---	50	2	2.88	153x31x6
CL2-242	---	---	1524x381	60x15	---	---	50	2	3.60	153x39x6
CL2-243	---	---	1524x457	60x18	---	---	50	2	4.32	153x46x6
CL2-244	---	---	1524x533	60x21	---	---	50	2	5.04	153x54x6
CL2-245	---	---	1524x609	60x24	---	---	50	2	5.76	153x61x6
CL2-246	---	---	1524x685	60x27	---	---	50	2	6.48	153x69x6
CL2-247	---	---	1524x762	60x30	---	---	50	2	7.20	153x77x6
CL2-248	---	---	1524x838	60x33	---	---	50	2	7.92	153x84x6
CL2-249	---	---	1524x914	60x36	---	---	50	2	8.64	153x92x6
CL2-250	---	---	1524x990	60x39	---	---	50	2	9.36	153x100x6

Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-251	---	---	1524x1066	60x42	---	---	50	2	10.08	153x107x6
CL2-252	---	---	1524x1143	60x45	---	---	50	2	10.80	153x115x6
CL2-253	---	---	1524x1219	60x48	---	---	50	2	11.52	153x122x6
CL2-254	---	---	1524x1295	60x51	---	---	50	2	12.24	153x130x6
CL2-255	---	---	1524x1371	60x54	---	---	50	2	12.96	153x138x6
CL2-256	---	---	1600x305	63x12	---	---	50	2	3.02	161x31x6
CL2-257	---	---	1600x381	63x15	---	---	50	2	3.78	161x39x6
CL2-258	---	---	1600x457	63x18	---	---	50	2	4.54	161x46x6
CL2-259	---	---	1600x533	63x21	---	---	50	2	5.29	161x46x6
CL2-260	---	---	1600x609	63x24	---	---	50	2	6.05	161x69x6
CL2-261	---	---	1600x685	63x27	---	---	50	2	6.80	161x69x6
CL2-262	---	---	1600x762	63x30	---	---	50	2	7.56	161x77x6
CL2-263	---	---	1600x838	63x33	---	---	50	2	8.32	161x84x6
CL2-264	---	---	1600x914	63x36	---	---	50	2	9.07	161x92x6
CL2-265	---	---	1600x990	63x39	---	---	50	2	9.83	161x100x6
CL2-266	---	---	1600x1066	63x42	---	---	50	2	10.58	161x107x6
CL2-267	---	---	1600x1143	63x45	---	---	50	2	11.34	161x115x6
CL2-268	---	---	1600x1219	63x48	---	---	50	2	12.10	161x122x6
CL2-269	---	---	1600x1295	63x51	---	---	50	2	12.85	161x130x6
CL2-270	---	---	1600x1371	63x54	---	---	50	2	13.61	161x138x6
CL2-271	---	---	1675x305	66x12	---	---	50	2	3.17	168x31x6
CL2-272	---	---	1676x381	66x15	---	---	50	2	3.96	168x39x6
CL2-273	---	---	1676x457	66x18	---	---	50	2	4.75	168x46x6
CL2-274	---	---	1676x533	66x21	---	---	50	2	5.54	168x54x6
CL2-275	---	---	1676x609	66x24	---	---	50	2	6.34	168x61x6
Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-276	---	---	1676x685	66x27	---	---	50	2	7.13	168x69x6
CL2-277	---	---	1676x762	66x30	---	---	50	2	7.92	168x77x6
CL2-278	---	---	1676x838	66x33	---	---	50	2	8.71	168x84x6
CL2-279	---	---	1676x914	66x36	---	---	50	2	9.50	168x92x6
CL2-280	---	---	1676x990	66x39	---	---	50	2	10.30	168x100x6
CL2-281	---	---	1676x1066	66x42	---	---	50	2	11.09	168x107x6
CL2-282	---	---	1676x1143	66x45	---	---	50	2	11.88	168x115x6
CL2-283	---	---	1676x1219	66x48	---	---	50	2	12.67	168x122x6
CL2-284	---	---	1676x1295	66x51	---	---	50	2	13.46	168x130x6
CL2-285	---	---	1676x1371	66x54	---	---	50	2	14.26	168x138x6
CL2-286	---	---	1752x305	69x12	---	---	50	2	3.31	175x31x6
CL2-287	---	---	1752x381	69x15	---	---	50	2	4.14	176x39x6
CL2-288	---	---	1752x457	69x18	---	---	50	2	4.97	176x46x6
CL2-289	---	---	1752x533	69x21	---	---	50	2	5.80	176x54x6
CL2-290	---	---	1752x609	69x24	---	---	50	2	6.62	176x61x6
CL2-291	---	---	1752x685	69x27	---	---	50	2	7.45	176x69x6
CL2-292	---	---	1752x762	69x30	---	---	50	2	8.28	176x77x6
CL2-293	---	---	1752x838	69x33	---	---	50	2	9.11	176x84x6
CL2-294	---	---	1752x914	69x36	---	---	50	2	9.94	176x92x6
CL2-295	---	---	1752x990	69x39	---	---	50	2	10.76	176x100x6
CL2-296	---	---	1752x1066	69x42	---	---	50	2	11.59	176x107x6
CL2-297	---	---	1752x1143	69x45	---	---	50	2	12.42	176x115x6
CL2-298	---	---	1752x1219	69x48	---	---	50	2	13.25	176x122x6
CL2-299	---	---	1752x1295	69x51	---	---	50	2	14.08	176x130x6
CL2-300	---	---	1752x1371	69x54	---	---	50	2	14.90	176x138x6

Clave							Fondo		Peso y Dimensiones con Empaque de Plástico
	X x Y	X x Y	X x Y	X x Y	X x Y	X x Y	Z	Z	kg	cm
	mm	pulg	mm	pulg	mm	pulg	mm	pulg
CL2-301	---	---	1828x305	72x12	---	---	50	2	3.46	183x31x6
CL2-302	---	---	1828x381	72x15	---	---	50	2	4.32	183x39x6
CL2-303	---	---	1828x457	72x18	---	---	50	2	5.18	183x46x6
CL2-304	---	---	1828x533	72x21	---	---	50	2	6.05	183x54x6
CL2-305	---	---	1828x609	72x24	---	---	50	2	6.91	183x61x6
CL2-306	---	---	1828x685	72x27	---	---	50	2	7.78	183x69x6
CL2-307	---	---	1828x762	72x30	---	---	50	2	8.64	183x77x6
CL2-308	---	---	1828x838	72x33	---	---	50	2	9.50	183x84x6
CL2-309	---	---	1828x914	72x36	---	---	50	2	10.37	183x92x6
CL2-310	---	---	1828x990	72x39	---	---	50	2	11.23	183x100x6
CL2-311	---	---	1828x1066	72x42	---	---	50	2	12.10	183x107x6
CL2-312	---	---	1828x1143	72x45	---	---	50	2	12.96	183x115x6
CL2-313	---	---	1828x1219	72x48	---	---	50	2	13.82	183x122x6
CL2-314	---	---	1828x1295	72x51	---	---	50	2	14.69	183x130x6
CL2-315	---	---	1828x1371	72x54	---	---	50	2	15.55	183x138x6

| Orden de Compra | Solicitar 0recios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

Dimensiones (mm)

Montaje

Perforar un agujero en la pared con las dimensiones  X y Y, y fijar.
Para mayor flujo de aire fresco, es posible modular los ComboLouv 2" con solera, ver dibujo: Esta es una de las grandes cualidades que tienen nuestros ComboLouv 2". Se pueden modular en diversas formas originales y funcionales.
Es importante ubicar estos Louvers a una altura mínima del piso, como se indica en el dibujo. Retirar la malla mosquitera y fijar por la parte interior de ComboLouv directamente a la pared o estructura.
Para un correcto montaje se deberá fijar con tornillos de 3" de longitud o más largos. VentDepot Team, monta, instala o da mantenimiento a cualquiera de nuestros equipos, de forma rápida, segura y conforme a las normas industriales. Suministro y servicio a toda la República Mexicana.

Cualidades
	Rejilla desmontable para un fácil mantenimiento y fácil instalación del Louver.
	Diseño rígido con 2 pulgadas de grosor ofreciendo una máxima robustes, fabricado 100% aluminio.

| Inicio   |  Registrate |  Productos | Servicios | Materiales |Especiales | Precios   |  AutoCad |  Orden de Compra | Obras | Ofertas | Seminarios | La Empresa | Chat ICQo Messenger |  Correo | Información Técnica | Sitios de Interés | Otros | Lo Nuevo | Intranet | Imprimir |

Copyright © 1996-2001, Todo en Ventilación S.A. de C.V. tiene todos los derechos reservados. VentDepot México: (52) (55) 5822-1516. TelFax: (52) (55) 5825-0752. mexico@ventdepot.com VentDepot Perú: (051) 445-5693. TelFax: (051) 436-7042. peru@ventdepot.com VentDepot USA: 4336 Gessener, Houston, Texas, USA. 77041, P.O. Box. usa@ventdepot.com
