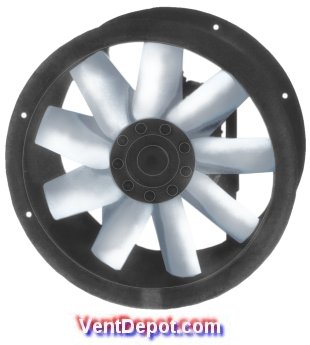

Equipos y Productos: TurboHelicoCentrífugos: HelicoBlast.
Características Generales

Este TurboCentrífugos HelicoBlast VentDepot, ha sido diseñado  en dos diámetros de 1000 y 1250 mm.
Aspas en 100% Aluminio rígido.
Con sentido del aire motor - hélice.
Carcasa en placa galvanizada rolado en caliente.
De 3, 6 ó 9 palas con ángulos de inclinación variables, lo que permite obtener la más completa gama de caudales y presiones.
Motor con protección IPSS, para protección en ambientes húmedos  o polvosos, totalmente cerrado con ventilación exterior.
Aplicaciones
Extrae: Calor, vapor, humo y olores.
Para uso en: Túneles, estacionamientos, presurizaciones en conductos, cabinas de ascensores, tiro mecánico de chimeneas, casetas de pintura, procesos industriales en general, minas, etc.
Garantía
1 (Un) año de Garantía certificado por escrito en el motor, sujeto a las claúsulas.

Características Técnicas Específicas

Clave

Caudal a descarga libre

No. de Aspas

RPM

Amperaje

Potencia

Nivel Sonoro

Peso y Dimensión con Empaque de Madera

CFM

m3/hr
Aspas

pulg

220V
440V

HP

dB

Kg

cm

HBS-001

12353 21000 39 3 1150 9.2 4.6 3  77 80 115x105x86

HBS-002

 12647 21500 39 3 1150 4.6 2.3 1.5 69 55 115x105x86

HBS-003

13000 22100 39 6 1150 6.2 3.1 2 69 69 115x105x86

HBS-004

17294 29400 39 3 1150 6.2 3.1 2 71 62 115x105x86

HBS-005

17647 30000 39 6 1150 9.2 4.6 3 70 73 115x105x86

HBS-006

18235 31000 39 9 1725 26 13 7.5 86 93 115x105x86

HBS-007

56100 33000 39 6 1150 15.8 7.9 5 79 92 115x105x86

HBS-008

58650 34500 39 3 1725 13.6 6.8 5 85 63 115x105x86

HBS-009

59500 35000 39 6 1725 25.2 12.6 7.5 86 73 115x105x86

HBS-010

60010 35300 39 6 1150 15.8 7.9 5 71 85 115x105x86

HBS-011

20941 35600 39 6 1725 27.6 13.8 10 88 101 115x105x86

HBS-012

21176 36000 39 3 1150 9.2 4.6 3 73 66 115x105x86

HBS-013

21471 36500 39 6 1725 26 13 7.5 87 86 115x105x86

HBS-014

22118 37600 39 9 1150 11.1 5.55 7.5 81 99 115x105x86

HBS-015

22353 39000 39 3 1725 25.2 12.6 7.5 87 68 115x105x86

HBS-016

24118 41000 39 3 1150 15.8 7.9 5  75 78 115x105x86

HBS-017

25765 43800 39 6 1150 22.2 11.1 7.5 72 92 115x105x86

HBS-018

25882 44000 39 3 1725 26 13 7.5 89 79 115x105x86

HBS-019

26471 45000 39 6 1725 27.6 13.8 10 88 94 115x105x86

HBS-020

27118 46100 39 3 1150 22.2 11.1 7.5 77 95 115x105x86

HBS-021

27647 47000 39 9 1150 11.9 5.95 7.5 83 107 115x105x86

HBS-022

29353 49900 39 6 1150 23.8 11.9 7.5 73 100 115x105x86

HBS-023

30294 51500 39 6 1150 29.2 14.6 10 74 123 115x105x86

HBS-024

30882 52500 39 9 1725 39.4 19.7 15 90 125 115x105x86

HBS-025

31765 54000 39 3 1725 27.6 13.8 10 91 87 115x105x86

HBS-026

32412 55100 39 9 1150 14.6 7.3 10 87 130 115x105x86

HBS-027

34821 59200 39 6 1725 39.4 19.7 15 89 118 115x105x86

HBS-028

35824 60900 39 9 1725 51.6 25.8 20 92 140 115x105x86

HBS-029

37941 64500 39 3 1725 39.4 19.7 15 93 111 115x105x86

HBS-030

39059 66400 39 3 1725 51.6 25.8 20 95 126 115x105x86

HBS-031

41059 69800 39 6 1725 51.6 25.5 20 90 133 115x105x86

HBS-032

43882 74600 39 6 1725 64 32 25 91 180 115x105x86

HBS-033

44353 75400 39 6 1725 76 38 30 92 195 115x105x86

HBS-034

45176 76800 39 9 1725 64 32 25 94 187 115x105x86

HBS-035

46941 79800 39 9 1725 76 38 30 96 202 115x105x86

HBS-036

22824 38800 49 3 1150 9.2 4.6 3 78 85 140x130x100

HBS-037

25882 44000 49 3 1150 15.8 7.9 5 79 97 140x130x100

HBS-038

26235 44600 49 6 1150 22.2 11.1 7.5 80 114 140x130x100

HBS-039

26471 45000 49 9 1150 23.8 11.9 7.5 77 132 140x130x100

HBS-040

31176 53000 49 3 1150 22.2 11.1 7.5 80 104 140x130x100

HBS-041

32412 55100 49 6 1150 23.8 11.9 7.5 81 122 140x130x100

HBS-042

33412 56800 49 9 1150 29.2 14.6 10 79 155 140x130x100

HBS-043

34588 58800 49 3 1725 27.6 13.8 10 90 106 140x130x100

HBS-044

36765 62500 49 3 1150 23.8 11.9 7.5 81 112 140x130x100

HBS-045

39294 66800 49 6 1725 51.6 25.8 20 91 155 140x130x100

HBS-046

40588 69000 49 3 1150 29.2 14.6 10 82 145 140x130x100

HBS-047

41471 70500 49 3 1150 29.2 14.6 10 82 135 140x130x100

HBS-048

42235 71800 49 9 1725 39.4 19.7 15 91 130 140x130x100

HBS-049

45588 77500 49 3 1150 42 21 15 83 167 140x130x100

HBS-050

45765 77800 49 9 1150 42 21 15 81 187 140x130x100

HBS-051

48059 81700 49 6 1725 64 32 25 91 202 140x130x100

HBS-052

48176 81900 49 6 1150 42 21 15 83 177 140x130x100

HBS-053

49529 84200 49 3 1725 51.6 25.8 20 91 145 140x130x100

HBS-054

52059 88500 49 9 1150 54.4 27.2 20 81 277 140x130x100

HBS-055

54412 92500 49 6 1150 54.4 27.2 20 84 217 140x130x100

HBS-056

55118 93700 49 3 1725 32 64 25 93 192 140x130x100

HBS-057

56353 95800 49 6 1150 63.6 31.8 25 85 260 140x130x100

HBS-058

57000 96900 49 9 1150 63.6 31.8 25 85 270 140x130x100

HBS-059

57412 97600 49 6 1725 76 38 30 92 217 140x130x100

HBS-060

58235 99000 49 9 1150 77.2 38.6 30 85 280 140x130x100

HBS-061

60294 102500 49 3 1725 76 38 30 93 207 140x130x100

HBS-062

60706 103200 49 3 1725 103 51.5 40 94 250 140x130x100

HBS-063

62118 105600 49 3 1725 127 63.5 50 95 283 140x130x100

HBS-064

64235 109200 49 6 1725 103 51.5 40 93 260 140x130x100

HBS-065

71765 122000 49 6 1725 127 63.5 50 94 293 140x130x100
| Orden de Compra | Solicitar Precios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

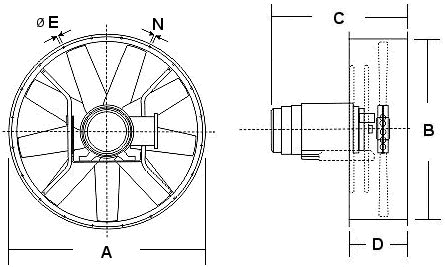

Dimensiones

Clave A B C           D E No.
<30 HP 40-50 HP

HBS-(001al 035)

1105 1000 815 450 450 15 16

HBS-(036al 065)

1355 1250 954 400 500 15 20

Presión Estática

mmcda

Clave

5 10 15 20 25 30 35 40 45 50 60 70 80

HBS-001

21000 19210 17311 15011 13104 -- -- -- -- -- -- -- --

HBS-002

21500 11285 -- -- -- -- -- -- -- -- -- -- --

HBS-003

22100 15485 17893 13425 9825 -- -- -- -- -- -- -- --

HBS-004

29400 24985 21672 -- -- -- -- -- -- -- -- -- --

HBS-005

30000 28325 25235 22015 17234 -- -- -- -- -- -- -- --

HBS-006

31000 30022 29105 28751 27112 26510 24971 24201 22017 17891 -- -- --

HBS-007

33000 31120 29244 26325 22324 18435 -- -- -- -- -- -- --

HBS-008

34500 30821 27581 26547 25154 19457 15624 -- -- -- -- -- --

HBS-009

35000 32554 31987 29875 28531 26123 24986 23201 20013 18324 -- -- --

HBS-010

35300 33125 30795 27672 22476 -- -- -- -- -- -- -- --

HBS-011

35600 35100 34903 34102 33607 29867 28511 26358 24201 23112 -- -- --

HBS-012

36000 31455 26562 -- -- -- -- -- -- -- -- -- --

HBS-013

36500 36358 35986 34785 33748 31254 28754 26789 24357 22365 15347 -- --

HBS-014

37600 36978 34988 32821 27134 -- -- -- -- -- -- -- --

HBS-015

39000 37142 32547 33658 29995 26587 23012 16587 -- -- -- -- --

HBS-016

41000 31457 27891 -- -- -- -- -- -- -- -- -- --

HBS-017

43800 41122 39255 36124 31997 -- -- -- -- -- -- -- --

HBS-018

44000 43557 41012 38546 36214 33254 29999 24045 -- -- -- -- --

HBS-019

45000 44896 43875 42587 41250 38897 37869 45500 44785 31105 24203 -- --

HBS-020

46100 39897 36272 -- -- -- -- -- -- -- -- -- --

HBS-021

47000 44799 42989 40324 36436 -- -- -- -- -- -- -- --

HBS-022

49900 43384 41876 39436 35101 -- -- -- -- -- -- -- --

HBS-023

51500 49210 41579 44325 40101 -- -- -- -- -- -- -- --

HBS-024

52500 52100 52050 52010 50000 48601 47310 46410 44879 41513 -- -- --

HBS-025

54000 52445 49877 47521 45551 43321 39875 35664 -- -- -- -- --

HBS-026

55100 52324 506931 47357 44329 -- -- -- -- -- -- -- --

HBS-027

59200 57841 56547 54987 53698 52100 49899 47521 46621 44874 33214 -- --

HBS-028

60900 60601 60001 59530 58761 57092 56701 55010 54217 50070 42791 -- --

HBS-029

64500 63212 11275 58645 56123 54321 51234 49875 -- -- -- -- --

HBS-030

66400 65874 64555 62334 29823 57869 34598 79887 -- -- -- -- --

HBS-031

69800 67121 66520 65523 65010 64321 63857 60879 57963 55879 45520 -- --

HBS-032

74600 74122 73500 72345 70025 68785 66221 65432 64578 62100 55100 -- --

HBS-033

75400 75000 74954 73521 72987 72869 70100 67588 66980 64288 55521 -- --

HBS-034

76800 76510 76451 75172 74301 73818 72127 70100 67519 66424 57675 -- --

HBS-035

79800 78753 77941 77644 76986 76510 75516 74584 74012 70098 61540 -- --

HBS-036

38880 34565 28128 18423 -- -- -- -- -- -- -- -- --

HBS-037

44000 40764 29465 25327 -- -- -- -- -- -- -- -- --

HBS-038

44600 43760 39879 35437 30889 25101 19978 14877 -- -- -- -- --

HBS-039

45000 41372 39871 36465 34236 32419 29877 27536 20316 -- -- -- --

HBS-040

53000 48764 41712 36129 -- -- -- -- -- -- -- -- --

HBS-041

55100 54795 50781 47248 41899 36501 28671 21991 -- -- -- -- --

HBS-042

56800 55881 54631 55401 52232 50106 45010 39403 -- -- -- -- --

HBS-043

58800 57814 55614 52461 49619 45201 40000 34591 28677 -- -- -- --

HBS-044

62500 58437 53431 49723 -- -- -- -- -- -- -- -- --

HBS-045

66800 65917 65247 63757 61285 59975 57896 55764 52356 50001 45235 34666 27465

HBS-046

69000 67836 64437 59871 54581 48765 38474 -- -- -- -- -- --

HBS-047

70500 67854 63874 58178 -- -- -- -- -- -- -- -- --

HBS-048

71800 70861 69901 66431 62871 59978 55627 50510 44866 37653 -- -- --

HBS-049

77500 70238 69102 64525 -- -- -- -- -- -- -- -- --

HBS-050

77800 76406 71432 69331 65108 60123 52673 44978 -- -- -- -- --

HBS-051

81700 81422 80235 79488 778523 77595 75887 73456 69102 66432 58793 79572 37597

HBS-052

81900 79795 75430 72566 68348 62676 -- -- -- -- -- -- --

HBS-053

84200 83671 80199 78761 75111 71103 68263 63861 58652 51201 -- -- --

HBS-054

88500 85099 83433 79231 75333 73324 69783 62122 -- -- -- -- --

HBS-055

92500 90120 88674 84319 80101 76401 -- -- -- -- -- -- --

HBS-056

93700 93412 91213 88100 85271 82117 78235 74971 70001 54670 -- -- --

HBS-057

95800 94674 91235 88789 84435 79891 -- -- -- -- -- -- --

HBS-058

96900 96222 93531 90637 88635 86230 80441 75011 -- -- -- -- --

HBS-059

97600 97427 95632 94565 91024 89501 87433 85896 83457 80000 73524 60100 50110

HBS-060

99000 98871 96234 93244 90239 88634 85001 75137 -- -- -- -- --

HBS-061

102500 101455 100000 97522 94789 90125 88467 84371 78789 73261 -- -- --

HBS-062

103200 102516 100125 99510 98562 97437 96670 94635 90000 87976 -- -- --

HBS-063

105600 104632 103462 102893 100880 99431 98329 97483 94127 86791 -- -- --

HBS-064

109200 108792 106880 105465 103589 101362 98144 96831 93201 90000 82178 -- --

HBS-065

122000 121555 120205 118897 116874 114359 112582 109231 106587 104997 97465 90010 --

*Caudales en m3/hr.
