General Characteristics

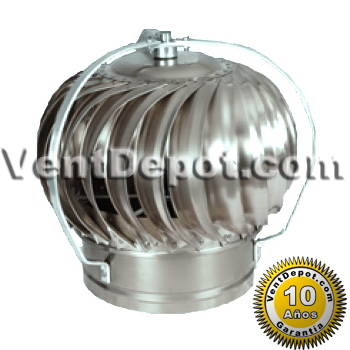

The VentDepot EmpiGalv is a dependable galvanized steel rotary turbine which works automatically, continuously and silently without operating or maintenance costs.
Outside braced for strength, safety and perfect alignment.
Ventilators up to and including 14” are aluminum braced. Larger sizes are steel braced for additional strength.
Operation is simple and sure.
When the slightest breeze touches the aerodynamic blade construction it causes the turbine to rotate. The centrifugal force caused by the revolving turbine creates a partial vacuum within the turbine. This vacuum is then replaced by a strong upward draft of air. A powerful exhaust is thus achieved.
Precision Built With Ball Bearings
The lower thrust bearing is a hardened steel ball riding in a hardened steel concave seat (in sizes up to 8”) for extreme sensitivity and wear ability. In larger sizes, thrust type ball bearings are used. Upper bearings on all ventilators are bronze oil less.
The rigid construction of these storm proof ventilators assures years of efficient service.
No adjusting or servicing is required.
Applications
Removes heat, vapor, gasses, odors, smoke, solvents, and humidity.
Used for: ventilation in small and large areas, exhaust pipes, bathrooms, warehouses, factories, commercial buildings, and all large projects of ventilation. The turbine can operate up to temperatures of 150°F.
Warranty
Manufacturer’s Limited Warranty: 10 Years |
|
|
|
|
|
|
|
