Equipos y Productos: TurboDifusores: DiamanFlat 3 Way.

Características Generales

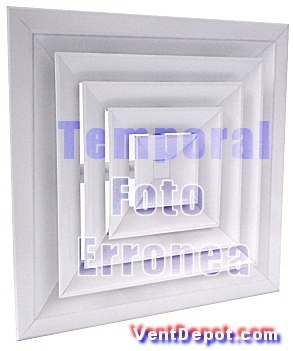

Este TurboDifusor DiamanFlat 3 Way VentDepot, es de techo tipo diamante de alta capacidad.
Gran apariencia estética que armoniza con detalles arquitectónicos, especialmente en techos modulares.
Fabricada en 3 vías con difusión de aire Cuadrado, a la Altura o a la Base.
El núcleo es totalmente removible desde la vista del difusor, lo que facilita su instalación y mantenimiento.
Acabado en pintura electrostática horneada Blanco dober.

Aplicaciones
Para uso en: Cualquier ramo industrial, comercial o residencial.

Garantía

1 (Un) año de Garantía, certificado por escrito, sujeto a las cláusulas.

Características Técnicas Específicas

Clave
Cuadrado
60%
    20%    20%
Rectangular
60%
20%  20%
Rectangular
30%
35%  35%
Rectangular
20%
40%  40%
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DF3-001

152x152 6x6 --- --- --- --- --- --- 44 1 3/4 225 0.5 16x16x5

DF3-002

--- --- 229x152 9x6 --- --- --- --- 44 1 3/4 338 0.6 23x16x5

DF3-003

--- --- --- --- 229x12 9x6 --- --- 44 1 3/4 338 0.6 23x16x5

DF3-004

--- --- --- --- --- --- 229x152 9x6 44 1 3/4 338 0.6 23x16x5

DF3-005

229x229 9x9 --- --- --- --- --- --- 44 1 3/4 506 0.7 23x23x5

DF3-006

--- --- 305x152 12x6 --- --- --- --- 44 1 3/4 450 0.8 31x15x5

DF3-007

--- --- --- --- 305x152 12x6 --- --- 44 1 3/4 450 0.8 31x15x5

DF3-008

--- --- --- --- --- --- 305x152 12x6 44 1 3/4 450 0.8 31x15x5

DF3-009

--- --- 305x229 12x9 --- --- --- --- 44 1 3/4 675 0.9 31x23x5

DF3-010

--- --- --- --- 305x229 12x9 --- --- 44 1 3/4 675 0.9 31x23x5

DF3-011

--- --- --- --- --- --- 305x229 12x9 44 1 3/4 675 0.9 31x23x5

DF3-012

305x305 12x12 --- --- --- --- --- --- 44 1 3/4 900 1.0 31x31x5

DF3-013

--- --- 381x152 15x6 --- --- --- --- 44 1 3/4 563 1.1 39x16x5

DF3-014

--- --- --- --- 381x152 15x6 --- --- 44 1 3/4 563 1.1 39x16x5

DF3-015

--- --- --- --- --- --- 381x152 15x6 44 1 3/4 563 1.1 39x16x5

DF3-016

--- --- 381x229 15x9 --- --- --- --- 44 1 3/4 844 1.2 39x23x5

DF3-017

--- --- --- --- 381x229 15x9 --- --- 44 1 3/4 844 1.2 39x23x5

DF3-018

--- --- --- --- --- --- 381x229 15x9 44 1 3/4 844 1.2 39x23x5

DF3-019

--- --- 381x305 15x12 --- --- --- --- 44 1 3/4 1125 1.3 39x31x5

DF3-020

--- --- --- --- 381x305 15x12 --- --- 44 1 3/4 1125 1.3 39x31x5

DF3-021

--- --- --- --- --- --- 381x305 15x12 44 1 3/4 1125 1.3 39x31x5

DF3-022

381x381 15x15 --- --- --- --- --- --- 44 1 3/4 1406 1.4 39x39x5

DF3-023

--- --- 457x152 18x6 --- --- --- --- 44 1 3/4 675 1.5 46x46x5

DF3-024

--- --- --- --- 457x152 18x6 --- --- 44 1 3/4 675 1.5 46x46x5

DF3-025

--- --- --- --- --- --- 457x152 18x6 44 1 3/4 675 1.5 46x46x5
Clave
Cuadrado
60%
    20%    20%
Rectangular
60%
20%  20%
Rectangular
30%
35%  35%
Rectangular
20%
40%  40%
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DF3-026

--- --- 457x229 18x9 --- --- --- --- 44 1 3/4 1013 1.6 46x23x5

DF3-027

--- --- --- --- 457x229 18x9 --- --- 44 1 3/4 1013 1.6 46x23x5

DF3-028

--- --- --- --- --- --- 457x229 18x9 44 1 3/4 1013 1.6 46x23x5

DF3-029

--- --- 457x305 18x12 --- --- --- --- 44 1 3/4 900 1.7 46x31x5

DF3-030

--- --- --- --- 457x305 18x12 --- --- 44 1 3/4 900 1.7 46x31x5

DF3-031

--- --- --- --- --- --- 457x305 18x12 44 1 3/4 900 1.7 46x31x5

DF3-032

--- --- 457x381 18x15 --- --- --- --- 44 1 3/4 1688 1.8 46x39x5

DF3-033

--- --- --- --- 457x381 18x15 --- --- 44 1 3/4 1688 1.8 46x39x5

DF3-034

--- --- --- --- --- --- 457x381 18x15 44 1 3/4 1688 1.8 46x39x5

DF3-035

457x457 18x18 --- --- --- --- --- --- 44 1 3/4 2025 1.9 46x46x5

DF3-036

--- --- 534x152 21x6 --- --- --- --- 44 1 3/4 788 2.1 54x16x5

DF3-037

--- --- --- --- 534x152 21x6 --- --- 44 1 3/4 788 2.1 54x16x5

DF3-038

--- --- --- --- --- --- 534x152 21x6 44 1 3/4 788 2.1 54x16x5

DF3-039

--- --- 534x229 21x9 --- --- --- --- 44 1 3/4 900 2.2 54x23x5

DF3-040

--- --- --- --- 534x229 21x9 --- --- 44 1 3/4 900 2.2 54x23x5

DF3-041

--- --- --- --- --- --- 534x229 21x9 44 1 3/4 900 2.2 54x23x5

DF3-042

--- --- 534x305 21x12 --- --- --- --- 44 1 3/4 1575 2.3 54x31x5

DF3-043

--- --- --- --- 534x305 21x12 --- --- 44 1 3/4 1575 2.3 54x31x5

DF3-044

--- --- --- --- --- --- 534x305 21x12 44 1 3/4 1575 2.3 54x31x5

DF3-045

--- --- 534x381 21x15 --- --- --- --- 44 1 3/4 1969 2.4 54x39x5

DF3-046

--- --- --- --- 534x381 21x15 --- --- 44 1 3/4 1969 2.4 54x39x5

DF3-047

--- --- --- --- --- --- 534x381 21x15 44 1 3/4 1969 2.4 54x39x5

DF3-048

--- --- 534x457 21x18 --- --- --- --- 44 1 3/4 2363 2.5 54x46x5

DF3-049

--- --- --- --- 534x457 21x18 --- --- 44 1 3/4 2363 2.5 54x46x5

DF3-050

--- --- --- --- --- --- 534x457 21x18 44 1 3/4 2363 2.5 54x46x5
Clave
Cuadrado
60%
    20%    20%
Rectangular
60%
20%  20%
Rectangular
30%
35%  35%
Rectangular
20%
40%  40%
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DF3-051

534x534 21x21 --- --- --- --- --- --- 44 1 3/4 2756 2.6 54x54x5

DF3-052

--- --- 610x152 24x6 --- --- --- --- 44 1 3/4 900 2.7 62x16x5

DF3-053

--- --- --- --- 610x152 24x6 --- --- 44 1 3/4 900 2.7 62x16x5

DF3-054

--- --- --- --- --- --- 610x152 24x6 44 1 3/4 900 2.7 62x16x5

DF3-055

--- --- 610x229 24x9 --- --- --- --- 44 1 3/4 1350 2.8 62x23x5

DF3-056

--- --- --- --- 610x229 24x9 --- --- 44 1 3/4 1350 2.8 62x23x5

DF3-057

--- --- --- --- --- --- 610x229 24x9 44 1 3/4 1350 2.8 62x23x5

DF3-058

--- --- 610x305 24x12 --- --- --- --- 44 1 3/4 1800 2.9 62x31x5

DF3-059

--- --- --- --- 610x305 24x12 --- --- 44 1 3/4 1800 2.9 62x31x5

DF3-060

--- --- --- --- --- --- 610x305 24x12 44 1 3/4 1800 2.9 62x31x5

DF3-061

--- --- 610x381 24x15 --- --- --- --- 44 1 3/4 2250 3.0 62x39x5

DF3-062

--- --- --- --- 610x381 24x15 --- --- 44 1 3/4 2250 3.0 62x39x5

DF3-063

--- --- --- --- --- --- 610x381 24x15 44 1 3/4 2250 3.0 62x39x5

DF3-064

--- --- 610x457 24x18 --- --- --- --- 44 1 3/4 2700 3.1 62x46x5

DF3-065

--- --- --- --- 610x457 24x18 --- --- 44 1 3/4 2700 3.1 62x46x5

DF3-066

--- --- --- --- --- --- 610x457 24x18 44 1 3/4 2700 3.1 62x46x5

DF3-067

--- --- 610x534 24x21 --- --- --- --- 44 1 3/4 3150 3.2 62x54x5

DF3-068

--- --- --- --- 610x534 24x21 --- --- 44 1 3/4 3150 3.2 62x54x5

DF3-069

--- --- --- --- --- --- 610x534 24x21 44 1 3/4 3150 3.2 62x54x5

DF3-070

610x610 24x24 --- --- --- --- --- --- 44 1 3/4 3600 3.3 62x62x5

DF3-071

--- --- 686x152 27x6 --- --- --- --- 44 1 3/4 1013 3.4 69x16x5

DF3-072

--- --- --- --- 686x152 27x6 --- --- 44 1 3/4 1013 3.4 69x16x5

DF3-073

--- --- --- --- --- --- 686x152 27x6 44 1 3/4 1013 3.4 69x16x5

DF3-074

--- --- 686x229 27x9 --- --- --- --- 44 1 3/4 1519 3.5 69x23x5
Clave
Cuadrado
60%
    20%    20%
Rectangular
60%
20%  20%
Rectangular
30%
35%  35%
Rectangular
20%
40%  40%
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DF3-075

--- --- --- --- 686x229 27x9 --- --- 44 1 3/4 1519 3.5 69x23x5

DF3-076

--- --- --- --- --- --- 686x229 27x9 44 1 3/4 1519 3.5 69x23x5

DF3-077

--- --- 686x305 27x12 --- --- --- --- 44 1 3/4 2025 3.6 69x31x5

DF3-078

--- --- --- --- 686x305 27x12 --- --- 44 1 3/4 2025 3.6 69x31x5

DF3-079

--- --- --- --- --- --- 686x305 27x12 44 1 3/4 2025 3.6 69x31x5

DF3-080

--- --- 686x381 27x15 --- --- --- --- 44 1 3/4 2532 3.7 69x39x5

DF3-081

--- --- --- --- 686x381 27x15 --- --- 44 1 3/4 2532 3.7 69x39x5

DF3-082

--- --- --- --- --- --- 686x381 27x15 44 1 3/4 2532 3.7 69x39x5

DF3-083

--- --- 686x457 27x18 --- --- --- --- 44 1 3/4 3038 3.8 69x46x5

DF3-084

--- --- --- --- 686x457 27x18 --- --- 44 1 3/4 3038 3.8 69x46x5

DF3-085

--- --- --- --- --- --- 686x457 27x18 44 1 3/4 3038 3.8 69x46x5

DF3-086

--- --- 686x534 27x21 --- --- --- --- 44 1 3/4 3544 3.9 69x54x5

DF3-087

--- --- --- --- 686x534 27x21 --- --- 44 1 3/4 3544 3.9 69x54x5

DF3-088

--- --- --- --- --- --- 686x534 27x21 44 1 3/4 3544 3.9 69x54x5

DF3-089

--- --- 686x610 27x24 --- --- --- --- 44 1 3/4 4050 4.0 69x62x5

DF3-090

--- --- --- --- 686x610 27x24 --- --- 44 1 3/4 4050 4.0 69x62x5

DF3-091

--- --- --- --- --- --- 686x610 27x24 44 1 3/4 4050 4.0 69x62x5

DF3-092

686x686 27x27 --- --- --- --- --- --- 44 1 3/4 4615 4.1 69x69x5

DF3-093

--- --- 762x152 30x6 --- --- --- --- 44 1 3/4 1125 4.2 77x16x5

DF3-094

--- --- --- --- 762x152 30x6 --- --- 44 1 3/4 1125 4.2 77x16x5

DF3-095

--- --- --- --- --- --- 762x152 30x6 44 1 3/4 1125 4.2 77x16x5

DF3-096

--- --- 762x229 30x9 --- --- --- --- 44 1 3/4 1688 4.3 77x23x5

DF3-097

--- --- --- --- 762x229 30x9 --- --- 44 1 3/4 1688 4.3 77x23x5

DF3-098

--- --- --- --- --- --- 762x229 30x9 44 1 3/4 1688 4.3 77x23x5

DF3-099

--- --- 762x305 30x12 --- --- --- --- 44 1 3/4 2250 4.4 77x31x5

DF3-100

--- --- --- --- 762x305 30x12 --- --- 44 1 3/4 2250 4.4 77x31x5
Clave
Cuadrado
60%
    20%    20%
Rectangular
60%
20%  20%
Rectangular
30%
35%  35%
Rectangular
20%
40%  40%
Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DF3-101

--- --- --- --- --- --- 762x305 30x12 44 1 3/4 2250 4.4 77x31x5

DF3-102

--- --- 762x381 30x15 --- --- --- --- 44 1 3/4 2813 4.5 77x39x5

DF3-103

--- --- --- --- 762x381 30x15 --- --- 44 1 3/4 2813 4.5 77x39x5

DF3-104

--- --- --- --- --- --- 762x381 30x15 44 1 3/4 2813 4.5 77x39x5

DF3-105

--- --- 762x457 30x18 --- --- --- --- 44 1 3/4 3375 4.6 77x46x5

DF3-106

--- --- --- --- 762x457 30x18 --- --- 44 1 3/4 3375 4.6 77x46x5

DF3-107

--- --- --- --- --- --- 762x457 30x18 44 1 3/4 3375 4.6 77x46x5

DF3-108

--- --- 762x534 30x21 --- --- --- --- 44 1 3/4 3938 4.7 77x54x5

DF3-109

--- --- --- --- 762x534 30x21 --- --- 44 1 3/4 3938 4.7 77x54x5

DF3-110

--- --- --- --- --- --- 762x534 30x21 44 1 3/4 3938 4.7 77x54x5

DF3-111

--- --- 762x610 30x24 --- --- --- --- 44 1 3/4 4500 4.8 77x62x5

DF3-112

--- --- --- --- 762x610 30x24 --- --- 44 1 3/4 4500 4.8 77x62x5

DF3-113

--- --- --- --- --- --- 762x610 30x24 44 1 3/4 4500 4.8 77x62x5

DF3-114

--- --- 762x686 30x27 --- --- --- --- 44 1 3/4 5063 4.9 77x69x5

DF3-115

--- --- --- --- 762x686 30x27 --- --- 44 1 3/4 5063 4.9 77x69x5

DF3-116

--- --- --- --- --- --- 762x686 30x27 44 1 3/4 5063 4.9 77x69x5

DF3-117

--- --- 762x762 30x30 --- --- --- --- 44 1 3/4 5625 5.0 77x77x5

| Orden de Compra | Solicitar Precios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

Montaje

Perforar panel o tabla roca al tamaño correspondiente al difusor, conectar a difusor y descansar el TurboDifusor DiamanFlat 3 Way sobre el marco.

VentDepot Team, monta, instala o da mantenimiento a cualquiera de nuestros equipos, de forma rápida, segura y conforme a las normas industriales.

Suministro y servicio a toda la República Mexicana.

Dimensiones

Clave A B C D E

DF3-053

610 152 44 686 229

DF3-054

610 152 44 686 229

DF3-055

610 229 44 686 305

DF3-056

610 229 44 686 305

DF3-057

610 229 44 686 305

DF3-058

610 305 44 686 381

DF3-059

610 305 44 686 381

DF3-060

610 305 44 686 381

DF3-061

610 381 44 686 457

DF3-062

610 381 44 686 457

DF3-063

610 381 44 686 457

DF3-064

610 457 44 686 534
Clave A B C D E

DF3-065

610 457 44 686 534

DF3-001

152 152 44 229 229

DF3-066

610 457 44 686 534

DF3-002

229 152 44 305 229

DF3-067

610 534 44 686 610

DF3-003

229 152 44 305 229

DF3-068

610 534 44 686 610

DF3-004

229 152 44 305 229

DF3-069

610 534 44 686 610

DF3-005

229 229 44 305 305

DF3-070

610 610 44 686 686

DF3-006

305 152 44 381 229

DF3-071

686 152 44 762 229

DF3-007

305 152 44 381 229

DF3-072

686 152 44 762 229

DF3-008

305 152 44 381 229

DF3-073

686 152 44 762 229

DF3-009

305 229 44 381 305

DF3-074

686 229 44 762 305

DF3-010

305 229 44 381 305

DF3-075

686 229 44 762 305

DF3-011

305 229 44 381 305

DF3-076

686 229 44 762 305

DF3-012

305 305 44 381 381

DF3-077

686 305 44 762 381

DF3-013

381 152 44 457 229

DF3-078

686 305 44 762 381

DF3-014

381 152 44 457 229

DF3-079

686 305 44 762 381

DF3-015

381 152 44 457 229

DF3-080

686 381 44 762 457

DF3-016

381 229 44 457 305

DF3-081

686 381 44 762 457

DF3-017

381 229 44 457 305

DF3-082

686 381 44 762 457

DF3-018

381 229 44 457 305

DF3-083

686 457 44 762 534

DF3-019

381 305 44 457 381

DF3-084

686 457 44 762 534

DF3-020

381 305 44 457 381

DF3-085

686 457 44 762 534

DF3-021

381 305 44 457 381

DF3-086

686 534 44 762 610

DF3-022

381 381 44 457 457

DF3-087

686 534 44 762 610

DF3-023

457 152 44 534 229

DF3-088

686 534 44 762 610

DF3-024

457 152 44 534 229

DF3-089

686 610 44 762 686

DF3-025

457 152 44 534 229

DF3-090

686 610 44 762 686

DF3-026

457 229 44 534 305

DF3-091

686 610 44 762 686

DF3-027

457 229 44 534 305

DF3-092

686 686 44 762 762

DF3-028

457 229 44 534 305

DF3-093

762 152 44 838 229

DF3-029

457 305 44 534 381

DF3-094

762 152 44 838 229

DF3-030

457 305 44 534 381

DF3-095

762 152 44 838 229

DF3-031

457 305 44 534 381

DF3-096

762 229 44 838 305

DF3-032

457 381 44 534 457

DF3-097

762 229 44 838 305

DF3-033

457 381 44 534 457

DF3-098

762 229 44 838 305

DF3-034

457 381 44 534 457

DF3-099

762 305 44 838 381

DF3-035

457 457 44 534 534

DF3-100

762 305 44 838 381

DF3-036

534 152 44 610 229

DF3-101

762 305 44 838 381

DF3-037

534 152 44 610 229

DF3-102

762 381 44 838 457

DF3-038

534 152 44 610 229

DF3-103

762 381 44 838 457

DF3-039

534 229 44 610 305

DF3-104

762 381 44 838 457

DF3-040

534 229 44 610 305

DF3-105

762 457 44 838 534

DF3-041

534 229 44 610 305

DF3-106

762 457 44 838 534

DF3-042

534 305 44 610 381

DF3-107

762 457 44 838 534

DF3-043

534 305 44 610 381

DF3-108

762 534 44 838 610

DF3-044

534 305 44 610 381

DF3-109

762 534 44 838 610

DF3-045

534 381 44 610 457

DF3-110

762 534 44 838 610

DF3-046

534 381 44 610 457

DF3-111

762 610 44 838 686

DF3-047

534 381 44 610 457

DF3-112

762 610 44 838 686

DF3-048

534 457 44 610 534

DF3-113

762 610 44 838 686

DF3-049

534 457 44 610 534

DF3-114

762 686 44 838 762

DF3-050

534 457 44 610 534 DF3-115 762 686 44 838 762

DF3-051

534 534 44 610 610 DF3-116 762 686 44 838 762

DF3-052

610 152 44 686 229 DF3-117 762 762 44 838 838

Cualidades

Vista posterior. Soportes rígidos que le dan una buena resistencia a los álabes difusores.

Sumamente ligero y fácil de instalar, brindando un aspecto estético y funcional.

Vista lateral, diseño altamente estético y discreto.

| Inicio   RegistrateProductos | Servicios | Materiales | Especiales | Precios   |  AutoCadOrden de Compra | Obras | Ofertas | Seminarios | La Empresa | Chat ICQo MessengerCorreo | Información Técnica | Sitios de Interés | Otros | Lo Nuevo | Intranet | Imprimir |
CiberStats. Pincha para estadisticas.Copyright © 1996-2001, Todo en Ventilación S.A. de C.V. tiene todos los derechos reservados.
VentDepot México: (52) (55) 5822-1516. TelFax: (52) (55) 5825-0752. mexico@ventdepot.com
VentDepot Perú: (051) 445-5693. TelFax: (051) 436-7042. peru@ventdepot.com
VentDepot USA: 4336 Gessener, Houston, Texas, USA. 77041, P.O. Box. usa@ventdepot.com
