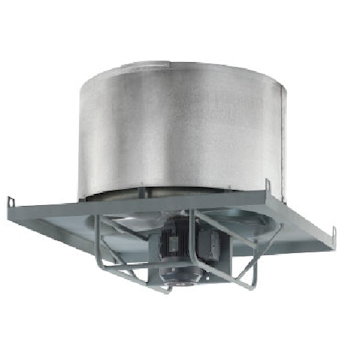

General Characteristics of UED Series Direct Drive Roof Ventilators The UED Series is a ceiling mounted Exhaust fan with an explosion proof motor, finished off with a protective coating. Explosion proof motors are Class 1, Div. 1, Group D & Class 2, Div. 1, Groups F & G. Used for indoor and outdoor extraction. For industrial and commercial use. Includes Cast aluminum blades on most of the models. Comes with disconnect switch. Has prefabricated curbs. Single Phase motors are field convertible 115V/230V. Three Phase motors are field convertible 230V/460V. Motors set at to the lower voltage unless a request is made at time of order to set to the higher voltage. Wind band is 18 gauge galvanized steel. Rubber shim under dampers for better seal. The size of the roof opening should be 6” larger than fan size. Some of the UED Series models are available with low R.P.M. motors for quieter for quieter operation. Products listed in this section are custom built and subject to 100% cancellation/restocking charges. Product Applications of UED Series Direct Drive Roof Ventilators For use in Industry in general where explosive gases are located. Following these guide lines: Explosion proof motors are Class 1, Div 1, Group D and Class 2, Div 1, Groups F & G. Extracts: Heat, some explosive gasses Warranties and Guaranties of UED Series Direct Drive Roof Ventilators Manufacturer's Limited Warranty: 1 Year in the USA. Note: Products listed in this section are custom built and subject to 100% cancellation/restocking charges    http://www.ventdepot.net/usa/intranet/EI%20External%20Information/Privacy-Policy-VentDepot-2013.pdf    http://www.ventdepot.net/usa/datasheets/UED Series Explosion Proof.pdf

Total Products  28 Product Description Shipping Information Lead Time Warranty VentDepot Item # Manufacturer # Price USD (W x H x D) in cm Weight lb kg Business Days Years 1.- 18"Ø, 1Ph, 115/230V, 1/4Hp, 1140RPM, CFM 2570,2263,1673,854, 66Db’s. 35x35x18 89 x 89 x 46 172 78 0 to 20 1 USUES-001 UED18-1/4 EXP P:$4,198.45 Discount: -35%  SP:$2,728.99 2.- 18"Ø, 1Ph, 115/230V, 1/3Hp, 1725RPM, CFM 3375,3000,2600,1400, 75Db’s. 35x35x18 89 x 89 x 46 177 80 0 to 20 1 USUES-002 UED18-1/3 EXP P:$4,204.38 Discount: -35%  SP:$2,732.85 3.- 18"Ø, 1Ph, 115/230V, 1/2Hp, 1725RPM, CFM 4133,3938,3724,3132, 76Db’s. 35x35x18 89 x 89 x 46 182 83 0 to 20 1 USUES-003 UED18-1/2 EXP P:$4,308.69 Discount: -35%  SP:$2,800.65 4.- 18"Ø, 1Ph, 115/230V, 1Hp, 1725RPM, CFM 4600,4375,4080,3000, 76Db’s. 35x35x18 89 x 89 x 46 192 87 0 to 20 1 USUES-004 UED18-1 EXP P:$4,747.95 Discount: -35%  SP:$3,086.17 5.- 18"Ø, 3Ph, 230/460V, 1/4Hp, 1140RPM, CFM 2570,2263,1673,854, 66Db’s. 35x35x18 89 x 89 x 46 172 78 0 to 20 1 USUES-005 UED18-1/4-3 EXP P:$4,426.56 Discount: -35%  SP:$2,877.26 6.- 18"Ø, 3Ph, 230/460V, 1/3Hp, 1725RPM, CFM 3375,3000,2600,1400, 75Db’s. 35x35x18 89 x 89 x 46 177 80 0 to 20 1 USUES-006 UED18-1/3-3 EXP P:$4,326.50 Discount: -35%  SP:$2,812.23 7.- 18"Ø, 3Ph, 230/460V, 1/2Hp, 1725RPM, CFM 4133,3938,3724,3132, 76Db’s. 35x35x18 89 x 89 x 46 182 83 0 to 20 1 USUES-007 UED18-1/2-3 EXP P:$4,414.69 Discount: -35%  SP:$2,869.55 8.- 18"Ø, 3Ph, 230/460V, 1Hp, 1725RPM, CFM 4600,4375,4080,3000, 76Db’s. 35x35x18 89 x 89 x 46 192 87 0 to 20 1 USUES-008 UED18-1-3 EXP P:$4,792.05 Discount: -35%  SP:$3,114.83 9.- 24"Ø, 1Ph, 115/230V, 1/4Hp, 1725RPM, CFM 5200,4200,2820, 75Db’s. 41x41x21 104 x 104 x 53 245 111 0 to 20 1 USUES-009 UED24-1/4 EXP P:$4,337.52 Discount: -35%  SP:$2,819.39 10.- 24"Ø, 1Ph, 115/230V, 3/4Hp, 1140RPM, CFM 6900,6450,6265,3300, 76Db’s. 41x41x21 104 x 104 x 53 265 120 0 to 20 1 USUES-010 UED24-3/4 EXP P:$5,491.65 Discount: -35%  SP:$3,569.57 11.- 24"Ø, 1Ph, 115/230V, 1Hp, 1725RPM, CFM 7425,7000,6350,5000, 83Db’s. 41x41x21 104 x 104 x 53 285 129 0 to 20 1 USUES-011 UED24-1 EXP P:$5,030.34 Discount: -35%  SP:$3,269.72 12.- 24"Ø, 3Ph, 230/460V, 1/4Hp, 1725RPM, CFM 5200,4200,2820, 75Db’s. 41x41x21 104 x 104 x 53 245 111 0 to 20 1 USUES-012 UED24-1/4-3 EXP P:$4,564.78 Discount: -35%  SP:$2,967.11 13.- 24"Ø, 3Ph, 230/460V, 3/4Hp, 1140RPM, CFM 6900,6450,6265,3300, 76Db’s. 41x41x21 104 x 104 x 53 265 120 0 to 20 1 USUES-013 UED24-3/4-3 EXP P:$5,447.55 Discount: -35%  SP:$3,540.91 14.- 24"Ø, 3Ph, 230/460V, 1Hp, 1725RPM, CFM 7425,7000,6350,5000, 83Db’s. 41x41x21 104 x 104 x 53 285 129 0 to 20 1 USUES-014 UED24-1-3 EXP P:$5,085.46 Discount: -35%  SP:$3,305.55 15.- 24"Ø, 3Ph, 230/460V, 3Hp, 1725RPM, CFM 10500,9800,9500,8700, 85Db’s. 41x41x21 104 x 104 x 53 300 136 0 to 20 1 USUES-015 UED24-3-3 EXP P:$5,569.66 Discount: -35%  SP:$3,620.28 16.- 30"Ø, 1Ph, 115/230V, 3/4Hp, 1140RPM, CFM 10440,9750,8750,6000, 79Db’s. 47x47x24 119 x 119 x 61 315 143 0 to 20 1 USUES-016 UED30-3/4 EXP P:$5,724.85 Discount: -35%  SP:$3,721.15 17.- 30"Ø, 3Ph, 230/460V, 3/4Hp, 1140RPM, CFM 10440,9750,8750,6000, 79Db’s. 47x47x24 119 x 119 x 61 315 143 0 to 20 1 USUES-017 UED30-3/4-3 EXP P:$5,686.69 Discount: -35%  SP:$3,696.35 18.- 30"Ø, 3Ph, 230/460V, 1.5Hp, 1140RPM, CFM 10410,9686,8834,6420, 81Db’s. 47x47x24 119 x 119 x 61 330 150 0 to 20 1 USUES-018 UED30-1 ½-3 EXP P:$6,014.02 Discount: -35%  SP:$3,909.11 19.- 30"Ø, 3Ph, 230/460V, 2Hp, 1140RPM, CFM 14000,13750,12900,10450, 82Db’s. 47x47x24 119 x 119 x 61 340 154 0 to 20 1 USUES-019 UED30-2-3 EXP P:$6,191.25 Discount: -35%  SP:$4,024.31 20.- 30"Ø, 3Ph, 230/460V, 3Hp, 1725RPM, CFM 16000,15350,14700,12900, 89Db’s. 47x47x24 119 x 119 x 61 340 154 0 to 20 1 USUES-020 UED30-3-3 EXP P:$5,825.76 Discount: -35%  SP:$3,786.74 21.- 36"Ø, 3Ph, 230/460V, 3Hp, 1140RPM, CFM 17620,16500,15200,12300, 84Db’s. 53x53x27 135 x 135 x 69 435 197 0 to 20 1 USUES-021 UED36.2-3 EXP P:$7,190.19 Discount: -35%  SP:$4,673.62 22.- 36"Ø, 3Ph, 230/460V, 5Hp, 1140RPM, CFM 20500,19550,18500,15850, 85Db’s. 53x53x27 135 x 135 x 69 460 209 0 to 20 1 USUES-022 UED36-3-3 EXP P:$8,079.74 Discount: -35%  SP:$5,251.83 23.- 36"Ø, 3Ph, 230/460V, 2Hp, 1140RPM, CFM 22600,21700,20550,19000, 87Db’s. 53x53x27 135 x 135 x 69 470 213 0 to 20 1 USUES-023 UED36-5-3 EXP P:$8,700.48 Discount: -35%  SP:$5,655.31 24.- 42"Ø, 3Ph, 230/460V, 2Hp, 1140RPM, CFM 17964,17277,15326,12351, 88Db’s. 59x59x29 150 x 150 x 74 505 229 0 to 20 1 USUES-024 UED42-2-3 EXP P:$7,851.63 Discount: -35%  SP:$5,103.56 25.- 42"Ø, 3Ph, 230/460V, 5Hp, 1140RPM, CFM 28970,27960,26840,24200, 89Db’s. 59x59x29 150 x 150 x 74 505 229 0 to 20 1 USUES-025 UED42-5-3 EXP P:$9,328.85 Discount: -35%  SP:$6,063.75 26.- 48"Ø, 3Ph, 230/460V, 3Hp, 1140RPM, CFM 28600,26500,24400,20000, 92Db’s. 65x65x32 165 x 165 x 81 555 252 0 to 20 1 USUES-026 UED48-3-3 EXP P:$9,372.10 Discount: -35%  SP:$6,091.87 27.- 48"Ø, 3Ph, 230/460V, 7.5Hp, 1140RPM, CFM 37000,35100,32800,28000, 94Db’s. 65x65x32 165 x 165 x 81 745 338 0 to 20 1 USUES-027 UED48-7 ½-3 EXP P:$12,048.38 Discount: -35%  SP:$7,831.45 28.- 48"Ø, 3Ph, 230/460V, 10Hp, 1140RPM, CFM 41000,39200,38300,35400, 95Db’s. 65x65x32 165 x 165 x 81 880 399 0 to 20 1 USUES-028 UED48-10-3 EXP P:$12,703.89 Discount: -35%  SP:$8,257.53 P: Price SP: Sale Price
