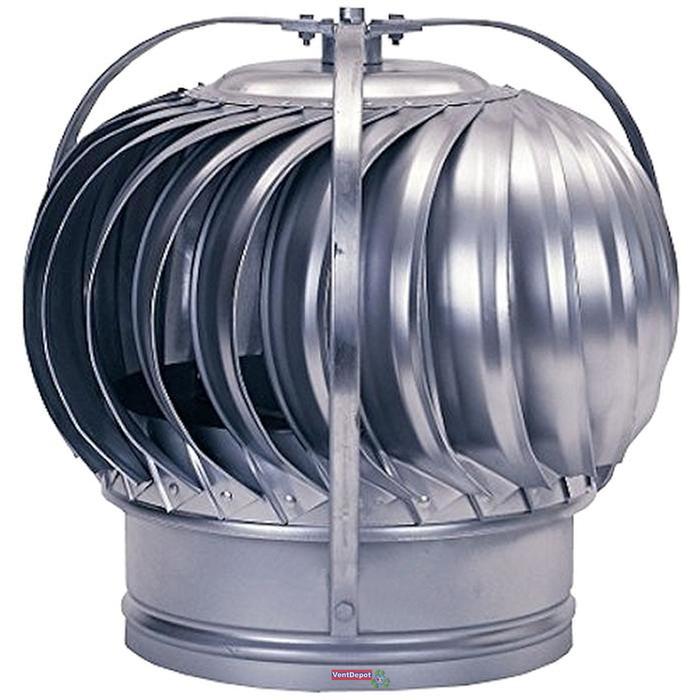

Aluminum Wind Turbine, EmpiAlum

Spec Sheet (.pdf) Spec Sheet (.pdf)
Video (.mp4) Video (.mp4)

General Characteristics: Aluminum Wind Turbine, EmpiAlum

The VentDepot EmpiAlum is a dependable aluminum rotary turbine which works automatically, continuously and silently without operating or maintenance costs.
Outside braced for strength, safety and perfect alignment.
Ventilators up to and including 14” are aluminum braced. Larger sizes are steel braced for additional strength.
Operation is simple and sure.
When the slightest breeze touches the aerodynamic blade construction it causes the turbine to rotate. The centrifugal force caused by the revolving turbine creates a partial vacuum within the turbine. This vacuum is then replaced by a strong upward draft of air. A powerful exhaust is thus achieved.
Built with Grease Trap Bearings
The lower thrust bearing is a hardened steel ball riding in a hardened steel concave seat (in sizes up to 8”) for extreme sensitivity and wear ability.
Upper bearings on all ventilators are bronze oil less.
The rigid construction of these storm proof ventilators assures years of efficient service.
No adjusting or servicing is required.

Product Applications: Aluminum Wind Turbine, EmpiAlum

Removes heat, vapor, gasses, odors, smoke, solvents, and humidity
Used for: ventilation in small and large areas, exhaust pipes, bathrooms, warehouses, factories, commercial buildings, and all large projects of ventilation. The turbine can operate up to temperatures of 150°F.

Warranty: Aluminum Wind Turbine, EmpiAlum

Manufacturer’s Limited Warranty: 2 Years. Warranty is void by Tornados, Chemical Destruction, or if placed on Chimneys. Or uses other than Ventilation.
Total Products  13
Product Description Shipping Information Lead Time Warranty VentDepot Item #
Manufacturer #

Price USD
(W x H x D)
in
cm
Weight
lb
kg

Business
Days

Years
1.- 4"Ø, 82CFM, 139m3/hr, Aluminum 12x12x12
30 x 30 x 30
4
2
7 3 USEMP-001
P:$83.66
Discount:-32%  SP:$56.89
2.- 5"Ø, 133CFM, 226m3/hr, Aluminum 12x13x12
30 x 33 x 30
5
2
7 3 USEMP-002
TV05A
P:$83.66
Discount:-32%  SP:$56.89
3.- 6"Ø, 195CFM, 331m3/hr, Aluminum 13x15x13
33 x 38 x 33
5
2
7 3 USEMP-003
TV06A
P:$83.66
Discount:-32%  SP:$56.89
4.- 7"Ø, 256CFM, 435m3/hr, Aluminum 15x17x15
38 x 43 x 38
6
3
7 3 USEMP-004
TV07A
P:$95.36
Discount:-32%  SP:$64.84
5.- 8"Ø, 338CFM, 574m3/hr, Aluminum 17x19x17
43 x 48 x 43
6
3
7 3 USEMP-005
TV08A
P:$95.36
Discount:-32%  SP:$64.84
6.- 9"Ø, 431CFM, 732m3/hr, Aluminum 19x20x19
48 x 51 x 48
8
4
7 3 USEMP-006
TV09A
P:$108.80
Discount:-32%  SP:$73.98
7.- 10"Ø, 631CFM, 1072m3/hr, Aluminum 20x22x20
51 x 56 x 51
8
4
7 3 USEMP-007
TV10A
P:$108.80
Discount:-32%  SP:$73.98
8.- 12"Ø, 883CFM, 1501m3/hr, Aluminum 24x26x24
61 x 66 x 61
10
5
7 3 USEMP-008
TV12A
P:$118.50
Discount:-32%  SP:$80.58
9.- 14"Ø, 1129CFM, 1129m3/hr, Aluminum 28x31x28
71 x 79 x 71
15
7
7 3 USEMP-009
TV14A
P:$181.28
Discount:-32%  SP:$123.27
10.- 16"Ø, 1304CFM, 2216m3/hr, Aluminum 33x35x33
84 x 89 x 84
23
10
7 3 USEMP-011
TV16A
P:$315.87
Discount:-32%  SP:$214.79
11.- 18"Ø, 1623CFM, 2759m3/hr, Aluminum 36x38x36
91 x 97 x 91
29
13
7 3 USEMP-012
TV18A
P:$325.33
Discount:-32%  SP:$221.22
12.- 20"Ø, 1951CFM, 3316m3/hr, Aluminum 40x42x40
102 x 107 x 102
34
15
7 3 USEMP-013
TV20A
P:$422.94
Discount:-32%  SP:$287.60
13.- 24"Ø, 2824CFM, 4800m3/hr, Aluminum 48x50x48
122 x 127 x 122
45
20
7 3 USEMP-014
TV24A
P:$585.60
Discount:-32%  SP:$398.21
P: Price
SP: Sale Price
