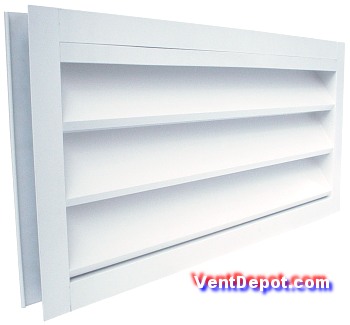

Equipos y Productos: TurboLouvers: ComboLouv 3".
Características Generales
Nuestro TurboLouver ComboLouv 3" VentDepot, ha sido fabricado con perfil extruido de aluminio.
Cuenta con aletas fijas y marco perimetral de 3" de ancho, altura en múltiplos de 3" con anchos variables.
Acabado con pintura electrostática horneada blanco dover.
Incluyendo tela mosquitera por el lado exterior.
Estos equipos ahorran energía eléctrica.
Aplicaciones
Sistema de ingestión estático, ideal como complemento a cualquier sistema de extracción de aire.
Para uso en: Industria.
Garantía
1 (Un) año de Garantía certificado por escrito, sujeto a las claúsulas.

Características Técnicas Específicas

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-001

305x305 12x12 --- --- --- --- 76 3 0.86 31x31x8
CL3-002 --- --- --- --- 305x381 12x15 76 3 1.08 31x39x8
CL3-003 --- --- --- --- 305x457 12x18 76 3 1.30 31x46x8
CL3-004 --- --- --- --- 305x533 12x21 76 3 1.51 31x54x8
CL3-005 --- --- --- --- 305x609 12x24 76 3 1.73 31x61x8
CL3-006 --- --- --- --- 305x685 12x27 76 3 1.94 31x69x8
CL3-007 --- --- --- --- 305x762 12x30 76 3 2.16 31x77x8
CL3-008 --- --- --- --- 305x838 12x33 76 3 2.38 31x84x8
CL3-009 --- --- --- --- 305x914 12x36 76 3 2.59 31x92x8
CL3-010 --- --- --- --- 305x990 12x39 76 3 2.81 31x100x8
CL3-011 --- --- --- --- 305x1066 12x42 76 3 3.02 31x107x8
CL3-012 --- --- --- --- 305x1143 12x45 76 3 3.24 31x115x8
CL3-013 --- --- --- --- 305x1219 12x48 76 3 3.46 31x122x8
CL3-014 --- --- --- --- 305x1295 12x51 76 3 3.67 31x130x8
CL3-015 --- --- --- --- 305x1371 12x54 76 3 3.89 31x128x8
CL3-016 --- --- 381x305 15x12 --- --- 76 3 1.08 39x31x8
CL3-017 381x381 15x15 --- --- --- --- 76 3 1.35 39x39x8
CL3-018 --- --- --- --- 381x457 15x18 76 3 1.62 39x46x8
CL3-019 --- --- --- --- 381x533 15x24 76 3 1.89 39x54x8
CL3-020 --- --- --- --- 381x609 15x24 76 3 2.16 39x61x8
CL3-021 --- --- --- --- 381x685 15x27 76 3 2.43 39x69x8
CL3-022 --- --- --- --- 381x762 15x30 76 3 2.70 39x77x8
CL3-023 --- --- --- --- 381x838 15x33 76 3 2.97 39x84x8
CL3-024 --- --- --- --- 381x914 15x36 76 3 3.24 39x92x8
CL3-025 --- --- --- --- 381x990 15x39 76 3 3.51 39x100x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-026 --- --- --- --- 381x1066 15x42 76 3 3.78 39x107x8
CL3-027 --- --- --- --- 381x1143 15x45 76 3 4.05 39x115x8
CL3-028 --- --- --- --- 381x1219 15x48 76 3 4.32 39x122x8
CL3-029 --- --- --- --- 381x1295 15x51 76 3 4.59 39x130x8
CL3-030 --- --- --- --- 381x1371 15x54 76 3 4.86 39x138x8
CL3-031 --- --- 457x305 18x12 --- --- 76 3 1.30 46x31x8
CL3-032 --- --- 457x381 18x15 --- --- 76 3 1.62 46x39x8
CL3-033 457x457 18x18 --- --- --- --- 76 3 1.94 46x46x8
CL3-034 --- --- --- --- 457x533 18x21 76 3 2.27 46x54x8
CL3-035 --- --- --- --- 457x609 18x24 76 3 2.59 46x61x8
CL3-036 --- --- --- --- 457x685 18x27 76 3 2.92 46x69x8
CL3-037 --- --- --- --- 457x762 18x30 76 3 3.24 46x77x8
CL3-038 --- --- --- --- 457x838 18x33 76 3 3.56 46x84x8
CL3-039 --- --- --- --- 457x914 18x36 76 3 3.89 46x92x8
CL3-040 --- --- --- --- 457x990 18x39 76 3 4.21 46x100x8
CL3-041 --- --- --- --- 457x1066 18x42 76 3 4.54 46x107x8
CL3-042 --- --- --- --- 457x1143 18x45 76 3 4.89 46x115x8
CL3-043 --- --- --- --- 457x1219 18x48 76 3 5.18 46x122x8
CL3-044 --- --- --- --- 457x1295 18x51 76 3 5.51 46x130x8
CL3-045 --- --- --- --- 457x1371 18x54 76 3 5.83 46x138x8
CL3-046 --- --- 533x305 21x12 --- --- 76 3 1.51 54x31x8
CL3-047 --- --- 533x381 21x15 --- --- 76 3 1.89 54x39x8
CL3-048 --- --- 533x457 21x18 --- --- 76 3 2.27 54x46x8
CL3-049 533x533 21x21 --- --- --- --- 76 3 2.65 54x54x8
CL3-050 --- --- --- --- 533x509 21x24 76 3 3.02 54x61x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-051

--- --- --- --- 533x685 21x27 76 3 3.40 54x69x8
CL3-052 --- --- --- --- 533x762 21x30 76 3 3.78 54x77x8
CL3-053 --- --- --- --- 533x838 21x33 76 3 4.16 54x84x8
CL3-054 --- --- --- --- 533x914 21x36 76 3 4.54 54x92x8
CL3-055 --- --- --- --- 833x990 21x39 76 3 4.91 54x100x8
CL3-056 --- --- --- --- 533x1066 21x42 76 3 5.29 54x107x8
CL3-057 --- --- --- --- 533x1143 21x42 76 3 5.67 54x115x8
CL3-058 --- --- --- --- 533x1219 21x48 76 3 6.05 54x122x8
CL3-059 --- --- --- --- 533x1295 21x51 76 3 6.43 54x130x8
CL3-060 --- --- --- --- 533x1371 21x54 76 3 6.80 54x138x8
CL3-061 --- --- 609x305 24x12 --- --- 76 3 1.73 61x31x8
CL3-062 --- --- 609x381 24x15 --- --- 76 3 2.16 61x39x8
CL3-063 --- --- 609x457 24x18 --- --- 76 3 2.59 61x46x8
CL3-064 --- --- 609x533 24x21 --- --- 76 3 3.02 61x57x8
CL3-065 609x609 24x24 --- --- --- --- 76 3 3.46 61x62x8
CL3-066 --- --- --- --- 609x685 24x27 76 3 3.89 61x69x8
CL3-067 --- --- --- --- 609x762 24x30 76 3 4.32 61x77x8
CL3-068 --- --- --- --- 609x838 24x33 76 3 4.75 61x84x8
CL3-069 --- --- --- --- 609x914 24x36 76 3 5.18 61x92x8
CL3-070 --- --- --- --- 609x990 24x39 76 3 5.62 61x100x8
CL3-071 --- --- --- --- 609x1066 24x42 76 3 6.05 61x107x8
CL3-072 --- --- --- --- 609x1143 24x45 76 3 6.48 61x115x8
CL3-073 --- --- --- --- 609x1219 24x48 76 3 6.91 61x122x8
CL3-074 --- --- --- --- 609x1295 24x51 76 3 7.34 61x130x8
CL3-075 --- --- --- --- 609x1371 24x54 76 3 7.78 61x138x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-076 --- --- 685x305 27x12 --- --- 76 3 1.94 69x31x8
CL3-077 --- --- 685x381 27x15 --- --- 76 3 2.43 69x39x8
CL3-078 --- --- 685x457 27x18 --- --- 76 3 2.92 69x46x8
CL3-079 --- --- 685x533 27x21 --- --- 76 3 3.40 69x54x8
CL3-080 --- --- 685x609 27x24 --- --- 76 3 3.89 69x61x8
CL3-081 685x685 27x27 --- --- --- --- 76 3 4.37 69x69x8
CL3-082 --- --- --- --- 685x762 27x30 76 3 4.86 69x77x8
CL3-083 --- --- --- --- 685x838 27x33 76 3 5.35 69x84x8
CL3-084 --- --- --- --- 574x814 27x36 76 3 5.83 69x92x8
CL3-085 --- --- --- --- 685x990 27x39 76 3 6.32 69x100x8
CL3-086 --- --- --- --- 685x1066 27x42 76 3 6.80 69x107x8
CL3-087 --- --- --- --- 685x1143 27x45 76 3 7.29 69x115x8
CL3-088 --- --- --- --- 685x1219 27x48 76 3 7.78 69x122x8
CL3-089 --- --- --- --- 685x1295 27x51 76 3 8.26 69x130x8
CL3-090 --- --- --- --- 685x1371 27x54 76 3 8.75 69x138x8
CL3-091 --- --- 762x305 30x12 --- --- 76 3 2.16 77x31x8
CL3-092 --- --- 762x381 30x15 --- --- 76 3 2.70 77x38x8
CL3-093 --- --- 762x457 30x18 --- --- 76 3 3.24 77x46x8
CL3-094 --- --- 762x533 30x21 --- --- 76 3 3.78 77x54x8
CL3-095 --- --- 762x609 30x24 --- --- 76 3 4.32 77x61x8
CL3-096 --- --- 762x685 30x27 --- --- 76 3 4.86 77x69x8
CL3-097 762x762 30x30 --- --- --- --- 76 3 5.40 77x77x8
CL3-098 --- --- --- --- 762x838 30x33 76 3 5.94 77x84x8
CL3-099 --- --- --- --- 762x914 30x36 76 3 6.48 77x92x8
CL3-100 --- --- --- --- 762x990 30x39 76 3 7.02 77x100x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-101

--- --- --- --- 762x1066 30x42 76 3 7.56 77x107x8
CL3-102 --- --- --- --- 762x1143 30x45 76 3 8.10 77x115x8
CL3-103 --- --- --- --- 762x1219 30x48 76 3 8.64 77x122x8
CL3-104 --- --- --- --- 762x1295 30x51 76 3 9.18 77x130x8
CL3-105 --- --- --- --- 762x1371 30x54 76 3 9.72 77x138x8
CL3-106 --- --- 838x305 33x12 --- --- 76 3 2.38 84x31x8
CL3-107 --- --- 838x381 33x15 --- --- 76 3 2.97 84x39x8
CL3-108 --- --- 838x457 33x18 --- --- 76 3 3.56 84x46x8
CL3-109 --- --- 838x533 33x21 --- --- 76 3 4.16 84x54x8
CL3-110 --- --- 838x609 33x24 --- --- 76 3 4.75 84x61x8
CL3-111 --- --- 838x685 33x27 --- --- 76 3 5.35 84x69x8
CL3-112 --- --- 838x762 22x30 --- --- 76 3 5.94 84x77x8
CL3-113 838x838 33x33 --- --- --- --- 76 3 6.53 84x84x8
CL3-114 --- --- --- --- 838x914 33x36 76 3 7.13 84x92x8
CL3-115 --- --- --- --- 838x990 33x39 76 3 7.72 84x100x8
CL3-116 --- --- --- --- 838x1066 33x42 76 3 8.32 84x107x8
CL3-117 --- --- --- --- 838x1143 33x45 76 3 8.91 84x115x8
CL3-118 --- --- --- --- 838x1219 33x48 76 3 9.50 84x122x8
CL3-119 --- --- --- --- 838x1295 33x51 76 3 10.10 84x130x8
CL3-120 --- --- --- --- 838x1371 33x54 76 3 10.69 84x138x8
CL3-121 --- --- 914x305 36x12 --- --- 76 3 2.59 92x31x8
CL3-122 --- --- 914x381 36x15 --- --- 76 3 3.24 92x39x8
CL3-123 --- --- 914x457 36x18 --- --- 76 3 3.89 92x46x8
CL3-124 --- --- 914x533 36x21 --- --- 76 3 4.54 92x54x8
CL3-125 --- --- 914x609 36x24 --- --- 76 3 5.18 92x69x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-126 --- --- 914x685 36x27 --- --- 76 3 5.83 92x68x8
CL3-127 --- --- 914x762 36x30 --- --- 76 3 6.48 92x77x8
CL3-128 --- --- 914x838 36x33 --- --- 76 3 7.13 92x84x8
CL3-129 914x914 36x36 --- --- --- --- 76 3 7.78 92x92x8
CL3-130 --- --- --- --- 914x990 36x39 76 3 8.42 92x100x8
CL3-131 --- --- --- --- 914x1066 36x42 76 3 9.07 92x107x8
CL3-132 --- --- --- --- 914x1143 36x45 76 3 9.72 92x115x8
CL3-133 --- --- --- --- 914x1219 36x48 76 3 10.37 92x122x8
CL3-134 --- --- --- --- 914x1295 36x51 76 3 11.02 92x130x8
CL3-135 --- --- --- --- 914x1371 36x54 76 3 11.33 92x168x8
CL3-136 --- --- 990x305 39x12 --- --- 76 3 2.81 100x31x8
CL3-137 --- --- 990x381 39x15 --- --- 76 3 3.51 100x39x8
CL3-138 --- --- 990x457 39x18 --- --- 76 3 4.21 100x46x8
CL3-139 --- --- 990x533 39x21 --- --- 76 3 4.91 100x54x8
CL3-140 --- --- 990x609 39x24 --- --- 76 3 5.62 100x69x8
CL3-141 --- --- 990x685 39x27 --- --- 76 3 6.32 100x77x8
CL3-142 --- --- 990x762 39x30 --- --- 76 3 7.02 100x77x8
CL3-143 --- --- 990x838 39x33 --- --- 76 3 7.72 100x84x8
CL3-144 --- --- 990x914 39x36 --- --- 76 3 8.42 100x92x8
CL3-145 990x990 39x39 --- --- --- --- 76 3 9.13 100x100x8
CL3-146 --- --- --- --- 990x1066 39x42 76 3 9.83 100x107x8
CL3-147 --- --- --- --- 990x1143 39x45 76 3 10.53 100x115x8
CL3-148 --- --- --- --- 990x1219 39x48 76 3 11.23 100x122x8
CL3-149 --- --- --- --- 990x1295 39x51 76 3 11.93 100x130x8
CL3-150 --- --- --- --- 990x1371 39x54 76 3 12.64 100x138x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-151

--- --- 1066x305 42x12 --- --- 76 3 3.02 107x31x8
CL3-152 --- --- 1066x381 42x15 --- --- 76 3 3.78 107x39x8
CL3-153 --- --- 1066x457 42x18 --- --- 76 3 4.54 107x46x8
CL3-154 --- --- 1066x533 42x21 --- --- 76 3 5.29 107x54x8
CL3-155 --- --- 1066x609 42x24 --- --- 76 3 6.05 107x61x8
CL3-156 --- --- 1066x685 42x27 --- --- 76 3 6.80 107x69x8
CL3-157 --- --- 1066x762 42x30 --- --- 76 3 7.56 107x77x8
CL3-158 --- --- 1066x838 42x33 --- --- 76 3 8.32 107x84x8
CL3-159 --- --- 1066x914 42x36 --- --- 76 3 9.07 107x92x8
CL3-160 --- --- 1066x990 42x39 --- --- 76 3 9.83 107x100x8
CL3-161 1066x1066 42x42 --- --- --- --- 76 3 10.58 107x107x8
CL3-162 --- --- --- --- 1066x1143 42x45 76 3 11.34 107x115x8
CL3-163 --- --- --- --- 1066x1219 42x48 76 3 12.10 107x122x8
CL3-164 --- --- --- --- 1066x1295 42x51 76 3 12.85 107x130x8
CL3-165 --- --- --- --- 1066x1371 42x54 76 3 13.61 107x138x8
CL3-166 --- --- 1143x305 45x12 --- --- 76 3 3.24 115x31x8
CL3-167 --- --- 1143x381 45x15 --- --- 76 3 4.05 115x39x8
CL3-168 --- --- 1143x457 45x18 --- --- 76 3 4.86 115x46x8
CL3-169 --- --- 1143x533 45x21 --- --- 76 3 5.67 115x54x8
CL3-170 --- --- 1143x609 45x24 --- --- 76 3 6.48 115x69x8
CL3-171 --- --- 1143x685 45x27 --- --- 76 3 7.29 115x69x8
CL3-172 --- --- 1143x762 45x30 --- --- 76 3 8.10 115x77x8
CL3-173 --- --- 1143x838 45x33 --- --- 76 3 8.91 115x84x8
CL3-174 --- --- 1143x914 45x36 --- --- 76 3 9.72 115x92x8
CL3-175 --- --- 1143x990 45x39 --- --- 76 3 10.53 115x100x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-176 --- --- 1143x1066 45x42 --- --- 76 3 11.34 115x107x8
CL3-177 1143x1143 45x45 --- --- --- --- 76 3 12.15 115x115x8
CL3-178 --- --- --- --- 1143x1219 45x48 76 3 12.96 115x122x8
CL3-179 --- --- --- --- 1143x1295 45x51 76 3 13.77 115x130x8
CL3-180 --- --- --- --- 1143x1371 45x54 76 3 14.58 115x138x8
CL3-181 --- --- 1219x305 48x12 --- --- 76 3 3.46 122x31x8
CL3-182 --- --- 1219x381 48x15 --- --- 76 3 4.32 122x39x8
CL3-183 --- --- 1219x457 48x18 --- --- 76 3 5.18 122x46x8
CL3-184 --- --- 1219x533 48x21 --- --- 76 3 6.05 122x54x8
CL3-185 --- --- 1219x609 48x24 --- --- 76 3 6.91 122x61x8
CL3-186 --- --- 1219x685 48x27 --- --- 76 3 7.78 122x69x8
CL3-187 --- --- 1219x762 48x30 --- --- 76 3 8.64 122x77x8
CL3-188 --- --- 1219x838 48x33 --- --- 76 3 9.50 122x84x8
CL3-189 --- --- 1219x914 48x36 --- --- 76 3 10.37 122x92x8
CL3-190 --- --- 1219x990 48x39 --- --- 76 3 11.23 122x100x8
CL3-191 --- --- 1219x1066 48x42 --- --- 76 3 12.10 122x107x8
CL3-192 --- --- 1219x1143 48x45 --- --- 76 3 13.96 122x115x8
CL3-193 1219 48x48 --- --- --- --- 76 3 13.82 122x122x8
CL3-194 --- --- --- --- 1219x1295 48x51 76 3 14.69 122x130x8
CL3-195 --- --- --- --- 1219x1371 48x54 76 3 15.55 122x138x8
CL3-196 --- --- 1295x305 51x12 --- --- 76 3 3.67 130x31x8
CL3-197 --- --- 1295x381 51x15 --- --- 76 3 4.59 130x39x8
CL3-198 --- --- 1295x457 51x18 --- --- 76 3 5.51 130x46x8
CL3-199 --- --- 1295x533 51x21 --- --- 76 3 6.43 130x54x8
CL3-200 --- --- 1295x609 51x24 --- --- 76 3 7.34 130x61x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-201

--- --- 1295x685 51x27 --- --- 76 3 8.26 130x69x8
CL3-202 --- --- 1295x762 51x30 --- --- 76 3 9.18 130x77x8
CL3-203 --- --- 1295x838 51x33 --- --- 76 3 10.10 130x84x8
CL3-204 --- --- 1295x914 51x36 --- --- 76 3 11.02 130x92x8
CL3-205 --- --- 1295x990 51x39 --- --- 76 3 11.93 130x100x8
CL3-206 --- --- 1295x1066 51x42 --- --- 76 3 12.85 130x107x8
CL3-207 --- --- 1295x1143 51x45 --- --- 76 3 13.77 130x115x8
CL3-208 --- --- 1295x1219 51x48 --- --- 76 3 14.69 130x122x8
CL3-209 1295x1295 51x51 --- --- --- --- 76 3 15.61 130x130x8
CL3-210 --- --- --- --- 1295x1371 51x54 76 3 16.52 130x138x8
CL3-211 --- --- 1371x305 54x12 --- --- 76 3 3.89 138x31x8
CL3-212 --- --- 1371x381 54x15 --- --- 76 3 4.86 168x39x8
CL3-213 --- --- 1371x457 54x18 --- --- 76 3 5.83 138x46x8
CL3-214 --- --- 1371x533 54x21 --- --- 76 3 6.80 138x54x8
CL3-215 --- --- 1371x609 54x24 --- --- 76 3 7.78 138x61x8
CL3-216 --- --- 1371x685 54x27 --- --- 76 3 8.75 138x69x8
CL3-217 --- --- 1371x762 54x30 --- --- 76 3 9.72 138x77x8
CL3-218 --- --- 1371x838 54x33 --- --- 76 3 10.69 138x84x8
CL3-219 --- --- 1371x914 54x36 --- --- 76 3 11.69 138x92x8
CL3-220 --- --- 1371x990 54x39 --- --- 76 3 12.64 138x100x8
CL3-221 --- --- 1371x1066 54x42 --- --- 76 3 13.61 138x107x8
CL3-222 --- --- 1371x1143 54x45 --- --- 76 3 14.58 138x115x8
CL3-223 --- --- 1371x1219 54x48 --- --- 76 3 15.55 138x122x8
CL3-224 --- --- 1371x1295 54x51 --- --- 76 3 16.52 138x130x8
CL3-225 1371x1371 54x54 --- --- --- --- 76 3 17.50 138x138x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-226 --- --- 1447x305 57x12 --- --- 76 3 4.10 145x31x8
CL3-227 --- --- 1447x381 57x15 --- --- 76 3 5.13 145x39x8
CL3-228 --- --- 1447x457 57x18 --- --- 76 3 6.16 145x46x8
CL3-229 --- --- 1447x533 57x21 --- --- 76 3 7.18 145x54x8
CL3-230 --- --- 1447x609 57x24 --- --- 76 3 8.21 145x61x8
CL3-231 --- --- 1447x685 57x27 --- --- 76 3 9.23 145x69x8
CL3-232 --- --- 1447x762 57x30 --- --- 76 3 10.26 145x77x8
CL3-233 --- --- 1447x838 57x33 --- --- 76 3 11.29 145x84x8
CL3-234 --- --- 1447x914 57x36 --- --- 76 3 12.31 145x92x8
CL3-235 --- --- 1447x990 57x39 --- --- 76 3 13.34 145x100x8
CL3-236 --- --- 1447x1066 57x42 --- --- 76 3 14.36 145x107x8
CL3-237 --- --- 1447x1143 57x45 --- --- 76 3 15.39 145x115x8
CL3-238 --- --- 1447x1219 57x48 --- --- 76 3 16.42 145x122x8
CL3-239 --- --- 1447x1295 57x51 --- --- 76 3 17.44 145x131x8
CL3-240 --- --- 1447x1371 57x54 --- --- 76 3 18.47 145x138x8
CL3-241 --- --- 1524x305 60x12 --- --- 76 3 4.32 153x31x8
CL3-242 --- --- 1524x381 60x15 --- --- 76 3 5.40 153x39x8
CL3-243 --- --- 1524x457 60x18 --- --- 76 3 6.48 153x46x8
CL3-244 --- --- 1524x533 60x21 --- --- 76 3 7.56 153x54x8
CL3-245 --- --- 1524x609 60x24 --- --- 76 3 8.64 153x61x8
CL3-246 --- --- 1524x685 60x27 --- --- 76 3 9.72 153x69x8
CL3-247 --- --- 1524x762 60x30 --- --- 76 3 10.80 153x77x8
CL3-248 --- --- 1524x838 60x33 --- --- 76 3 11.88 153x84x8
CL3-249 --- --- 1524x914 60x36 --- --- 76 3 12.96 153x92x8
CL3-250 --- --- 1524x990 60x39 --- --- 76 3 14.04 153x100x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-251

--- --- 1524x1066 60x42 --- --- 76 3 15.12 153x107x8
CL3-252 --- --- 1524x1143 60x45 --- --- 76 3 16.20 153x115x8
CL3-253 --- --- 1524x1219 60x48 --- --- 76 3 17.28 153x122x8
CL3-254 --- --- 1524x1295 60x51 --- --- 76 3 18.36 153x130x8
CL3-255 --- --- 1524x1371 60x54 --- --- 76 3 19.44 153x138x8
CL3-256 --- --- 1600x305 63x12 --- --- 76 3 4.54 161x31x8
CL3-257 --- --- 1600x381 63x15 --- --- 76 3 5.67 161x39x8
CL3-258 --- --- 1600x457 63x18 --- --- 76 3 6.80 161x46x8
CL3-259 --- --- 1600x533 63x21 --- --- 76 3 7.94 161x46x8
CL3-260 --- --- 1600x609 63x24 --- --- 76 3 9.07 161x69x8
CL3-261 --- --- 1600x685 63x27 --- --- 76 3 10.21 161x69x8
CL3-262 --- --- 1600x762 63x30 --- --- 76 3 11.34 161x77x8
CL3-263 --- --- 1600x838 63x33 --- --- 76 3 12.47 161x84x8
CL3-264 --- --- 1600x914 63x36 --- --- 76 3 13.61 161x92x8
CL3-265 --- --- 1600x990 63x39 --- --- 76 3 14.74 161x100x8
CL3-266 --- --- 1600x1066 63x42 --- --- 76 3 15.88 161x107x8
CL3-267 --- --- 1600x1143 63x45 --- --- 76 3 17.01 161x115x8
CL3-268 --- --- 1600x1219 63x48 --- --- 76 3 18.14 161x122x8
CL3-269 --- --- 1600x1295 63x51 --- --- 76 3 19.28 161x130x8
CL3-270 --- --- 1600x1371 63x54 --- --- 76 3 20.41 161x138x8
CL3-271 --- --- 1675x305 66x12 --- --- 76 3 4.75 168x31x8
CL3-272 --- --- 1676x381 66x15 --- --- 76 3 5.94 168x39x8
CL3-273 --- --- 1676x457 66x18 --- --- 76 3 7.13 168x46x8
CL3-274 --- --- 1676x533 66x21 --- --- 76 3 8.32 168x54x8
CL3-275 --- --- 1676x609 66x24 --- --- 76 3 9.50 168x61x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-276 --- --- 1676x685 66x27 --- --- 76 3 10.69 168x69x8
CL3-277 --- --- 1676x762 66x30 --- --- 76 3 11.88 168x77x8
CL3-278 --- --- 1676x838 66x33 --- --- 76 3 13.07 168x84x8
CL3-279 --- --- 1676x914 66x36 --- --- 76 3 14.26 168x92x8
CL3-280 --- --- 1676x990 66x39 --- --- 76 3 15.44 168x100x8
CL3-281 --- --- 1676x1066 66x42 --- --- 76 3 16.63 168x107x8
CL3-282 --- --- 1676x1143 66x45 --- --- 76 3 17.82 168x115x8
CL3-283 --- --- 1676x1219 66x48 --- --- 76 3 19.01 168x122x8
CL3-284 --- --- 1676x1295 66x51 --- --- 76 3 20.20 168x130x8
CL3-285 --- --- 1676x1371 66x54 --- --- 76 3 21.38 168x138x8
CL3-286 --- --- 1752x305 69x12 --- --- 76 3 4.97 176x31x8
CL3-287 --- --- 1752x381 69x15 --- --- 76 3 6.21 176x39x8
CL3-288 --- --- 1752x457 69x18 --- --- 76 3 7.45 176x46x8
CL3-289 --- --- 1752x533 69x21 --- --- 76 3 8.69 176x54x8
CL3-290 --- --- 1752x609 69x24 --- --- 76 3 9.94 176x61x8
CL3-291 --- --- 1752x685 69x27 --- --- 76 3 11.18 176x69x8
CL3-292 --- --- 1752x762 69x30 --- --- 76 3 12.42 176x77x8
CL3-293 --- --- 1752x838 69x33 --- --- 76 3 13.66 176x84x8
CL3-294 --- --- 1752x914 69x36 --- --- 76 3 14.90 176x92x8
CL3-295 --- --- 1752x990 69x39 --- --- 76 3 16.15 176x100x8
CL3-296 --- --- 1752x1066 69x42 --- --- 76 3 17.39 176x107x8
CL3-297 --- --- 1752x1143 69x45 --- --- 76 3 18.63 176x115x8
CL3-298 --- --- 1752x1219 69x48 --- --- 76 3 19.87 176x122x8
CL3-299 --- --- 1752x1295 69x51 --- --- 76 3 21.11 176x130x8
CL3-300 --- --- 1752x1371 69x54 --- --- 76 3 22.36 176x138x8

Clave

Fondo

Peso y Dimensiones con Empaque de Plástico

X x Y

X x Y X x Y

X x Y

X x Y X x Y Z Z kg cm

mm

pulg

mm

pulg

mm

pulg

mm

pulg

CL3-301

--- --- 1828x305 72x12 --- --- 76 3 5.18 183x31x8
CL3-302 --- --- 1828x381 72x15 --- --- 76 3 6.48 183x39x8
CL3-303 --- --- 1828x457 72x18 --- --- 76 3 7.78 183x46x8
CL3-304 --- --- 1828x533 72x21 --- --- 76 3 9.07 183x54x8
CL3-305 --- --- 1828x609 72x24 --- --- 76 3 10.37 183x61x8
CL3-306 --- --- 1828x685 72x27 --- --- 76 3 11.66 183x69x8
CL3-307 --- --- 1828x762 73x30 --- --- 76 3 12.96 183x77x8
CL3-308 --- --- 1828x838 72x33 --- --- 76 3 14.26 183x84x8
CL3-309 --- --- 1828x914 72x36 --- --- 76 3 15.55 183x92x8
CL3-310 --- --- 1828x990 72x39 --- --- 76 3 16.85 183x100x8
CL3-311 --- --- 1828x1066 72x42 --- --- 76 3 18.14 183x107x8
CL3-312 --- --- 1828x1143 72x45 --- --- 76 3 19.44 183x115x8
CL3-313 --- --- 1828x1219 72x48 --- --- 76 3 20.74 183x122x8
CL3-314 --- --- 1828x1295 72x51 --- --- 76 3 22.03 183x130x8
CL3-315 --- --- 1828x1371 72x54 --- --- 76 3 23.33 183x138x8

| Orden de Compra | Solicitar 0recios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

Dimensiones (mm)

Montaje

Perforar un agujero en la pared con las dimensiones  X y Y, y fijar.

Para mayor flujo de aire fresco, es posible modular los ComboLouv 3" con solera, ver dibujo:
Esta es una de las grandes cualidades que tienen nuestros ComboLouv 3". Se pueden modular en diversas formas originales y funcionales.

Es importante ubicar estos Louvers a una altura mínima del piso, como se indica en el dibujo.

Retirar la malla mosquitera y fijar por la parte interior de ComboLouv directamente a la pared o estructura.

Para un correcto montaje se deberá fijar con tornillos de 3" de longitud o más largos.
VentDepot Team, monta, instala o da mantenimiento a cualquiera de nuestros equipos, de forma rápida, segura y conforme a las normas industriales.
Suministro y servicio a toda la República Mexicana.

Cualidades

Rejilla desmontable para un fácil mantenimiento y fácil instalación del Louver.
Diseño rígido con 3 pulgadas de grosor ofreciendo una máxima robustes, fabricado 100% aluminio.

| Inicio   RegistrateProductos | Servicios | Materiales |Especiales | Precios   |  AutoCadOrden de Compra | Obras | Ofertas | Seminarios | La Empresa | Chat ICQo MessengerCorreo | Información Técnica | Sitios de Interés | Otros | Lo Nuevo | Intranet | Imprimir |

CiberStats. Pincha para estadisticas.Copyright © 1996-2001, Todo en Ventilación S.A. de C.V. tiene todos los derechos reservados.
VentDepot México: (52) (55) 5822-1516. TelFax: (52) (55) 5825-0752. mexico@ventdepot.com
VentDepot Perú: (051) 445-5693. TelFax: (051) 436-7042. peru@ventdepot.com
VentDepot USA: 4336 Gessener, Houston, Texas, USA. 77041, P.O. Box. usa@ventdepot.com
