Equipos y Productos:
TurboDifusores: RetroLine.
|
Características Generales |
 |

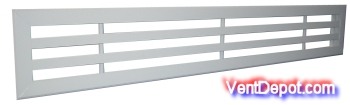

 Este
TurboDifusor RetroLine VentDepot, esta diseñado para succionar el aire de
forma lineal. Una
distribución del aire uniforme. Su
alta efectividad permite usarse para succionar aire en
lugares estrechos. La
dirección y el volumen de aire pueden ajustarse gradualmente al mover las
aletas. Fabricado
de 1 a 8 ranuras en distintas anchuras. Disponible
en ranuras estándar de 1/2", 3/4" y 1". Acabado
en pintura electrostática horneada color blanco ostión.
|
|
|
|
|
|
|
|
Garantía |
|
|
1
(Un) año de Garantía, certificado por escrito, sujeto a las claúsulas.
|
|
Características Técnicas Especiíficas |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-001 |
304 | 12 | 1 | 44 | 1.75 | 1 | 13 | 1/2 | 0.2 | 31x5x2 |
|
RLN-002 |
304 | 12 | 1 | 51 | 2.00 | 1 | 19 | 3/4 | 0.2 | 31x6x2 |
|
RLN-003 |
304 | 12 | 1 | 57 | 2.25 | 1 | 25 | 1 | 0.3 | 31x6x3 |
|
RLN-004 |
304 | 12 | 1 | 76 | 3.00 | 2 | 13 | 1/2 | 0.4 | 31x5x2 |
|
RLN-005 |
304 | 12 | 1 | 89 | 3.50 | 2 | 19 | 3/4 | 0.4 | 31x6x2 |
|
RLN-006 |
304 | 12 | 1 | 102 | 4.00 | 2 | 25 | 1 | 0.5 | 31x6x3 |
|
RLN-007 |
304 | 12 | 1 | 108 | 4.25 | 3 | 13 | 1/2 | 0.5 | 31x5x2 |
|
RLN-008 |
304 | 12 | 1 | 127 | 5.00 | 3 | 19 | 3/4 | 0.6 | 31x6x2 |
|
RLN-009 |
304 | 12 | 1 | 146 | 5.75 | 3 | 25 | 1 | 0.7 | 31x6x3 |
|
RLN-010 |
304 | 12 | 1 | 140 | 5.50 | 4 | 13 | 1/2 | 0.7 | 31x5x2 |
|
RLN-011 |
304 | 12 | 1 | 165 | 6.50 | 4 | 19 | 3/4 | 0.8 | 31x6x2 |
|
RLN-012 |
304 | 12 | 1 | 190 | 7.50 | 4 | 25 | 1 | 0.9 | 31x6x3 |
|
RLN-013 |
304 | 12 | 1 | 171 | 6.75 | 5 | 13 | 1/2 | 0.8 | 31x5x2 |
|
RLN-014 |
304 | 12 | 1 | 203 | 8.00 | 5 | 19 | 3/4 | 1.0 | 31x6x2 |
|
RLN-015 |
304 | 12 | 1 | 235 | 9.25 | 5 | 25 | 1 | 1.1 | 31x6x3 |
|
RLN-016 |
304 | 12 | 1 | 203 | 8.00 | 6 | 13 | 1/2 | 1.0 | 31x5x2 |
|
RLN-017 |
304 | 12 | 1 | 241 | 9.50 | 6 | 19 | 3/4 | 1.1 | 31x6x2 |
|
RLN-018 |
304 | 12 | 1 | 279 | 11.00 | 6 | 25 | 1 | 1.3 | 31x6x3 |
|
RLN-019 |
304 | 12 | 1 | 235 | 9.25 | 7 | 13 | 1/2 | 1.1 | 31x5x2 |
|
RLN-020 |
304 | 12 | 1 | 279 | 11.00 | 7 | 19 | 3/4 | 1.3 | 31x6x2 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-021 |
304 | 12 | 1 | 324 | 12.75 | 7 | 25 | 1 | 1.5 | 31x6x3 |
|
RLN-022 |
304 | 12 | 1 | 267 | 10.50 | 8 | 13 | 1/2 | 1.3 | 31x5x2 |
|
RLN-023 |
304 | 12 | 1 | 317 | 12.50 | 8 | 19 | 3/4 | 1.5 | 31x6x2 |
|
RLN-024 |
304 | 12 | 1 | 368 | 14.50 | 8 | 25 | 1 | 1.7 | 31x6x3 |
|
RLN-025 |
609 | 24 | 2 | 44 | 1.75 | 1 | 13 | 1/2 | 0.4 | 61x8x2 |
|
RLN-026 |
609 | 24 | 2 | 51 | 2.00 | 1 | 19 | 3/4 | 0.5 | 61x9x2 |
|
RLN-027 |
609 | 24 | 2 | 57 | 2.25 | 1 | 25 | 1 | 0.5 | 61x11x3 |
|
RLN-028 |
609 | 24 | 2 | 76 | 3.00 | 2 | 13 | 1/2 | 0.7 | 61x8x2 |
|
RLN-029 |
609 | 24 | 2 | 89 | 3.50 | 2 | 19 | 3/4 | 0.8 | 61x9x2 |
|
RLN-030 |
609 | 24 | 2 | 102 | 4.00 | 2 | 25 | 1 | 1.0 | 61x11x3 |
|
RLN-031 |
609 | 24 | 2 | 108 | 4.25 | 3 | 13 | 1/2 | 1.0 | 61x8x2 |
|
RLN-032 |
609 | 24 | 2 | 127 | 5.00 | 3 | 19 | 3/4 | 1.2 | 61x9x2 |
|
RLN-033 |
609 | 24 | 2 | 146 | 5.75 | 3 | 25 | 1 | 1.4 | 61x11x3 |
|
RLN-034 |
609 | 24 | 2 | 140 | 5.50 | 4 | 13 | 1/2 | 1.3 | 61x8x2 |
|
RLN-035 |
609 | 24 | 2 | 165 | 6.50 | 4 | 19 | 3/4 | 1.6 | 61x9x2 |
|
RLN-036 |
609 | 24 | 2 | 190 | 7.50 | 4 | 25 | 1 | 1.8 | 61x11x3 |
|
RLN-037 |
609 | 24 | 2 | 171 | 6.75 | 5 | 13 | 1/2 | 1.6 | 61x8x2 |
|
RLN-038 |
609 | 24 | 2 | 203 | 8.00 | 5 | 19 | 3/4 | 1.9 | 61x9x2 |
|
RLN-039 |
609 | 24 | 2 | 235 | 9.25 | 5 | 25 | 1 | 2.2 | 61x11x3 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-040 |
609 | 24 | 2 | 203 | 8.00 | 6 | 13 | 1/2 | 1.9 | 61x8x2 |
|
RLN-041 |
609 | 24 | 2 | 241 | 9.50 | 6 | 19 | 3/4 | 2.3 | 61x9x2 |
|
RLN-042 |
609 | 24 | 2 | 279 | 11.00 | 6 | 25 | 1 | 2.6 | 61x11x3 |
|
RLN-043 |
609 | 24 | 2 | 235 | 9.25 | 7 | 13 | 1/2 | 2.2 | 61x8x2 |
|
RLN-044 |
609 | 24 | 2 | 279 | 11.00 | 7 | 19 | 3/4 | 2.6 | 61x9x2 |
|
RLN-045 |
609 | 24 | 2 | 235 | 12.75 | 7 | 25 | 1 | 3.1 | 61x11x3 |
|
RLN-046 |
609 | 24 | 2 | 279 | 10.50 | 8 | 13 | 1/2 | 2.5 | 61x8x2 |
|
RLN-047 |
609 | 24 | 2 | 317 | 12.50 | 8 | 19 | 3/4 | 3.0 | 61x9x2 |
|
RLN-048 |
609 | 24 | 2 | 368 | 14.50 | 8 | 25 | 1 | 3.5 | 61x11x3 |
|
RLN-049 |
914 | 36 | 3 | 44 | 1.75 | 1 | 13 | 1/2 | 0.6 | 92x11x2 |
|
RLN-050 |
914 | 36 | 3 | 51 | 2.00 | 1 | 19 | 3/4 | 0.7 | 92x13x2 |
|
RLN-051 |
914 | 36 | 3 | 57 | 2.25 | 1 | 25 | 1 | 0.8 | 92x15x3 |
|
RLN-052 |
914 | 36 | 3 | 76 | 3.00 | 2 | 13 | 1/2 | 1.1 | 92x11x2 |
|
RLN-053 |
914 | 36 | 3 | 89 | 3.50 | 2 | 19 | 3/4 | 1.3 | 92x13x2 |
|
RLN-054 |
914 | 36 | 3 | 102 | 4.00 | 2 | 25 | 1 | 1.4 | 92x15x3 |
|
RLN-055 |
914 | 36 | 3 | 108 | 4.25 | 3 | 13 | 1/2 | 1.5 | 92x11x2 |
|
RLN-056 |
914 | 36 | 3 | 127 | 5.00 | 3 | 19 | 3/4 | 1.8 | 92x13x2 |
|
RLN-057 |
914 | 36 | 3 | 146 | 5.75 | 3 | 25 | 1 | 2.1 | 92x15x3 |
|
RLN-058 |
914 | 36 | 3 | 140 | 5.50 | 4 | 13 | 1/2 | 2.0 | 92x11x2 |
|
RLN-059 |
914 | 36 | 3 | 165 | 6.50 | 4 | 19 | 3/4 | 2.3 | 92x13x2 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-060 |
914 | 36 | 3 | 190 | 7.50 | 4 | 25 | 1 | 2.7 | 92x15x3 |
|
RLN-061 |
914 | 36 | 3 | 171 | 6.75 | 5 | 13 | 1/2 | 2.4 | 92x11x2 |
|
RLN-062 |
914 | 36 | 3 | 203 | 8.00 | 5 | 19 | 3/4 | 2.9 | 92x13x2 |
|
RLN-063 |
914 | 36 | 3 | 235 | 9.25 | 5 | 25 | 1 | 3.3 | 92x15x3 |
|
RLN-064 |
914 | 36 | 3 | 203 | 8.00 | 6 | 13 | 1/2 | 2.9 | 92x11x2 |
|
RLN-065 |
914 | 36 | 3 | 241 | 9.50 | 6 | 19 | 3/4 | 3.4 | 92x13x2 |
|
RLN-066 |
914 | 36 | 3 | 279 | 11.00 | 6 | 25 | 1 | 4.0 | 92x15x3 |
|
RLN-067 |
914 | 36 | 3 | 235 | 9.25 | 7 | 13 | 1/2 | 3.3 | 92x11x2 |
|
RLN-068 |
914 | 36 | 3 | 279 | 11.00 | 7 | 19 | 3/4 | 4.0 | 92x13x2 |
|
RLN-069 |
914 | 36 | 3 | 235 | 12.75 | 7 | 25 | 1 | 4.6 | 92x15x3 |
|
RLN-070 |
914 | 36 | 3 | 279 | 10.50 | 8 | 13 | 1/2 | 3..8 | 92x11x2 |
|
RLN-071 |
914 | 36 | 3 | 317 | 12.50 | 8 | 19 | 3/4 | 4.5 | 92x13x2 |
|
RLN-072 |
914 | 36 | 3 | 368 | 14.50 | 8 | 25 | 1 | 5.2 | 92x15x3 |
|
RLN-073 |
1219 | 48 | 4 | 44 | 1.75 | 1 | 13 | 1/2 | 0.8 | 122x15x2 |
|
RLN-074 |
1219 | 48 | 4 | 51 | 2.00 | 1 | 19 | 3/4 | 1.0 | 122x17x2 |
|
RLN-075 |
1219 | 48 | 4 | 57 | 2.25 | 1 | 25 | 1 | 1.1 | 22x20x3 |
|
RLN-076 |
1219 | 48 | 4 | 76 | 3.00 | 2 | 13 | 1/2 | 1.4 | 122x15x2 |
|
RLN-077 |
1219 | 48 | 4 | 89 | 3.50 | 2 | 19 | 3/4 | 1.7 | 122x17x2 |
|
RLN-078 |
1219 | 48 | 4 | 102 | 4.00 | 2 | 25 | 1 | 1.9 | 22x20x3 |
|
RLN-079 |
1219 | 48 | 4 | 108 | 4.25 | 3 | 13 | 1/2 | 2.0 | 122x15x2 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-080 |
1219 | 48 | 4 | 127 | 5.00 | 3 | 19 | 3/4 | 2.4 | 122x17x2 |
|
RLN-081 |
1219 | 48 | 4 | 146 | 5.75 | 3 | 25 | 1 | 2.8 | 22x20x3 |
|
RLN-082 |
1219 | 48 | 4 | 140 | 5.50 | 4 | 13 | 1/2 | 2.6 | 122x15x2 |
|
RLN-083 |
1219 | 48 | 4 | 165 | 6.50 | 4 | 19 | 3/4 | 3.1 | 122x17x2 |
|
RLN-084 |
1219 | 48 | 4 | 190 | 7.50 | 4 | 25 | 1 | 3.6 | 22x20x3 |
|
RLN-085 |
1219 | 48 | 4 | 171 | 6.75 | 5 | 13 | 1/2 | 3.2 | 122x15x2 |
|
RLN-086 |
1219 | 48 | 4 | 203 | 8.00 | 5 | 19 | 3/4 | 3.8 | 122x17x2 |
|
RLN-087 |
1219 | 48 | 4 | 235 | 9.25 | 5 | 25 | 1 | 4.4 | 22x20x3 |
|
RLN-088 |
1219 | 48 | 4 | 203 | 8.00 | 6 | 13 | 1/2 | 3.8 | 122x15x2 |
|
RLN-089 |
1219 | 48 | 4 | 241 | 9.50 | 6 | 19 | 3/4 | 4.6 | 122x17x2 |
|
RLN-090 |
1219 | 48 | 4 | 279 | 11.00 | 6 | 25 | 1 | 5.3 | 22x20x3 |
|
RLN-091 |
1219 | 48 | 4 | 235 | 9.25 | 7 | 13 | 1/2 | 4.4 | 122x15x2 |
|
RLN-092 |
1219 | 48 | 4 | 279 | 11.00 | 7 | 19 | 3/4 | 5.3 | 122x17x2 |
|
RLN-093 |
1219 | 48 | 4 | 235 | 12.75 | 7 | 25 | 1 | 6.1 | 22x20x3 |
|
RLN-094 |
1219 | 48 | 4 | 279 | 10.50 | 8 | 13 | 1/2 | 5.0 | 122x15x2 |
|
RLN-095 |
1219 | 48 | 4 | 317 | 12.50 | 8 | 19 | 3/4 | 6.0 | 122x17x2 |
|
RLN-096 |
1219 | 48 | 4 | 368 | 14.50 | 8 | 25 | 1 | 7.0 | 22x20x3 |
|
RLN-097 |
1524 | 60 | 5 | 44 | 1.75 | 1 | 13 | 1/2 | 1.1 | 153x21x2 |
|
RLN-098 |
1524 | 60 | 5 | 51 | 2.00 | 1 | 19 | 3/4 | 1.2 | 152x24x2 |
|
RLN-099 |
1524 | 60 | 5 | 57 | 2.25 | 1 | 25 | 1 | 1.4 | 152x18x3 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-100 |
1524 | 60 | 5 | 76 | 3.00 | 2 | 13 | 1/2 | 1.8 | 153x21x2 |
|
RLN-101 |
1524 | 60 | 5 | 89 | 3.50 | 2 | 19 | 3/4 | 2.1 | 152x24x2 |
|
RLN-102 |
1524 | 60 | 5 | 102 | 4.00 | 2 | 25 | 1 | 2.4 | 152x18x3 |
|
RLN-103 |
1524 | 60 | 5 | 108 | 4.25 | 3 | 13 | 1/2 | 2.6 | 153x21x2 |
|
RLN-104 |
1524 | 60 | 5 | 127 | 5.00 | 3 | 19 | 3/4 | 3.0 | 152x24x2 |
|
RLN-105 |
1524 | 60 | 5 | 146 | 5.75 | 3 | 25 | 1 | 3.5 | 152x18x3 |
|
RLN-106 |
1524 | 60 | 5 | 140 | 5.50 | 4 | 13 | 1/2 | 3.3 | 153x21x2 |
|
RLN-107 |
1524 | 60 | 5 | 165 | 6.50 | 4 | 19 | 3/4 | 3.9 | 152x24x2 |
|
RLN-108 |
1524 | 60 | 5 | 190 | 7.50 | 4 | 25 | 1 | 4.5 | 152x18x3 |
|
RLN-109 |
1524 | 60 | 5 | 171 | 6.75 | 5 | 13 | 1/2 | 4.1 | 153x21x2 |
|
RLN-110 |
1524 | 60 | 5 | 203 | 8.00 | 5 | 19 | 3/4 | 4.8 | 152x24x2 |
|
RLN-111 |
1524 | 60 | 5 | 235 | 9.25 | 5 | 25 | 1 | 5.6 | 152x18x3 |
|
RLN-112 |
1524 | 60 | 5 | 203 | 8.00 | 6 | 13 | 1/2 | 4.8 | 153x21x2 |
|
RLN-113 |
1524 | 60 | 5 | 241 | 9.50 | 6 | 19 | 3/4 | 5.7 | 152x24x2 |
|
RLN-114 |
1524 | 60 | 5 | 279 | 11.00 | 6 | 25 | 1 | 6.6 | 152x18x3 |
|
RLN-115 |
1524 | 60 | 5 | 235 | 9.25 | 7 | 13 | 1/2 | 5.6 | 153x21x2 |
|
RLN-116 |
1524 | 60 | 5 | 279 | 11.00 | 7 | 19 | 3/4 | 6.6 | 152x24x2 |
|
RLN-117 |
1524 | 60 | 5 | 235 | 12.75 | 7 | 25 | 1 | 7.7 | 152x18x3 |
|
RLN-118 |
1524 | 60 | 5 | 279 | 10.50 | 8 | 13 | 1/2 | 6.3 | 153x21x2 |
|
RLN-119 |
1524 | 60 | 5 | 317 | 12.50 | 8 | 19 | 3/4 | 7.5 | 152x24x2 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-120 |
1524 | 60 | 5 | 368 | 14.50 | 8 | 25 | 1 | 8.7 | 152x18x3 |
|
RLN-121 |
1828 | 72 | 6 | 44 | 1.75 | 1 | 13 | 1/2 | 1.3 | 183x21x2 |
|
RLN-122 |
1828 | 72 | 6 | 51 | 2.00 | 1 | 19 | 3/4 | 1.4 | 183x25x2 |
|
RLN-123 |
1828 | 72 | 6 | 57 | 2.25 | 1 | 25 | 1 | 1.6 | 183x29x3 |
|
RLN-124 |
1828 | 72 | 6 | 76 | 3.00 | 2 | 13 | 1/2 | 2.2 | 183x21x2 |
|
RLN-125 |
1828 | 72 | 6 | 89 | 3.50 | 2 | 19 | 3/4 | 2.5 | 183x25x2 |
|
RLN-126 |
1828 | 72 | 6 | 102 | 4.00 | 2 | 25 | 1 | 2.9 | 183x29x3 |
|
RLN-127 |
1828 | 72 | 6 | 108 | 4.25 | 3 | 13 | 1/2 | 3.1 | 183x21x2 |
|
RLN-128 |
1828 | 72 | 6 | 127 | 5.00 | 3 | 19 | 3/4 | 3.6 | 183x25x2 |
|
RLN-129 |
1828 | 72 | 6 | 146 | 5.75 | 3 | 25 | 1 | 4.1 | 183x29x3 |
|
RLN-130 |
1828 | 72 | 6 | 140 | 5.50 | 4 | 13 | 1/2 | 7.0 | 183x21x2 |
|
RLN-131 |
1828 | 72 | 6 | 165 | 6.50 | 4 | 19 | 3/4 | 4.7 | 183x25x2 |
|
RLN-132 |
1828 | 72 | 6 | 190 | 7.50 | 4 | 25 | 1 | 5.4 | 183x29x3 |
|
RLN-133 |
1828 | 72 | 6 | 171 | 6.75 | 5 | 13 | 1/2 | 4.9 | 183x21x2 |
|
RLN-134 |
1828 | 72 | 6 | 203 | 8.00 | 5 | 19 | 3/4 | 5.8 | 183x25x2 |
|
RLN-135 |
1828 | 72 | 6 | 235 | 9.25 | 5 | 25 | 1 | 6.7 | 183x29x3 |
|
RLN-136 |
1828 | 72 | 6 | 203 | 8.00 | 6 | 13 | 1/2 | 5.8 | 183x21x2 |
|
RLN-137 |
828 | 72 | 6 | 241 | 9.50 | 6 | 19 | 3/4 | 6.8 | 183x25x2 |
|
RLN-138 |
1828 | 72 | 6 | 279 | 11.00 | 6 | 25 | 1 | 7.9 | 183x29x3 |
|
RLN-139 |
1828 | 72 | 6 | 235 | 9.25 | 7 | 13 | 1/2 | 6.7 | 183x21x2 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-140 |
1828 | 72 | 6 | 279 | 11.00 | 7 | 19 | 3/4 | 7.9 | 183x25x2 |
|
RLN-141 |
1828 | 72 | 6 | 235 | 12.75 | 7 | 25 | 1 | 9.2 | 183x29x3 |
|
RLN-142 |
1828 | 72 | 6 | 279 | 10.50 | 8 | 13 | 1/2 | 7.6 | 183x21x2 |
|
RLN-143 |
1828 | 72 | 6 | 317 | 12.50 | 8 | 19 | 3/4 | 9.0 | 183x25x2 |
|
RLN-144 |
1828 | 72 | 6 | 368 | 14.50 | 8 | 25 | 1 | 10.4 | 183x29x3 |
|
RLN-145 |
2133 | 84 | 7 | 44 | 1.75 | 1 | 13 | 1/2 | 1.5 | 214x24x2 |
|
RLN-146 |
2133 | 84 | 7 | 51 | 2.00 | 1 | 19 | 3/4 | 1.7 | 214x81x2 |
|
RLN-147 |
2133 | 84 | 7 | 57 | 2.25 | 1 | 25 | 1 | 1.9 | 214x33x3 |
|
RLN-148 |
2133 | 84 | 7 | 76 | 3.00 | 2 | 13 | 1/2 | 2.5 | 214x24x2 |
|
RLN-149 |
2133 | 84 | 7 | 89 | 3.50 | 2 | 19 | 3/4 | 2.9 | 214x81x2 |
|
RLN-150 |
2133 | 84 | 7 | 102 | 4.00 | 2 | 25 | 1 | 3.4 | 214x33x3 |
|
RLN-151 |
2133 | 84 | 7 | 108 | 4.25 | 3 | 13 | 1/2 | 3.6 | 214x24x2 |
|
RLN-152 |
2133 | 84 | 7 | 127 | 5.00 | 3 | 19 | 3/4 | 4.2 | 214x81x2 |
|
RLN-153 |
2133 | 84 | 7 | 146 | 5.75 | 3 | 25 | 1 | 4.8 | 214x33x3 |
|
RLN-154 |
2133 | 84 | 7 | 140 | 5.50 | 4 | 13 | 1/2 | 4.6 | 214x24x2 |
|
RLN-155 |
2133 | 84 | 7 | 165 | 6.50 | 4 | 19 | 3/4 | 5.5 | 214x81x2 |
|
RLN-156 |
2133 | 84 | 7 | 190 | 7.50 | 4 | 25 | 1 | 6.3 | 214x33x3 |
|
RLN-157 |
2133 | 84 | 7 | 171 | 6.75 | 5 | 13 | 1/2 | 5.7 | 214x24x2 |
|
RLN-158 |
2133 | 84 | 7 | 203 | 8.00 | 5 | 19 | 3/4 | 6.7 | 214x81x2 |
|
RLN-159 |
2133 | 84 | 7 | 235 | 9.25 | 5 | 25 | 1 | 7.8 | 214x33x3 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-160 |
2133 | 84 | 7 | 203 | 8.00 | 6 | 13 | 1/2 | 6.7 | 214x24x2 |
|
RLN-161 |
2133 | 84 | 7 | 241 | 9.50 | 6 | 19 | 3/4 | 8.0 | 214x81x2 |
|
RLN-162 |
2133 | 84 | 7 | 279 | 11.00 | 6 | 25 | 1 | 9.2 | 214x33x3 |
|
RLN-163 |
2133 | 84 | 7 | 235 | 9.25 | 7 | 13 | 1/2 | 7.8 | 214x24x2 |
|
RLN-164 |
2133 | 84 | 7 | 279 | 11.00 | 7 | 19 | 3/4 | 9.0 | 214x81x2 |
|
RLN-165 |
2133 | 84 | 7 | 235 | 12.75 | 7 | 25 | 1 | 10.7 | 214x33x3 |
|
RLN-166 |
2133 | 84 | 7 | 279 | 10.50 | 8 | 13 | 1/2 | 8.8 | 214x24x2 |
|
RLN-167 |
2133 | 84 | 7 | 317 | 12.50 | 8 | 19 | 3/4 | 10.5 | 214x81x2 |
|
RLN-168 |
2133 | 84 | 7 | 368 | 14.50 | 8 | 25 | 1 | 12.2 | 214x33x3 |
|
RLN-169 |
2438 | 96 | 8 | 44 | 1.75 | 1 | 13 | 1/2 | 1.7 | 244x27x2 |
|
RLN-170 |
2438 | 96 | 8 | 51 | 2.00 | 1 | 19 | 3/4 | 1.9 | 244x33x2 |
|
RLN-171 |
2438 | 96 | 8 | 57 | 2.25 | 1 | 25 | 1 | 2.2 | 244x38x3 |
|
RLN-172 |
2438 | 96 | 8 | 76 | 3.00 | 2 | 13 | 1/2 | 2.9 | 244x27x2 |
|
RLN-173 |
2438 | 96 | 8 | 89 | 3.50 | 2 | 19 | 3/4 | 3.4 | 244x33x2 |
|
RLN-174 |
2438 | 96 | 8 | 102 | 4.00 | 2 | 25 | 1 | 3.8 | 244x38x3 |
|
RLN-175 |
2438 | 96 | 8 | 108 | 4.25 | 3 | 13 | 1/2 | 4.1 | 244x27x2 |
|
RLN-176 |
2438 | 96 | 8 | 127 | 5.00 | 3 | 19 | 3/4 | 4.8 | 244x33x2 |
|
RLN-177 |
2438 | 96 | 8 | 146 | 5.75 | 3 | 25 | 1 | 5.5 | 244x38x3 |
|
RLN-178 |
2438 | 96 | 8 | 140 | 5.50 | 4 | 13 | 1/2 | 5.3 | 244x27x2 |
|
RLN-179 |
2438 | 96 | 8 | 165 | 6.50 | 4 | 19 | 3/4 | 6.2 | 244x33x2 |
Clave |
Dimensiones |
Peso y Dimensiones con Empaque de Plástico. |
||||||||
| A | B | Ranuras | Kg | cm | ||||||
| mm | pulg | pies | mm | pulg | Número | Ancho | ||||
| mm | pulg | |||||||||
|
RLN-180 |
2438 | 96 | 8 | 190 | 7.50 | 4 | 25 | 1 | 7.2 | 244x38x3 |
|
RLN-181 |
2438 | 96 | 8 | 171 | 6.75 | 5 | 13 | 1/2 | 6.5 | 244x27x2 |
|
RLN-182 |
2438 | 96 | 8 | 203 | 8.00 | 5 | 19 | 3/4 | 7.7 | 244x33x2 |
|
RLN-183 |
2438 | 96 | 8 | 235 | 9.25 | 5 | 25 | 1 | 8.9 | 244x38x3 |
|
RLN-184 |
2438 | 96 | 8 | 203 | 8.00 | 6 | 13 | 1/2 | 7.7 | 244x27x2 |
|
RLN-185 |
2438 | 96 | 8 | 241 | 9.50 | 6 | 19 | 3/4 | 9.1 | 244x33x2 |
|
RLN-186 |
2438 | 96 | 8 | 279 | 11.00 | 6 | 25 | 1 | 10.6 | 244x38x3 |
|
RLN-187 |
2438 | 96 | 8 | 235 | 9.25 | 7 | 13 | 1/2 | 8.9 | 244x27x2 |
|
RLN-188 |
2438 | 96 | 8 | 279 | 11.00 | 7 | 19 | 3/4 | 10.6 | 244x33x2 |
|
RLN-189 |
2438 | 96 | 8 | 235 | 12.75 | 7 | 25 | 1 | 12.2 | 244x38x3 |
|
RLN-190 |
2438 | 96 | 8 | 279 | 10.50 | 8 | 13 | 1/2 | 10.1 | 244x27x2 |
|
RLN-191 |
2438 | 96 | 8 | 317 | 12.50 | 8 | 19 | 3/4 | 12.0 | 244x33x2 |
|
RLN-192 |
2438 | 96 | 8 | 368 | 14.50 | 8 | 25 | 1 | 13.9 | 244x38x3 |
|
| Orden
de Compra |
|
Dimensiones |
|
|
Clave | A | B | C | ||||
|
RLN-090 |
1219 | 190 | 35 | |||||
|
RLN-091 |
1219 | 140 | 35 | |||||
|
RLN-092 |
1219 | 165 | 35 | |||||
|
RLN-093 |
1219 | 190 | 35 | |||||
|
RLN-094 |
1219 | 140 | 35 | |||||
|
RLN-095 |
1219 | 165 | 35 | |||||
|
RLN-096 |
1219 | 190 | 35 | |||||
|
RLN-097 |
1524 | 171 | 35 | |||||
|
RLN-098 |
1524 | 203 | 35 | |||||
|
RLN-099 |
1524 | 235 | 35 | |||||
|
RLN-100 |
1524 | 171 | 35 | |||||
|
RLN-101 |
1524 | 203 | 35 | |||||
|
RLN-102 |
1524 | 235 | 35 | |||||
| Clave | A | B | C |
RLN-103 |
1524 | 171 | 35 | |
|
RLN-001 |
304 | 44 | 35 |
RLN-104 |
1524 | 203 | 35 | |
|
RLN-002 |
304 | 51 | 35 |
RLN-105 |
1524 | 235 | 35 | |
|
RLN-003 |
304 | 57 | 35 |
RLN-106 |
1524 | 171 | 35 | |
|
RLN-004 |
304 | 44 | 35 |
RLN-107 |
1524 | 203 | 35 | |
|
RLN-005 |
304 | 51 | 35 |
RLN-108 |
1524 | 235 | 35 | |
|
RLN-006 |
304 | 57 | 35 |
RLN-109 |
1524 | 171 | 35 | |
|
RLN-007 |
304 | 44 | 35 |
RLN-110 |
1524 | 203 | 35 | |
|
RLN-008 |
304 | 51 | 35 |
RLN-111 |
1524 | 235 | 35 | |
|
RLN-009 |
304 | 57 | 35 |
RLN-112 |
1524 | 171 | 35 | |
|
RLN-010 |
304 | 44 | 35 |
RLN-113 |
1524 | 203 | 35 | |
|
RLN-011 |
304 | 51 | 35 |
RLN-114 |
1524 | 235 | 35 | |
|
RLN-012 |
304 | 57 | 35 |
RLN-115 |
1524 | 171 | 35 | |
|
RLN-013 |
304 | 44 | 35 |
RLN-116 |
1524 | 203 | 35 | |
|
RLN-014 |
304 | 512 | 35 |
RLN-117 |
1524 | 235 | 35 | |
|
RLN-015 |
304 | 57 | 35 |
RLN-118 |
1524 | 171 | 35 | |
|
RLN-016 |
304 | 44 | 35 |
RLN-119 |
1524 | 203 | 35 | |
|
RLN-017 |
304 | 51 | 35 |
RLN-120 |
1524 | 235 | 35 | |
|
RLN-018 |
304 | 57 | 35 |
RLN-121 |
1828 | 203 | 35 | |
|
RLN-019 |
304 | 44 | 35 |
RLN-122 |
1828 | 241 | 35 | |
|
RLN-020 |
304 | 51 | 35 |
RLN-123 |
1828 | 279 | 35 | |
|
RLN-021 |
304 | 57 | 35 |
RLN-124 |
1828 | 203 | 35 | |
|
RLN-022 |
304 | 44 | 35 |
RLN-125 |
1828 | 241 | 35 | |
|
RLN-023 |
304 | 51 | 35 |
RLN-126 |
1828 | 279 | 35 | |
|
RLN-024 |
304 | 57 | 35 |
RLN-127 |
1828 | 203 | 35 | |
|
RLN-025 |
609 | 76 | 35 |
RLN-128 |
1828 | 241 | 35 | |
|
RLN-026 |
609 | 89 | 35 |
RLN-129 |
1828 | 279 | 35 | |
|
RLN-027 |
609 | 102 | 35 |
RLN-130 |
1828 | 203 | 35 | |
|
RLN-028 |
609 | 76 | 35 |
RLN-131 |
1828 | 241 | 35 | |
|
RLN-029 |
609 | 89 | 35 |
RLN-132 |
1828 | 279 | 35 | |
|
RLN-030 |
609 | 102 | 35 |
RLN-133 |
1828 | 203 | 35 | |
|
RLN-031 |
609 | 76 | 35 |
RLN-134 |
1828 | 241 | 35 | |
|
RLN-032 |
609 | 89 | 35 |
RLN-135 |
1828 | 279 | 35 | |
|
RLN-033 |
609 | 102 | 35 |
RLN-136 |
1828 | 203 | 35 | |
|
RLN-034 |
609 | 76 | 35 |
RLN-137 |
1828 | 241 | 35 | |
|
RLN-035 |
609 | 89 | 35 |
RLN-138 |
1828 | 279 | 35 | |
|
RLN-036 |
609 | 102 | 35 |
RLN-139 |
1828 | 203 | 35 | |
|
RLN-037 |
609 | 76 | 35 |
RLN-140 |
1828 | 241 | 35 | |
|
RLN-038 |
609 | 89 | 35 |
RLN-141 |
1828 | 279 | 35 | |
|
RLN-039 |
609 | 102 | 35 |
RLN-142 |
1828 | 203 | 35 | |
|
RLN-040 |
609 | 76 | 35 |
RLN-143 |
1828 | 241 | 35 | |
|
RLN-041 |
609 | 89 | 35 |
RLN-144 |
1828 | 279 | 35 | |
|
RLN-042 |
609 | 102 | 35 |
RLN-145 |
2133 | 235 | 35 | |
|
RLN-043 |
609 | 76 | 35 |
RLN-146 |
2133 | 279 | 35 | |
|
RLN-044 |
609 | 89 | 35 |
RLN-147 |
2133 | 324 | 35 | |
|
RLN-045 |
609 | 102 | 35 |
RLN-148 |
2133 | 235 | 35 | |
|
RLN-046 |
609 | 76 | 35 |
RLN-149 |
2133 | 279 | 35 | |
|
RLN-047 |
609 | 89 | 35 |
RLN-150 |
2133 | 324 | 35 | |
|
RLN-048 |
609 | 102 | 35 |
RLN-151 |
2133 | 235 | 35 | |
|
RLN-049 |
914 | 108 | 35 |
RLN-152 |
2133 | 279 | 35 | |
|
RLN-050 |
914 | 127 | 35 |
RLN-153 |
2133 | 324 | 35 | |
|
RLN-051 |
914 | 146 | 35 |
RLN-154 |
2133 | 235 | 35 | |
|
RLN-052 |
914 | 108 | 35 |
RLN-155 |
2133 | 279 | 35 | |
|
RLN-053 |
914 | 127 | 35 |
RLN-156 |
2133 | 324 | 35 | |
|
RLN-054 |
914 | 146 | 35 |
RLN-157 |
2133 | 235 | 35 | |
|
RLN-055 |
914 | 108 | 35 |
RLN-158 |
2133 | 279 | 35 | |
|
RLN-056 |
914 | 127 | 35 |
RLN-159 |
2133 | 324 | 35 | |
|
RLN-057 |
914 | 146 | 35 |
RLN-160 |
2133 | 235 | 35 | |
|
RLN-058 |
914 | 108 | 35 |
RLN-161 |
2133 | 279 | 35 | |
|
RLN-059 |
914 | 127 | 35 |
RLN-162 |
2133 | 324 | 35 | |
|
RLN-060 |
914 | 146 | 35 |
RLN-163 |
2133 | 235 | 35 | |
|
RLN-061 |
914 | 108 | 35 |
RLN-164 |
2133 | 279 | 35 | |
|
RLN-062 |
914 | 127 | 35 |
RLN-165 |
2133 | 324 | 35 | |
|
RLN-063 |
914 | 146 | 35 |
RLN-166 |
2133 | 235 | 35 | |
|
RLN-064 |
914 | 108 | 35 |
RLN-167 |
2133 | 279 | 35 | |
|
RLN-065 |
914 | 127 | 35 |
RLN-168 |
2133 | 324 | 35 | |
|
RLN-066 |
914 | 146 | 35 |
RLN-169 |
2438 | 267 | 35 | |
|
RLN-067 |
914 | 108 | 35 |
RLN-170 |
2438 | 317 | 35 | |
|
RLN-068 |
914 | 127 | 35 |
RLN-171 |
2438 | 368 | 35 | |
|
RLN-069 |
914 | 146 | 35 |
RLN-172 |
2438 | 267 | 35 | |
|
RLN-070 |
914 | 108 | 35 |
RLN-173 |
2438 | 317 | 35 | |
|
RLN-071 |
914 | 127 | 35 |
RLN-174 |
2438 | 368 | 35 | |
|
RLN-072 |
914 | 146 | 35 |
RLN-175 |
2438 | 267 | 35 | |
|
RLN-073 |
1219 | 140 | 35 |
RLN-176 |
2438 | 317 | 35 | |
|
RLN-074 |
1219 | 165 | 35 |
RLN-177 |
2438 | 368 | 35 | |
|
RLN-075 |
1219 | 190 | 35 |
RLN-178 |
2438 | 267 | 35 | |
|
RLN-076 |
1219 | 140 | 35 |
RLN-179 |
2438 | 317 | 35 | |
|
RLN-077 |
1219 | 165 | 35 |
RLN-180 |
2438 | 368 | 35 | |
|
RLN-078 |
1219 | 190 | 35 |
RLN-181 |
2438 | 267 | 35 | |
|
RLN-079 |
1219 | 140 | 35 |
RLN-182 |
2438 | 317 | 35 | |
|
RLN-080 |
1219 | 165 | 35 |
RLN-183 |
2438 | 368 | 35 | |
|
RLN-081 |
1219 | 190 | 35 |
RLN-184 |
2438 | 267 | 35 | |
|
RLN-082 |
1219 | 140 | 35 |
RLN-185 |
2438 | 317 | 35 | |
|
RLN-083 |
1219 | 165 | 35 |
RLN-186 |
2438 | 368 | 35 | |
|
RLN-084 |
1219 | 190 | 35 |
RLN-187 |
2438 | 267 | 35 | |
|
RLN-085 |
1219 | 140 | 35 |
RLN-188 |
2438 | 317 | 35 | |
|
RLN-086 |
1219 | 165 | 35 |
RLN-189 |
2438 | 368 | 35 | |
|
RLN-087 |
1219 | 190 | 35 |
RLN-190 |
2438 | 267 | 35 | |
|
RLN-088 |
1219 | 140 | 35 |
RLN-191 |
2438 | 317 | 35 | |
|
RLN-089 |
1219 | 165 | 35 |
RLN-192 |
2438 | 368 | 35 | |
|
Montaje |
|
|
Perforar
un agujero con respecto a las medias A y B del difusor, conectar ducteria
sobre el marco del TurboDifusor RetroLine. |
|
|

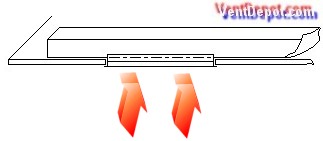

Para
instalarse sobre ducto cuadrado o rectangular de acuerdo a la dimensión del
TurboDifusor RetroLine. |
|
|

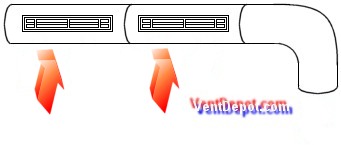

Para
instalarse a ducto redondo de acuerdo a la dimensión del TurboDifusor
RetroLine. |
|
|
Para
instalarse en tablaroca y ducto de acuerdo a la dimensión del TurboDifusor
RetroLine. |
|
|
Para
instalarse en pared y ducto de acuerdo a la dimensión del TurboDifusor
RetroLine. |
|
|
Cualidades |
|
|
|
Vista
posterior. Soportes rígidos que le dan una buena resistencia a los álabes. |
|
|
Vista
lateral, diseño altamente estético y discreto. |
|
| Inicio
|
|
|
