Equipos y Productos: TurboDifusores: DiamanBis 3 Way.

Características Generales

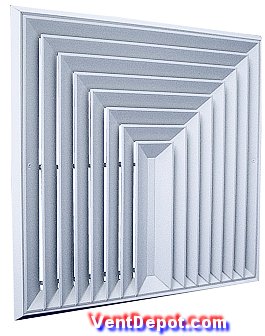

Este TurboDifusor DiamanBis 3 Way VentDepot, es de techo tipo diamante de alta capacidad.
Gran apariencia estética que armoniza con detalles arquitectónicos, especialmente en techos modulares.
Fabricada en 3 vías con difusión de aire Cuadrado, a la Altura o a la Base.
El núcleo es totalmente removible desde la vista del difusor, lo que facilita su instalación y mantenimiento.
Acabado en pintura electrostática horneada Blanco dober.
Marco Biselado.

Aplicaciones
Para uso en: Cualquier ramo industrial, comercial o residencial.

Garantía

1 (Un) año de Garantía, certificado por escrito, sujeto a las cláusulas.

Características Técnicas Específicas
Clave
Cuadrado
Difusión Alta en Base
50%
    25% 25%
Rectangular
Difusión Alta en Base
60%
20% 20%
Rectangular
Difusión Equilibrada
30%
35% 35%
Rectangular
Difusión Baja en Base
20%
40% 40%
 Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DB3-001

 152x152 6x6 --- --- --- --- --- --- 44 1 3/4 225 0.5 16x16x5

DB3-002

 --- --- 229x152 9x6 --- --- --- --- 44 1 3/4 338 0.6 23x16x5

DB3-003

 --- --- --- --- 229x12 9x6 --- --- 44 1 3/4 338 0.6 23x16x5

DB3-004

 --- --- --- --- --- --- 229x152 9x6 44 1 3/4 338 0.6 23x16x5

DB3-005

 229x229 9x9 --- --- --- --- --- --- 44 1 3/4 506 0.7 23x23x5

DB3-006

 --- --- 305x152 12x6 --- --- --- --- 44 1 3/4 450 0.8 31x15x5

DB3-007

 --- --- --- --- 305x152 12x6 --- --- 44 1 3/4 450 0.8 31x15x5

DB3-008

 --- --- --- --- --- --- 305x152 12x6 44 1 3/4 450 0.8 31x15x5

DB3-009

 --- --- 305x229 12x9 --- --- --- --- 44 1 3/4 675 0.9 31x23x5

DB3-010

 --- --- --- --- 305x229 12x9 --- --- 44 1 3/4 675 0.9 31x23x5

DB3-011

 --- --- --- --- --- --- 305x229 12x9 44 1 3/4 675 0.9 31x23x5

DB3-012

 305x305 12x12 --- --- --- --- --- --- 44 1 3/4 900 1.0 31x31x5

DB3-013

 --- --- 381x152 15x6 --- --- --- --- 44 1 3/4 563 1.1 39x16x5

DB3-014

 --- --- --- --- 381x152 15x6 --- --- 44 1 3/4 563 1.1 39x16x5

DB3-015

 --- --- --- --- --- --- 381x152 15x6 44 1 3/4 563 1.1 39x16x5

DB3-016

 --- --- 381x229 15x9 --- --- --- --- 44 1 3/4 844 1.2 39x23x5

DB3-017

 --- --- --- --- 381x229 15x9 --- --- 44 1 3/4 844 1.2 39x23x5

DB3-018

 --- --- --- --- --- --- 381x229 15x9 44 1 3/4 844 1.2 39x23x5

DB3-019

 --- --- 381x305 15x12 --- --- --- --- 44 1 3/4 1125 1.3 39x31x5

DB3-020

 --- --- --- --- 381x305 15x12 --- --- 44 1 3/4 1125 1.3 39x31x5

DB3-021

 --- --- --- --- --- --- 381x305 15x12 44 1 3/4 1125 1.3 39x31x5

DB3-022

 381x381 15x15 --- --- --- --- --- --- 44 1 3/4 1406 1.4 39x39x5

DB3-023

 --- --- 457x152 18x6 --- --- --- --- 44 1 3/4 675 1.5 46x46x5

DB3-024

 --- --- --- --- 457x152 18x6 --- --- 44 1 3/4 675 1.5 46x46x5

DB3-025

 --- --- --- --- --- --- 457x152 18x6 44 1 3/4 675 1.5 46x46x5
Clave
Cuadrado
Difusión Alta en Base
50%
    25% 25%
Rectangular
Difusión Alta en Base
60%
20% 20%
Rectangular
Difusión Equilibrada
30%
35% 35%
Rectangular
Difusión Baja en Base
20%
40% 40%
 Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DB3-026

 --- --- 457x229 18x9 --- --- --- --- 44 1 3/4 1013 1.6 46x23x5

DB3-027

 --- --- --- --- 457x229 18x9 --- --- 44 1 3/4 1013 1.6 46x23x5

DB3-028

 --- --- --- --- --- --- 457x229 18x9 44 1 3/4 1013 1.6 46x23x5

DB3-029

 --- --- 457x305 18x12 --- --- --- --- 44 1 3/4 900 1.7 46x31x5

DB3-030

 --- --- --- --- 457x305 18x12 --- --- 44 1 3/4 900 1.7 46x31x5

DB3-031

 --- --- --- --- --- --- 457x305 18x12 44 1 3/4 900 1.7 46x31x5

DB3-032

 --- --- 457x381 18x15 --- --- --- --- 44 1 3/4 1688 1.8 46x39x5

DB3-033

 --- --- --- --- 457x381 18x15 --- --- 44 1 3/4 1688 1.8 46x39x5

DB3-034

 --- --- --- --- --- --- 457x381 18x15 44 1 3/4 1688 1.8 46x39x5

DB3-035

 457x457 18x18 --- --- --- --- --- --- 44 1 3/4 2025 1.9 46x46x5

DB3-036

 --- --- 534x152 21x6 --- --- --- --- 44 1 3/4 788 2.1 54x16x5

DB3-037

 --- --- --- --- 534x152 21x6 --- --- 44 1 3/4 788 2.1 54x16x5

DB3-038

 --- --- --- --- --- --- 534x152 21x6 44 1 3/4 788 2.1 54x16x5

DB3-039

 --- --- 534x229 21x9 --- --- --- --- 44 1 3/4 900 2.2 54x23x5

DB3-040

 --- --- --- --- 534x229 21x9 --- --- 44 1 3/4 900 2.2 54x23x5

DB3-041

 --- --- --- --- --- --- 534x229 21x9 44 1 3/4 900 2.2 54x23x5

DB3-042

 --- --- 534x305 21x12 --- --- --- --- 44 1 3/4 1575 2.3 54x31x5

DB3-043

 --- --- --- --- 534x305 21x12 --- --- 44 1 3/4 1575 2.3 54x31x5

DB3-044

 --- --- --- --- --- --- 534x305 21x12 44 1 3/4 1575 2.3 54x31x5

DB3-045

 --- --- 534x381 21x15 --- --- --- --- 44 1 3/4 1969 2.4 54x39x5

DB3-046

 --- --- --- --- 534x381 21x15 --- --- 44 1 3/4 1969 2.4 54x39x5

DB3-047

 --- --- --- --- --- --- 534x381 21x15 44 1 3/4 1969 2.4 54x39x5

DB3-048

 --- --- 534x457 21x18 --- --- --- --- 44 1 3/4 2363 2.5 54x46x5

DB3-049

 --- --- --- --- 534x457 21x18 --- --- 44 1 3/4 2363 2.5 54x46x5

DB3-050

 --- --- --- --- --- --- 534x457 21x18 44 1 3/4 2363 2.5 54x46x5
Clave
Cuadrado
Difusión Alta en Base
50%
    25% 25%
Rectangular
Difusión Alta en Base
60%
20% 20%
Rectangular
Difusión Equilibrada
30%
35% 35%
Rectangular
Difusión Baja en Base
20%
40% 40%
 Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DB3-051

 534x534 21x21 --- --- --- --- --- --- 44 1 3/4 2756 2.6 54x54x5

DB3-052

 --- --- 610x152 24x6 --- --- --- --- 44 1 3/4 900 2.7 62x16x5

DB3-053

 --- --- --- --- 610x152 24x6 --- --- 44 1 3/4 900 2.7 62x16x5

DB3-054

 --- --- --- --- --- --- 610x152 24x6 44 1 3/4 900 2.7 62x16x5

DB3-055

 --- --- 610x229 24x9 --- --- --- --- 44 1 3/4 1350 2.8 62x23x5

DB3-056

 --- --- --- --- 610x229 24x9 --- --- 44 1 3/4 1350 2.8 62x23x5

DB3-057

 --- --- --- --- --- --- 610x229 24x9 44 1 3/4 1350 2.8 62x23x5

DB3-058

 --- --- 610x305 24x12 --- --- --- --- 44 1 3/4 1800 2.9 62x31x5

DB3-059

 --- --- --- --- 610x305 24x12 --- --- 44 1 3/4 1800 2.9 62x31x5

DB3-060

 --- --- --- --- --- --- 610x305 24x12 44 1 3/4 1800 2.9 62x31x5

DB3-061

 --- --- 610x381 24x15 --- --- --- --- 44 1 3/4 2250 3.0 62x39x5

DB3-062

 --- --- --- --- 610x381 24x15 --- --- 44 1 3/4 2250 3.0 62x39x5

DB3-063

 --- --- --- --- --- --- 610x381 24x15 44 1 3/4 2250 3.0 62x39x5

DB3-064

 --- --- 610x457 24x18 --- --- --- --- 44 1 3/4 2700 3.1 62x46x5

DB3-065

 --- --- --- --- 610x457 24x18 --- --- 44 1 3/4 2700 3.1 62x46x5

DB3-066

 --- --- --- --- --- --- 610x457 24x18 44 1 3/4 2700 3.1 62x46x5

DB3-067

 --- --- 610x534 24x21 --- --- --- --- 44 1 3/4 3150 3.2 62x54x5

DB3-068

 --- --- --- --- 610x534 24x21 --- --- 44 1 3/4 3150 3.2 62x54x5

DB3-069

 --- --- --- --- --- --- 610x534 24x21 44 1 3/4 3150 3.2 62x54x5

DB3-070

 610x610 24x24 --- --- --- --- --- --- 44 1 3/4 3600 3.3 62x62x5

DB3-071

 --- --- 686x152 27x6 --- --- --- --- 44 1 3/4 1013 3.4 69x16x5

DB3-072

 --- --- --- --- 686x152 27x6 --- --- 44 1 3/4 1013 3.4 69x16x5

DB3-073

 --- --- --- --- --- --- 686x152 27x6 44 1 3/4 1013 3.4 69x16x5

DB3-074

 --- --- 686x229 27x9 --- --- --- --- 44 1 3/4 1519 3.5 69x23x5

DB3-075

 --- --- --- --- 686x229 27x9 --- --- 44 1 3/4 1519 3.5 69x23x5
Clave
Cuadrado
Difusión Alta en Base
50%
    25% 25%
Rectangular
Difusión Alta en Base
60%
20% 20%
Rectangular
Difusión Equilibrada
30%
35% 35%
Rectangular
Difusión Baja en Base
20%
40% 40%
 Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DB3-076

 --- --- --- --- --- --- 686x229 27x9 44 1 3/4 1519 3.5 69x23x5

DB3-077

 --- --- 686x305 27x12 --- --- --- --- 44 1 3/4 2025 3.6 69x31x5

DB3-078

 --- --- --- --- 686x305 27x12 --- --- 44 1 3/4 2025 3.6 69x31x5

DB3-079

 --- --- --- --- --- --- 686x305 27x12 44 1 3/4 2025 3.6 69x31x5

DB3-080

 --- --- 686x381 27x15 --- --- --- --- 44 1 3/4 2532 3.7 69x39x5

DB3-081

 --- --- --- --- 686x381 27x15 --- --- 44 1 3/4 2532 3.7 69x39x5

DB3-082

 --- --- --- --- --- --- 686x381 27x15 44 1 3/4 2532 3.7 69x39x5

DB3-083

 --- --- 686x457 27x18 --- --- --- --- 44 1 3/4 3038 3.8 69x46x5

DB3-084

--- --- --- --- 686x457 27x18 --- --- 44 1 3/4 3038 3.8 69x46x5

DB3-085

--- --- --- --- --- --- 686x457 27x18 44 1 3/4 3038 3.8 69x46x5

DB3-086

 --- --- 686x534 27x21 --- --- --- --- 44 1 3/4 3544 3.9 69x54x5

DB3-087

--- --- --- --- 686x534 27x21 --- --- 44 1 3/4 3544 3.9 69x54x5

DB3-088

 --- --- --- --- --- --- 686x534 27x21 44 1 3/4 3544 3.9 69x54x5

DB3-089

--- --- 686x610 27x24 --- --- --- --- 44 1 3/4 4050 4.0 69x62x5

DB3-090

 --- --- --- --- 686x610 27x24 --- --- 44 1 3/4 4050 4.0 69x62x5

DB3-091

--- --- --- --- --- --- 686x610 27x24 44 1 3/4 4050 4.0 69x62x5

DB3-092

686x686 27x27 --- --- --- --- --- --- 44 1 3/4 4615 4.1 69x69x5

DB3-093

 --- --- 762x152 30x6 --- --- --- --- 44 1 3/4 1125 4.2 77x16x5

DB3-094

--- --- --- --- 762x152 30x6 --- --- 44 1 3/4 1125 4.2 77x16x5

DB3-095

 --- --- --- --- --- --- 762x152 30x6 44 1 3/4 1125 4.2 77x16x5

DB3-096

 --- --- 762x229 30x9 --- --- --- --- 44 1 3/4 1688 4.3 77x23x5

DB3-097

--- --- --- --- 762x229 30x9 --- --- 44 1 3/4 1688 4.3 77x23x5

DB3-098

 --- --- --- --- --- --- 762x229 30x9 44 1 3/4 1688 4.3 77x23x5

DB3-099

 --- --- 762x305 30x12 --- --- --- --- 44 1 3/4 2250 4.4 77x31x5

DB3-100

--- --- --- --- 762x305 30x12 --- --- 44 1 3/4 2250 4.4 77x31x5
Clave
Cuadrado
Difusión Alta en Base
50%
    25% 25%
Rectangular
Difusión Alta en Base
60%
20% 20%
Rectangular
Difusión Equilibrada
30%
35% 35%
Rectangular
Difusión Baja en Base
20%
40% 40%
 Fondo

Capacidad Máxima de Difusión

Peso y Dimensiones
con Empaque de Plástico
mm pulg mm pulg mm pulg mm pulg mm pulg m3/hr Kg cm

DB3-101

 --- --- --- --- --- --- 762x305 30x12 44 1 3/4 2250 4.4 77x31x5

DB3-102

 --- --- 762x381 30x15 --- --- --- --- 44 1 3/4 2813 4.5 77x39x5

DB3-103

 --- --- --- --- 762x381 30x15 --- --- 44 1 3/4 2813 4.5 77x39x5

DB3-104

--- --- --- --- --- --- 762x381 30x15 44 1 3/4 2813 4.5 77x39x5

DB3-105

--- --- 762x457 30x18 --- --- --- --- 44 1 3/4 3375 4.6 77x46x5

DB3-106

 --- --- --- --- 762x457 30x18 --- --- 44 1 3/4 3375 4.6 77x46x5

DB3-107

--- --- --- --- --- --- 762x457 30x18 44 1 3/4 3375 4.6 77x46x5

DB3-108

--- --- 762x534 30x21 --- --- --- --- 44 1 3/4 3938 4.7 77x54x5

DB3-109

 --- --- --- --- 762x534 30x21 --- --- 44 1 3/4 3938 4.7 77x54x5

DB3-110

--- --- --- --- --- --- 762x534 30x21 44 1 3/4 3938 4.7 77x54x5

DB3-111

--- --- 762x610 30x24 --- --- --- --- 44 1 3/4 4500 4.8 77x62x5

DB3-112

 --- --- --- --- 762x610 30x24 --- --- 44 1 3/4 4500 4.8 77x62x5

DB3-113

--- --- --- --- --- --- 762x610 30x24 44 1 3/4 4500 4.8 77x62x5

DB3-114

--- --- 762x686 30x27 --- --- --- --- 44 1 3/4 5063 4.9 77x69x5

DB3-115

 --- --- --- --- 762x686 30x27 --- --- 44 1 3/4 5063 4.9 77x69x5

DB3-116

--- --- --- --- --- --- 762x686 30x27 44 1 3/4 5063 4.9 77x69x5

DB3-117

--- --- 762x762 30x30 --- --- --- --- 44 1 3/4 5625 5.0 77x77x5

| Orden de Compra | Solicitar Precios | Correo y/o Asesoría Técnica | AutoCad| Tiempos de Entrega | Garantía |

Montaje
Perforar panel o tabla roca al tamaño correspondiente al difusor, conectar a difusor y descansar el TurboDifusor DiamanBis 3 Way sobre el marco.

VentDepot Team, monta, instala o da mantenimiento a cualquiera de nuestros equipos, de forma rápida, segura y conforme a las normas industriales.

Suministro y servicio a toda la República Mexicana.

Dimensiones

Clave A B C D E

DB3-052

 610 152 44 686 229

DB3-053

 610 152 44 686 229

DB3-054

 610 152 44 686 229

DB3-055

610 229 44 686 305

DB3-056

 610 229 44 686 305

DB3-057

 610 229 44 686 305

DB3-058

 610 305 44 686 381

DB3-059

 610 305 44 686 381

DB3-060

 610 305 44 686 381

DB3-061

 610 381 44 686 457

DB3-062

 610 381 44 686 457

DB3-063

 610 381 44 686 457

DB3-064

 610 457 44 686 534
Clave A B C D E

DB3-065

 610 457 44 686 534

DB3-001

 152 152 44 229 229

DB3-066

 610 457 44 686 534

DB3-002

 229 152 44 305 229

DB3-067

 610 534 44 686 610

DB3-003

 229 152 44 305 229

DB3-068

 610 534 44 686 610

DB3-004

 229 152 44 305 229

DB3-069

 610 534 44 686 610

DB3-005

 229 229 44 305 305

DB3-070

 610 610 44 686 686

DB3-006

 305 152 44 381 229

DB3-071

 686 152 44 762 229

DB3-007

 305 152 44 381 229

DB3-072

 686 152 44 762 229

DB3-008

 305 152 44 381 229

DB3-073

 686 152 44 762 229

DB3-009

 305 229 44 381 305

DB3-074

 686 229 44 762 305

DB3-010

 305 229 44 381 305

DB3-075

 686 229 44 762 305

DB3-011

 305 229 44 381 305

DB3-076

 686 229 44 762 305

DB3-012

 305 305 44 381 381

DB3-077

 686 305 44 762 381

DB3-013

 381 152 44 457 229

DB3-078

 686 305 44 762 381

DB3-014

 381 152 44 457 229

DB3-079

 686 305 44 762 381

DB3-015

 381 152 44 457 229

DB3-080

 686 381 44 762 457

DB3-016

 381 229 44 457 305

DB3-081

 686 381 44 762 457

DB3-017

 381 229 44 457 305

DB3-082

 686 381 44 762 457

DB3-018

 381 229 44 457 305

DB3-083

686 457 44 762 534

DB3-019

 381 305 44 457 381

DB3-084

 686 457 44 762 534

DB3-020

 381 305 44 457 381

DB3-085

686 457 44 762 534

DB3-021

 381 305 44 457 381

DB3-086

 686 534 44 762 610

DB3-022

 381 381 44 457 457

DB3-087

686 534 44 762 610

DB3-023

 457 152 44 534 229

DB3-088

 686 534 44 762 610

DB3-024

 457 152 44 534 229

DB3-089

686 610 44 762 686

DB3-025

 457 152 44 534 229

DB3-090

 686 610 44 762 686

DB3-026

 457 229 44 534 305

DB3-091

686 610 44 762 686

DB3-027

 457 229 44 534 305

DB3-092

686 686 44 762 762

DB3-028

 457 229 44 534 305

DB3-093

762 152 44 838 229

DB3-029

 457 305 44 534 381

DB3-094

762 152 44 838 229

DB3-030

 457 305 44 534 381

DB3-095

762 152 44 838 229

DB3-031

 457 305 44 534 381

DB3-096

762 229 44 838 305

DB3-032

 457 381 44 534 457

DB3-097

762 229 44 838 305

DB3-033

 457 381 44 534 457

DB3-098

762 229 44 838 305

DB3-034

 457 381 44 534 457

DB3-099

762 305 44 838 381

DB3-035

 457 457 44 534 534

DB3-100

 762 305 44 838 381

DB3-036

 534 152 44 610 229

DB3-101

762 305 44 838 381

DB3-037

 534 152 44 610 229

DB3-102

762 381 44 838 457

DB3-038

 534 152 44 610 229

DB3-103

762 381 44 838 457

DB3-039

 534 229 44 610 305

DB3-104

762 381 44 838 457

DB3-040

 534 229 44 610 305

DB3-105

762 457 44 838 534

DB3-041

 534 229 44 610 305

DB3-106

762 457 44 838 534

DB3-042

 534 305 44 610 381

DB3-107

762 457 44 838 534

DB3-043

 534 305 44 610 381

DB3-108

762 534 44 838 610

DB3-044

 534 305 44 610 381

DB3-109

 762 534 44 838 610

DB3-045

 534 381 44 610 457

DB3-110

 762 534 44 838 610

DB3-046

 534 381 44 610 457

DB3-111

 762 610 44 838 686

DB3-047

 534 381 44 610 457

DB3-112

 762 610 44 838 686

DB3-048

 534 457 44 610 534

DB3-113

 762 610 44 838 686

DB3-049

 534 457 44 610 534

DB3-114

 762 686 44 838 762

DB3-050

 534 457 44 610 534 DB3-115 762 686 44 838 762

DB3-051

 534 534 44 610 610 DB3-116 762 686 44 838 762
            DB3-117 762 762 44 838 838

Cualidades

Vista posterior. Soportes rígidos que le dan una buena resistencia a los álabes difusores.

Sumamente ligero y fácil de instalar, brindando un aspecto estético y funcional.

Vista lateral, diseño altamente estético y discreto.

| Inicio   |  Registrate |  Productos | Servicios | Materiales | Especiales | Precios   |  AutoCad |  Orden de Compra | Obras | Ofertas | Seminarios | La Empresa | Chat ICQo Messenger |  Correo | Información Técnica | Sitios de Interés | Otros | Lo Nuevo | Intranet | Imprimir |
CiberStats. Pincha para estadisticas.Copyright © 1996-2001, Todo en Ventilación S.A. de C.V. tiene todos los derechos reservados.
VentDepot México: (52) (55) 5822-1516. TelFax: (52) (55) 5825-0752. mexico@ventdepot.com
VentDepot Perú: (051) 445-5693. TelFax: (051) 436-7042. peru@ventdepot.com
VentDepot USA: 4336 Gessener, Houston, Texas, USA. 77041, P.O. Box. usa@ventdepot.com
