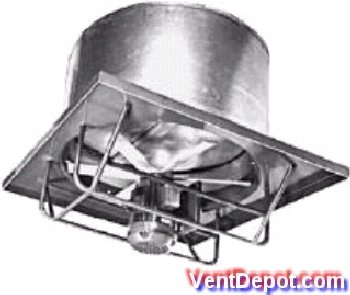

| General Characteristics of UED Series Direct Drive Roof Ventilators |
Motors are Class 1, Div. 1, Group D & Class 2, Div. 1, Groups F & G.
Used for indoor and outdoor extraction.
For industrial and commercial use.
Includes Cast aluminum blades on most of the models.
Comes with disconnect switch.
Has prefabricated curbs.
Single Phase motors are field convertible 115V/230V.
Three Phase motors are field convertible 230V/460V.
Motors set at to the lower voltage unless a request is made at time of order to set to the higher voltage.
Wind band is 18 gauge galvanized steel.
Rubber shim under dampers for better seal.
The size of the roof opening should be 6” larger than fan size.
Some of the UED Series models are available with low R.P.M. motors for quieter for quieter operation.
Products listed in this section are custom built and subject to 100% cancellation/restocking charges. |
| Product Applications of UED Series Direct Drive Roof Ventilators |
For use in Industry in general where explosive gases are located. Following these guide lines:
motors are Class 1, Div 1, Group D and Class 2, Div 1, Groups F & G.
Extracts: Heat, some explosive gasses. |
| Warranties and Guaranties of UED Series Direct Drive Roof Ventilators |
| Manufacturer's Limited Warranty: 1 Year in the USA. |
|
|
|
|
|
|
|
