United States/Axial Wall Exhaust Fans/Explosion Proof Heavy Duty Direct Drive Exhaust Fans

URL: http://www.ventdepot.com/hvac/axial_wall_fans_versaexplo_united_states_english.htm

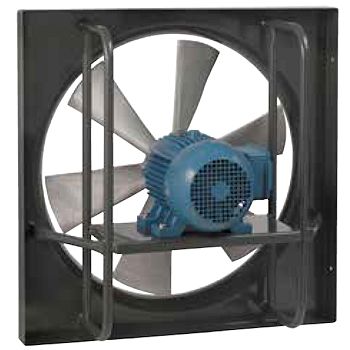

General Characteristics of EHD Series Heavy Duty Direct Drive Exhaust Fan The EHD Series is totally enclosed and explosion proof motors and are direct driven. Explosion proof motors are Class 1, Div 1 Group D and Class 2, Div 1, Groups F & G. Made for industrial and commercial industries and can operate constantly. For indoor and ventilation use. The fans are shipped completely assembled. Construction is industrial heavy duty. Made with cast aluminum blades. Comes with 14 gauge steel panel with welded steel pipe bracing. Single phase motors are field convertible 115V/230V. Three phase motors are also field convertible 230V/460V. Motors are set to lower voltage at the factory, unless a request is made at the time of order to set to the higher voltage. Note: Products listed here are custom build and subject to 100% cancellation/restocking charges. Depth dimensions vary with motor selection. Options: CES shutters, EMF front guards, IBG rear guards, acid resistant coating, reversed air flow and/or flat front venturi. All options must be specified with quote and are quoted separately. Product Applications of EHD Series Heavy Duty Direct Drive Exhaust Fan Recommended for most industrial and commercial ventilation where hot stagnant air needs to be removed and an Explosion Proof motor is required. For Indoor use. CAUTION, WARNING: Although this product is supplied with an explosion proof motor and aluminum spark arresting fan blade, it is not intended to convey the suitability of the overall finished product in an explosive atmosphere, but only that the product has been supplied with certain components for this purpose. Wiring must be in accordance with local, state and national codes and be performed by a qualified electrician. Warranty of EHD Series Heavy Duty Direct Drive Exhaust Fan Manufacturer's Limited Warranty: 1 Year.    http://www.ventdepot.net/usa/datasheets/VersaExplo.pdf

48 products in total.    View   20 50 100 500 1000 All   products per page.   Page       1 of 1   Product Description Shipping Information Delivery time Warranty VentDepot Item # Manufacturer # Base Product (W x H x D) in cm Weight lb kg Business Days Years 1.- 12"Ø, 1180CFM, 115/230V, 1/4HP, 1Ph, Explosion Proof Motor, 74dB. 18x 13x 18 46 x 33 x 46 35 16 0 to 22 1 USVSP-001 EHD12-1/4-EXP  Price $1,941.72 Discount: -33% Sale: $1,300.95 2.- 12"Ø, 1180CFM, 230/460V, 1/4HP, 3Ph, Explosion Proof Motor, 74dB. 18x 13x 18 46 x 33 x 46 35 16 0 to 22 1 USVSP-002 EHD12-1/4-3-EXP  Price $2,001.08 Discount: -33% Sale: $1,340.72 3.- 16"Ø, 2800CFM, 115/230V, 1/4HP, 1Ph, Explosion Proof Motor, 75dB. 22x 13x 22 56 x 33 x 56 45 20 0 to 22 1 USVSP-003 EHD16-1/4-EXP  Price $2,248.69 Discount: -33% Sale: $1,506.62 4.- 16"Ø, 2800CFM, 230/460V, 1/4HP, 3Ph, Explosion Proof Motor, 75dB. 22x 13x 22 56 x 33 x 56 45 20 0 to 22 1 USVSP-004 EHD16-1/4-3-EXP  Price $2,308.05 Discount: -33% Sale: $1,546.39 5.- 18"Ø, 3375CFM, 115/230V, 1/3HP, 1Ph, Explosion Proof Motor, 75dB. 26x 15x 26 66 x 38 x 66 60 27 0 to 22 1 USVSP-005 EHD18-1/3-EXP  Price $2,460.69 Discount: -33% Sale: $1,648.66 6.- 18"Ø, 3375CFM, 230/460V, 1/3HP, 3Ph, Explosion Proof Motor, 75dB. 26x 15x 26 66 x 38 x 66 60 27 0 to 22 1 USVSP-006 EHD18-1/3-3-EXP  Price $2,583.65 Discount: -33% Sale: $1,731.05 7.- 18"Ø, 4150CFM, 115/230V, 1/2HP, 1Ph, Explosion Proof Motor, 76dB. 26x 15x 26 66 x 38 x 66 60 27 0 to 22 1 USVSP-007 EHD18-1/2-EXP  Price $2,618.42 Discount: -33% Sale: $1,754.34 8.- 18"Ø, 4150CFM, 230/460V, 1/2HP, 3Ph, Explosion Proof Motor, 76dB. 26x 15x 26 66 x 38 x 66 60 27 0 to 22 1 USVSP-008 EHD18-1/2-3-EXP  Price $2,592.98 Discount: -33% Sale: $1,737.30 9.- 20"Ø, 3720CFM, 115/230V, 1/4HP, 1Ph, Explosion Proof Motor, 75dB. 26x 15x 26 66 x 38 x 66 60 27 0 to 22 1 USVSP-009 EHD20-1/4-EXP  Price $2,277.52 Discount: -33% Sale: $1,525.94 10.- 20"Ø, 3720CFM, 230/460V, 1/4HP, 3Ph, Explosion Proof Motor, 75dB. 26x 15x 26 66 x 38 x 66 60 27 0 to 22 1 USVSP-010 EHD20-1/4-3-EXP  Price $2,331.80 Discount: -33% Sale: $1,562.31 11.- 20"Ø, 4800CFM, 115/230V, 1/2HP, 1Ph, Explosion Proof Motor, 76dB. 26x 15x 26 66 x 38 x 66 65 29 0 to 22 1 USVSP-011 EHD20-1/2-EXP  Price $2,598.07 Discount: -33% Sale: $1,740.71 12.- 20"Ø, 4800CFM, 230/460V, 1/2HP, 3Ph, Explosion Proof Motor, 76dB. 26x 15x 26 66 x 38 x 66 65 29 0 to 22 1 USVSP-012 EHD20-1/2-3-EXP  Price $2,573.48 Discount: -33% Sale: $1,724.23 13.- 20"Ø, 6900CFM, 115/230V, 1HP, 1Ph, Explosion Proof Motor, 77dB. 26x 15x 26 66 x 38 x 66 70 32 0 to 22 1 USVSP-013 EHD20-1-EXP  Price $2,790.56 Discount: -33% Sale: $1,869.68 14.- 20"Ø, 6900CFM, 230/460V, 1HP, 3Ph, Explosion Proof Motor, 77dB. 26x 15x 26 66 x 38 x 66 70 32 0 to 22 1 USVSP-014 EHD20-1-3-EXP  Price $2,835.51 Discount: -33% Sale: $1,899.79 15.- 24"Ø, 5200CFM, 115/230V, 1/4HP, 1Ph, Explosion Proof Motor, 82dB. 32x 17x 32 81 x 43 x 81 135 61 0 to 22 1 USVSP-015 EHD24-1/4-EXP  Price $2,380.13 Discount: -33% Sale: $1,594.69 16.- 24"Ø, 5200CFM, 230/460V, 1/4HP, 3Ph, Explosion Proof Motor, 82dB. 32x 17x 32 81 x 43 x 81 135 61 0 to 22 1 USVSP-016 EHD24-1/4-3-EXP  Price $2,440.34 Discount: -33% Sale: $1,635.03 17.- 24"Ø, 4975CFM, 115/230V, 1/3HP, 1Ph, Explosion Proof Motor, 75dB. 32x 17x 32 81 x 43 x 81 145 66 0 to 22 1 USVSP-017 EHD24-1/3-EXP  Price $3,160.29 Discount: -33% Sale: $2,117.39 18.- 24"Ø, 4975CFM, 230/460V, 1/3HP, 3Ph, Explosion Proof Motor, 75dB. 32x 17x 32 81 x 43 x 81 145 66 0 to 22 1 USVSP-018 EHD24-1/3-3-EXP  Price $3,201.84 Discount: -33% Sale: $2,145.23 19.- 24"Ø, 6510CFM, 115/230V, 1/2HP, 1Ph, Explosion Proof Motor, 82dB. 32x 17x 32 81 x 43 x 81 140 64 0 to 22 1 USVSP-019 EHD24-1/2-EXP  Price $2,761.73 Discount: -33% Sale: $1,850.36 20.- 24"Ø, 6510CFM, 230/460V, 1/2HP, 3Ph, Explosion Proof Motor, 82dB. 32x 17x 32 81 x 43 x 81 140 64 0 to 22 1 USVSP-020 EHD24-1/2-3-EXP  Price $2,737.14 Discount: -33% Sale: $1,833.88 21.- 24"Ø, 6900CFM, 115/230V, 3/4HP, 1Ph, Explosion Proof Motor, 83dB. 32x 17x 32 81 x 43 x 81 145 66 0 to 22 1 USVSP-021 EHD24-3/4-EXP  Price $2,929.64 Discount: -33% Sale: $1,962.86 22.- 24"Ø, 6900CFM, 230/460V, 3/4HP, 3Ph, Explosion Proof Motor, 83dB. 32x 17x 32 81 x 43 x 81 145 66 0 to 22 1 USVSP-022 EHD24-3/4-3-EXP  Price $2,796.50 Discount: -33% Sale: $1,873.65 23.- 24"Ø, 7425CFM, 115/230V, 1HP, 1Ph, Explosion Proof Motor, 83dB. 32x 17x 32 81 x 43 x 81 155 70 0 to 22 1 USVSP-023 EHD24-1-EXP  Price $2,964.40 Discount: -33% Sale: $1,986.15 24.- 24"Ø, 7425CFM, 230/460V, 1HP, 3Ph, Explosion Proof Motor, 83dB. 32x 17x 32 81 x 43 x 81 155 70 0 to 22 1 USVSP-024 EHD24-1-3-EXP  Price $3,007.65 Discount: -33% Sale: $2,015.13 25.- 24"Ø, 9525CFM, 230/460V, 2HP, 3Ph, Explosion Proof Motor, 83dB. 32x 17x 32 81 x 43 x 81 165 75 0 to 22 1 USVSP-025 EHD24-2-3-EXP  Price $3,300.21 Discount: -33% Sale: $2,211.14 26.- 24"Ø, 10500CFM, 230/460V, 3HP, 3Ph, Explosion Proof Motor, 85dB. 32x 17x 32 81 x 43 x 81 170 77 0 to 22 1 USVSP-026 EHD24-3-3-EXP  Price $3,555.46 Discount: -33% Sale: $2,382.16 27.- 30"Ø, 6950CFM, 115/230V, 1/3HP, 1Ph, Explosion Proof Motor, 79dB. 38x 17x 38 97 x 43 x 97 145 66 0 to 22 1 USVSP-027 EHD30-1/3-EXP  Price $3,368.05 Discount: -33% Sale: $2,256.59 28.- 30"Ø, 6950CFM, 230/460V, 1/3HP,3Ph, Explosion Proof Motor, 79dB. 38x 17x 38 97 x 43 x 97 145 66 0 to 22 1 USVSP-028 EHD30-1/3-3-EXP  Price $3,413.84 Discount: -33% Sale: $2,287.27 29.- 30"Ø, 8980CFM, 115/230V, 1/2HP,1Ph, Explosion Proof Motor, 89dB. 38x 17x 38 97 x 43 x 97 135 61 0 to 22 1 USVSP-029 EHD30-1/2--EXP  Price $2,989.00 Discount: -33% Sale: $2,002.63 30.- 30"Ø, 8980CFM, 230/460V, 1/2HP,3Ph, Explosion Proof Motor, 89dB. 38x 17x 38 97 x 43 x 97 135 61 0 to 22 1 USVSP-030 EHD30-1/2--3-EXP  Price $2,964.40 Discount: -33% Sale: $1,986.15 31.- 30"Ø, 10440CFM, 115/230V, 3/4HP,1Ph, Explosion Proof Motor, 79dB. 38x 17x 38 97 x 43 x 97 175 79 0 to 22 1 USVSP-031 EHD30-3/4--EXP  Price $3,522.39 Discount: -33% Sale: $2,360.00 32.- 30"Ø, 10440CFM, 230/460V, 3/4HP,3Ph, Explosion Proof Motor, 79dB. 38x 17x 38 97 x 43 x 97 175 79 0 to 22 1 USVSP-032 EHD30-3/4--3-EXP  Price $3,423.17 Discount: -33% Sale: $2,293.52 33.- 30"Ø, 12000CFM, 115/230V, 1 1/2HP,1Ph, Explosion Proof Motor, 89dB. 38x 17x 38 97 x 43 x 97 165 75 0 to 22 1 USVSP-033 EHD30-1 1/2-EXP  Price $4,249.12 Discount: -33% Sale: $2,846.91 34.- 30"Ø, 12000CFM, 230/460V, 1 1/2HP,3Ph, Explosion Proof Motor, 89dB. 38x 17x 38 97 x 43 x 97 165 75 0 to 22 1 USVSP-034 EHD30-1 1/2-3-EXP  Price $3,462.18 Discount: -33% Sale: $2,319.66 35.- 30"Ø, 14000CFM, 230/460V, 2HP,3Ph, Explosion Proof Motor, 82dB. 38x 17x 38 97 x 43 x 97 215 98 0 to 22 1 USVSP-035 EHD30-2-3-EXP  Price $4,154.75 Discount: -33% Sale: $2,783.68 36.- 30"Ø, 16000CFM, 230/460V, 3HP,3Ph, Explosion Proof Motor, 89dB. 38x 17x 38 97 x 43 x 97 190 86 0 to 22 1 USVSP-036 EHD30-3-3-EXP  Price $3,694.53 Discount: -33% Sale: $2,475.34 37.- 36"Ø, 13600CFM, 115/230V, 1HP,1Ph, Explosion Proof Motor, 84dB. 44x 20x 44 112 x 51 x 112 225 102 0 to 22 1 USVSP-037 EHD36-1-EXP  Price $5,286.83 Discount: -33% Sale: $3,542.18 38.- 36"Ø, 13600CFM, 230/460V, 1HP,3Ph, Explosion Proof Motor, 84dB. 44x 20x 44 112 x 51 x 112 225 102 0 to 22 1 USVSP-038 EHD36-1-3-EXP  Price $4,235.31 Discount: -33% Sale: $2,837.66 39.- 36"Ø, 17620CFM, 230/460V, 2HP,3Ph, Explosion Proof Motor, 84dB. 44x 20x 44 112 x 51 x 112 250 113 0 to 22 1 USVSP-039 EHD36-2-3-EXP  Price $4,600.80 Discount: -33% Sale: $3,082.54 40.- 36"Ø, 20500CFM, 230/460V, 3HP,3Ph, Explosion Proof Motor, 85dB. 44x 20x 44 112 x 51 x 112 255 116 0 to 22 1 USVSP-040 EHD36-3-3-EXP  Price $5,266.48 Discount: -33% Sale: $3,528.54 41.- 36"Ø, 28000CFM, 230/460V, 5HP,3Ph, Explosion Proof Motor, 94dB. 44x 20x 44 112 x 51 x 112 250 113 0 to 22 1 USVSP-041 EHD36-5-3-EXP  Price $4,496.50 Discount: -33% Sale: $3,012.65 42.- 42"Ø, 17964CFM, 230/460V, 2HP,3Ph, Explosion Proof Motor, 88dB. 50x 20x 50 127 x 51 x 127 260 118 0 to 22 1 USVSP-042 EHD42-2-3-EXP  Price $4,817.89 Discount: -33% Sale: $3,227.99 43.- 42"Ø, 24500CFM, 230/460V, 3HP,3Ph, Explosion Proof Motor, 88dB. 50x 20x 50 127 x 51 x 127 270 122 0 to 22 1 USVSP-043 EHD42-3-3-EXP  Price $5,424.21 Discount: -33% Sale: $3,634.22 44.- 42"Ø, 28970CFM, 230/460V, 5HP,3Ph, Explosion Proof Motor, 88dB. 50x 20x 50 127 x 51 x 127 285 129 0 to 22 1 USVSP-044 EHD42-5-3-EXP  Price $6,031.38 Discount: -33% Sale: $4,041.02 45.- 48"Ø, 28600CFM, 230/460V, 3HP,3Ph, Explosion Proof Motor, 92dB. 56x 22x 56 142 x 56 x 142 290 132 0 to 22 1 USVSP-045 EHD48-3-3-EXP  Price $6,269.67 Discount: -33% Sale: $4,200.68 46.- 48"Ø, 32000CFM, 230/460V, 5HP,3Ph, Explosion Proof Motor, 94dB. 56x 22x 56 142 x 56 x 142 305 138 0 to 22 1 USVSP-046 EHD48-5-3-EXP  Price $7,019.91 Discount: -33% Sale: $4,703.34 47.- 60"Ø, 40000CFM, 230/460V, 3HP,3Ph, Explosion Proof Motor, 97dB. 68x 24x 68 173 x 61 x 173 700 318 0 to 22 1 USVSP-047 EHD60-3-3-EXP  Price $7,728.67 Discount: -33% Sale: $5,178.21 48.- 60"Ø, 45000CFM, 230/460V, 5HP,3Ph, Explosion Proof Motor, 97dB. 68x 24x 68 173 x 61 x 173 730 331 0 to 22 1 USVSP-048 EHD60-5-3-EXP  Price $8,758.15 Discount: -33% Sale: $5,867.96
