United States/Axial Wall Exhaust Fans/EHB Series Explosion Proof

URL: http://ventdepot.com/hvac/axial_wall_fans_explotronic_united_states_english.htm

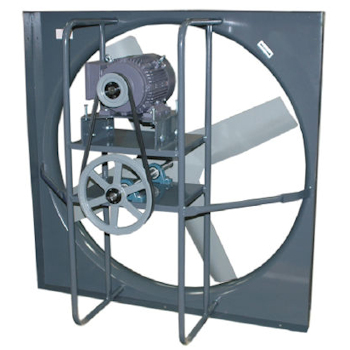

General Characteristics of EHB Series Explosion Proof Heavy Duty Belt Drive Exhaust Fan Used in industrial and commercial environments. May be used indoors only unless they have protection from the elements. The EHB Series are industrial fans designed for heavy duty use in anywhere large volumes of warm or stagnant air must be removed. The TEC models are made with heavy gauge steel blades, and the EXP (explosion proof models) are made with cast aluminum blades. Fans shipped completely assembled. Designed with a 14 gauge steel panel with welded steel pipe bracing. Totally enclosed and Explosion Proof Motors. Explosion proof motors are class1, Div 1, Group D and class 2, div 1, Groups F & G. Single motors are field convertible 115V/230V. Three phase motors are field convertible 230V/460V. For optimum shutter efficiency, mount shutter 1/3 the distance of the fan opening size. Example: 36” fan shutter would be mounted 12” from the fan blade. Some options available include: CES shutters, EMF front guards, IBG rear guards, Acid resistant coating, Reversed air flow and Flat front vanturi. All products listed in this section are custom built and subject to 100% cancellation/restocking charges. Also depth dimension may vary with motor selection. Product Applications of EHB Series Explosion Proof Heavy Duty Belt Drive Exhaust Fan For industrial and commercial use It is used to cool factories, shops, bakeries, loading docks, laundries, gymnasiums, warehouses, aircraft hangars, and virtually any place a high volume of air movement is required. For removal of warm or stagnant air. Can be used indoors or outdoors. Warranty of EHB Series Explosion Proof Heavy Duty Belt Drive Exhaust Fan Manufacturer's Limited Warranty: 1 Year.    http://www.ventdepot.net/usa/datasheets/EHB-Series.pdf    http://www.ventdepot.net/usa/intranet/EI%20External%20Information/Privacy-Policy-VentDepot-2013.pdf

61 products in total.    View   20 50 100 500 1000 All   products per page.   Page       1 of 1   Product Description Shipping Information Delivery time Warranty VentDepot Item # Manufacturer # Base Product (W x H x D) in cm Weight lb kg Business Days Years 1.- 24"Ø, 4900CFM, 115/230V, 3.0/1.5A, 1/4HP, 1Ph, Explosion Proof, 60dB 18x32x32 46 x 81 x 81 102 46 0 to 22 1 USETC-001 EHB24-1/4 EXP  Price $3,325.65 Discount: -33% Sale: $2,228.19 2.- 24"Ø, 6219CFM, 115/230V, 5.1/2.6A, 1/2HP, 1Ph, Explosion Proof, 66dB 18x32x32 46 x 81 x 81 132 60 0 to 22 1 USETC-002 EHB24-1/2 EXP  Price $3,641.11 Discount: -33% Sale: $2,439.54 3.- 24"Ø, 7090CFM, 115/230V, 7.2/3.6A, 3/4HP, 1Ph, Explosion Proof, 71dB 18x32x32 46 x 81 x 81 142 64 0 to 22 1 USETC-003 EHB24-3/4 EXP  Price $3,814.10 Discount: -33% Sale: $2,555.45 4.- 24"Ø, 7180CFM, 115/230V, 8.4/4.2A, 1HP, 1Ph, Explosion Proof, 73dB 18x32x32 46 x 81 x 81 142 64 0 to 22 1 USETC-004 EHB24-1 EXP  Price $3,853.11 Discount: -33% Sale: $2,581.58 5.- 24"Ø, 4900CFM, 115/230V, 1.6/0.8A, 1/4HP, 3Ph, Explosion Proof, 60dB 18x32x32 46 x 81 x 81 102 46 0 to 22 1 USETC-005 EHB24-1/4-3 EXP  Price $3,385.01 Discount: -33% Sale: $2,267.96 6.- 24"Ø, 6219CFM, 230/460V, 2.7/1.7A, 1/2HP, 3Ph, Explosion Proof, 66dB 18x32x32 46 x 81 x 81 132 60 0 to 22 1 USETC-006 EHB24-1/2-3 EXP  Price $3,611.43 Discount: -33% Sale: $2,419.66 7.- 24"Ø, 7090CFM, 230/460V, 3.8/1.9A, 3/4HP, 3Ph, Explosion Proof, 71dB 18x32x32 46 x 81 x 81 142 64 0 to 22 1 USETC-007 EHB24-3/4-3 EXP  Price $3,680.12 Discount: -33% Sale: $2,465.68 8.- 24"Ø, 7180CFM, 230/460V, 4.7/2.6A, 1HP, 3Ph, Explosion Proof, 73dB 18x32x32 46 x 81 x 81 142 64 0 to 22 1 USETC-008 EHB24-1-3 EXP  Price $3,902.29 Discount: -33% Sale: $2,614.53 9.- 30"Ø, 7178CFM, 115/230V, 3.0/1.5A, 1/4HP, 1Ph, Explosion Proof, 61dB 18x32x32 46 x 81 x 81 142 64 0 to 22 1 USETC-009 EHB30-1/4 EXP  Price $3,636.87 Discount: -33% Sale: $2,436.70 10.- 30"Ø, 7909CFM, 115/230V, 3.8/1.9A, 1/3HP, 1Ph, Explosion Proof, 63dB 18x32x32 46 x 81 x 81 152 69 0 to 22 1 USETC-010 EHB30-1/3 EXP  Price $3,785.27 Discount: -33% Sale: $2,536.13 11.- 30"Ø, 8507CFM, 115/230V, 5.1/2.6A, 1/2HP, 1Ph, Explosion Proof, 64dB 18x32x32 46 x 81 x 81 157 71 0 to 22 1 USETC-011 EHB30-1/2 EXP  Price $3,948.08 Discount: -33% Sale: $2,645.21 12.- 30"Ø, 10235CFM, 115/230V, 7.2/3.6A, 3/4HP, 1Ph, Explosion Proof, 66dB 18x32x32 46 x 81 x 81 167 76 0 to 22 1 USETC-012 EHB30-3/4 EXP  Price $4,174.50 Discount: -33% Sale: $2,796.91 13.- 30"Ø, 10668CFM, 115/230V, 8.4/4.2A, 1HP, 1Ph, Explosion Proof, 70dB 18x32x32 46 x 81 x 81 172 78 0 to 22 1 USETC-013 EHB30-1 EXP  Price $4,208.42 Discount: -33% Sale: $2,819.64 14.- 30"Ø, 12473CFM, 115/230V,10.0/5.0A, 1 1/2HP,1Ph, Explosion Proof, 77dB 18x32x32 46 x 81 x 81 182 83 0 to 22 1 USETC-014 EHB30-1 1/2 EXP  Price $5,259.94 Discount: -33% Sale: $3,524.16 15.- 30"Ø, 7178CFM, 230/460V, 1.6/0.8A, 1/4HP, 3Ph, Explosion Proof, 61dB 18x32x32 46 x 81 x 81 142 64 0 to 22 1 USETC-015 EHB30-1/4-3 EXP  Price $3,696.23 Discount: -33% Sale: $2,476.47 16.- 30"Ø, 7909CFM, 230/460V, 2.7/1.7A, 1/3HP, 3Ph, Explosion Proof, 63dB 18x32x32 46 x 81 x 81 152 69 0 to 22 1 USETC-016 EHB30-1/3-3 EXP  Price $3,907.38 Discount: -33% Sale: $2,617.94 17.- 30"Ø, 8507CFM, 230/460V, 3.8/1.9A, 1/2HP, 3Ph, Explosion Proof, 64dB 18x32x32 46 x 81 x 81 157 71 0 to 22 1 USETC-017 EHB30-1/2-3 EXP  Price $3,922.64 Discount: -33% Sale: $2,628.17 18.- 30"Ø, 10235CFM, 230/460V, 4.7/2.6A, 3/4HP, 3Ph, Explosion Proof, 66dB 18x32x32 46 x 81 x 81 167 76 0 to 22 1 USETC-018 EHB30-3/4-3 EXP  Price $4,040.52 Discount: -33% Sale: $2,707.15 19.- 30"Ø, 10668CFM, 230/460V, 1.6/0.8A, 1HP, 3Ph, Explosion Proof, 70dB 18x32x32 46 x 81 x 81 172 78 0 to 22 1 USETC-019 EHB30-1-3 EXP  Price $4,259.30 Discount: -33% Sale: $2,853.73 20.- 30"Ø, 12473CFM, 230/460V, 6.6/3.3A, 1 1/2HP,3Ph, Explosion Proof, 77dB 18x32x32 46 x 81 x 81 182 83 0 to 22 1 USETC-020 EHB30-1 1/2-3 EXP  Price $4,466.21 Discount: -33% Sale: $2,992.36 21.- 36"Ø, 9113CFM, 115/230V, 3.8/1.9A, 1/3HP, 1Ph, Explosion Proof, 64dB 20x44x44 51 x 112 x 112 162 73 0 to 22 1 USETC-021 EHB36-1/3 EXP  Price $4,101.57 Discount: -33% Sale: $2,748.05 22.- 36"Ø, 10500CFM, 115/230V, 5.1/2.6A, 1/2HP, 1Ph, Explosion Proof , 66dB 20x44x44 51 x 112 x 112 182 83 0 to 22 1 USETC-022 EHB36-1/2 EXP  Price $4,351.73 Discount: -33% Sale: $2,915.66 23.- 36"Ø, 11985CFM, 115/230V, 7.2/3.6A, 3/4 HP, 1Ph, Explosion Proof, 68dB 20x44x44 51 x 112 x 112 205 93 0 to 22 1 USETC-023 EHB36-3/4 EXP  Price $4,644.90 Discount: -33% Sale: $3,112.08 24.- 36"Ø, 13174CFM, 115/230V, 8.4/4.2A, 1HP, 1Ph, Explosion Proof, 70dB 20x44x44 51 x 112 x 112 205 93 0 to 22 1 USETC-024 EHB36-1 EXP  Price $4,650.83 Discount: -33% Sale: $3,116.06 25.- 36"Ø, 13660CFM, 115/230V,10.0/5.0A, 1 1/2HP,1Ph, Explosion Proof ,72dB 20x44x44 51 x 112 x 112 215 98 0 to 22 1 USETC-025 EHB36-1 1/2 EXP  Price $5,815.14 Discount: -33% Sale: $3,896.14 26.- 36"Ø, 9113CFM, 230/460V, 2.7/1.7A, 1/3HP, 3Ph, Explosion Proof, 64dB 20x44x44 51 x 112 x 112 162 73 0 to 22 1 USETC-026 EHB36-1/3-3 EXP  Price $4,224.53 Discount: -33% Sale: $2,830.44 27.- 36"Ø, 10500CFM, 230/460V, 3.8/1.9A, 1/2HP, 3Ph, Explosion Proof, 66dB 20x44x44 51 x 112 x 112 182 83 0 to 22 1 USETC-027 EHB36-1/2-3 EXP  Price $4,322.90 Discount: -33% Sale: $2,896.34 28.- 36"Ø, 11985CFM, 230/460V, 4.7/2.6A, 3/4HP, 3Ph, Explosion Proof, 68dB 20x44x44 51 x 112 x 112 205 93 0 to 22 1 USETC-028 EHB36-3/4-3 EXP  Price $4,512.61 Discount: -33% Sale: $3,023.45 29.- 36"Ø, 13174CFM, 230/460V, 1.6/0.8A, 1HP, 3Ph, Explosion Proof, 70dB 20x44x44 51 x 112 x 112 205 93 0 to 22 1 USETC-029 EHB36-1-3 EXP  Price $4,694.08 Discount: -33% Sale: $3,145.03 30.- 36"Ø, 13660CFM, 230/460V, 6.6/3.3A, 1 1/2HP,3Ph, Explosion Proof, 72dB 20x44x44 51 x 112 x 112 215 98 0 to 22 1 USETC-030 EHB36-1 1/2-3 EXP  Price $5,016.32 Discount: -33% Sale: $3,360.93 31.- 36"Ø, 16554CFM, 230/460V, 7.1/3.6A, 2HP, 3Ph, Explosion Proof, 74dB 20x44x44 51 x 112 x 112 220 100 0 to 22 1 USETC-031 EHB36-2-3 EXP  Price $5,189.31 Discount: -33% Sale: $3,476.84 32.- 42"Ø, 10614CFM, 115/230V, 3.8/1.9A, 1/3HP, 1Ph, Explosion Proof, 64dB 22x50x50 56 x 127 x 127 210 95 0 to 22 1 USETC-032 EHB42-1/3 EXP  Price $4,566.88 Discount: -33% Sale: $3,059.81 33.- 42"Ø, 12343CFM, 115/230V, 5.1/2.6A, 1/2HP, 1Ph, Explosion Proof, 65dB 22x50x50 56 x 127 x 127 215 98 0 to 22 1 USETC-033 EHB42-1/2 EXP  Price $4,714.43 Discount: -33% Sale: $3,158.67 34.- 42"Ø, 14040CFM, 115/230V, 7.2/3.6A, 3/4HP, 1Ph, Explosion Proof, 67dB 22x50x50 56 x 127 x 127 230 104 0 to 22 1 USETC-034 EHB42-3/4 EXP  Price $4,972.23 Discount: -33% Sale: $3,331.39 35.- 42"Ø, 15429CFM, 115/230V, 8.4/4.2A, 1 HP, 1Ph, Explosion Proof, 69dB 22x50x50 56 x 127 x 127 235 107 0 to 22 1 USETC-035 EHB42-1 EXP  Price $4,975.62 Discount: -33% Sale: $3,333.67 36.- 42"Ø, 17420CFM, 115/230V,10.0/5.0A, 1 1/2HP,1Ph, Explosion Proof, 71dB 22x50x50 56 x 127 x 127 254 115 0 to 22 1 USETC-036 EHB42-1 1/2 EXP  Price $6,042.40 Discount: -33% Sale: $4,048.41 37.- 42"Ø, 10614CFM, 230/460V, 2.7/1.7A, 1/3HP, 3Ph, Explosion Proof, 64dB 22x50x50 56 x 127 x 127 210 95 0 to 22 1 USETC-037 EHB42-1/3-3 EXP  Price $4,689.84 Discount: -33% Sale: $3,142.19 38.- 42"Ø, 12343CFM, 230/460V, 3.8/1.9A, 1/2HP, 3Ph, Explosion Proof, 65dB 22x50x50 56 x 127 x 127 215 98 0 to 22 1 USETC-038 EHB42-1/2-3 EXP  Price $4,694.08 Discount: -33% Sale: $3,145.03 39.- 42"Ø, 14040CFM, 230/460V, 4.7/2.6A, 3/4HP, 3Ph, Explosion Proof, 67dB 22x50x50 56 x 127 x 127 230 104 0 to 22 1 USETC-039 EHB42-3/4-3 EXP  Price $4,832.31 Discount: -33% Sale: $3,237.65 40.- 42"Ø, 15429CFM, 230/460V, 1.6/0.8A, 1HP, 3Ph, Explosion Proof, 69dB 22x50x50 56 x 127 x 127 235 107 0 to 22 1 USETC-040 EHB42-1-3 EXP  Price $5,016.32 Discount: -33% Sale: $3,360.93 41.- 42"Ø, 17420CFM, 230/460V, 6.6/3.3A, 1 1/2HP,3Ph, Explosion Proof, 71dB 22x50x50 56 x 127 x 127 254 115 0 to 22 1 USETC-041 EHB42-1-1/2-3 EXP  Price $5,242.74 Discount: -33% Sale: $3,512.64 42.- 42"Ø, 20653CFM, 230/460V, 7.1/3.6A, 2HP, 3Ph, Explosion Proof, 74dB 22x50x50 56 x 127 x 127 250 113 0 to 22 1 USETC-042 EHB42-2-3 EXP  Price $5,461.52 Discount: -33% Sale: $3,659.22 43.- 42"Ø, 23645CFM, 230/460V, 10.0/5.0A, 3HP, 3Ph, Explosion Proof, 79dB 22x50x50 56 x 127 x 127 255 116 0 to 22 1 USETC-043 EHB42-3-3 EXP  Price $5,623.49 Discount: -33% Sale: $3,767.74 44.- 48"Ø, 15230CFM, 115/230V, 5.1/2.6A, 1/2HP, 1Ph, Explosion Proof, 69dB 22x50x50 56 x 127 x 127 192 87 0 to 22 1 USETC-044 EHB48-1/2 EXP  Price $5,507.56 Discount: -33% Sale: $3,690.07 45.- 48"Ø, 17339CFM, 115/230V, 7.2/3.6A, 3/4HP, 1Ph, Explosion Proof, 70dB 23x56x56 58 x 142 x 142 197 89 0 to 22 1 USETC-045 EHB48-3/4 EXP  Price $5,929.62 Discount: -33% Sale: $3,972.85 46.- 48"Ø, 19188CFM, 115/230V, 8.4/4.2A, 1HP, 1Ph, Explosion Proof, 71dB 23x56x56 58 x 142 x 142 240 109 0 to 22 1 USETC-046 EHB48-1 EXP  Price $5,933.86 Discount: -33% Sale: $3,975.69 47.- 48"Ø, 21731CFM, 115/230V,10.0/5.0A, 1 1/2HP,1Ph, Explosion Proof ,72dB 23x56x56 58 x 142 x 142 250 113 0 to 22 1 USETC-047 EHB48-1 1/2 EXP  Price $6,991.31 Discount: -33% Sale: $4,684.18 48.- 48"Ø, 15230CFM, 230/460V, 3.8/1.9A, 1/2HP, 3Ph, Explosion Proof, 69dB 23x56x56 58 x 142 x 142 192 87 0 to 22 1 USETC-048 EHB48-1/2-3 EXP  Price $5,482.96 Discount: -33% Sale: $3,673.58 49.- 48"Ø, 17339CFM, 230/460V, 4.7/2.6A, 3/4HP, 3Ph, Explosion Proof, 70dB 23x56x56 58 x 142 x 142 197 89 0 to 22 1 USETC-049 EHB48-3/4-3 EXP  Price $5,795.63 Discount: -33% Sale: $3,883.07 Product Description Shipping Information Delivery time Warranty Stock # Manufacturer# Base Product (W x H x D) in cm Weight lb kg Business Days Years 50.- 48"Ø, 19188CFM, 230/460V, 1.6/0.8A, 1 HP, 3Ph, Explosion Proof, 71dB 23x56x56 58 x 142 x 142 240 109 0 to 22 1 USETC-050 EHB48-1-3 EXP  Price $5,983.89 Discount: -33% Sale: $4,009.21 51.- 48"Ø, 21731CFM, 230/460V, 6.6/3.3A, 1 1/2HP,3Ph, Explosion Proof, 72dB 23x56x56 58 x 142 x 142 250 113 0 to 22 1 USETC-051 EHB48-1 1/2-3 EXP  Price $6,190.80 Discount: -33% Sale: $4,147.84 52.- 48"Ø, 24274CFM, 230/460V, 7.1/3.6A, 2HP, 3Ph, Explosion Proof , 74dB 23x56x56 58 x 142 x 142 255 116 0 to 22 1 USETC-052 EHB48-2-3 EXP  Price $6,382.45 Discount: -33% Sale: $4,276.24 53.- 48"Ø, 28150CFM, 230/460V, 10.0/5.0A, 3HP, 3Ph, Explosion Proof, 80dB 23x56x56 58 x 142 x 142 275 125 0 to 22 1 USETC-053 EHB48-3-3 EXP  Price $6,562.23 Discount: -33% Sale: $4,396.69 54.- 48"Ø, 33160CFM, 230/460V, 15.9/7.9A, 5HP, 3Ph, Explosion Proof, 83dB 23x56x56 58 x 142 x 142 290 132 0 to 22 1 USETC-054 EHB48-5-3 EXP  Price $6,684.34 Discount: -33% Sale: $4,478.51 55.- 60"Ø, 23090CFM, 115/230V, 8.4/4.2A, 1HP, 1Ph, Explosion Proof, 76dB 28x68x68 71 x 173 x 173 385 175 0 to 22 1 USETC-055 EHB60-1 EXP  Price $7,984.09 Discount: -33% Sale: $5,349.34 56.- 60"Ø, 28068CFM, 115/230V,10.0/5.0A, 1 1/2HP,1Ph, Explosion Proof, 77dB 28x68x68 71 x 173 x 173 395 179 0 to 22 1 USETC-056 EHB60-1 1/2 EXP  Price $9,046.63 Discount: -33% Sale: $6,061.24 57.- 60"Ø, 23090CFM, 230/460V, 1.6/0.8A, 1HP, 3Ph, Explosion Proof, 76dB 28x68x68 71 x 173 x 173 385 175 0 to 22 1 USETC-057 EHB60-1-3 EXP  Price $8,034.12 Discount: -33% Sale: $5,382.86 58.- 60"Ø, 28068CFM, 230/460V, 6.6/3.3A, 1 1/2HP,3Ph, Explosion Proof, 77dB 28x68x68 71 x 173 x 173 395 179 0 to 22 1 USETC-058 EHB60-1 1/2 -3 EXP  Price $8,250.36 Discount: -33% Sale: $5,527.74 59.- 60"Ø, 32200CFM, 230/460V, 7.1/3.6A, 2HP, 3Ph, Explosion Proof, 78dB 28x68x68 71 x 173 x 173 400 181 0 to 22 1 USETC-059 EHB60-2-3 EXP  Price $8,359.51 Discount: -33% Sale: $5,600.87 60.- 60"Ø, 37183CFM, 230/460V, 10.0/5.0A, 3HP, 3Ph, Explosion Proof, 84dB 68x68x28 173 x 173 x 71 415 188 0 to 22 1 USETC-060 EHB60-3-3 EXP  Price $8,620.70 Discount: -33% Sale: $5,775.87 61.- 60"Ø, 44600CFM, 230/460V, 15.9/7.9A, 5HP, 3Ph, Explosion Proof, 86dB 28x68x68 71 x 173 x 173 425 193 0 to 22 1 USETC-061 EHB60-5-3 EXP  Price $8,739.42 Discount: -33% Sale: $5,855.41
